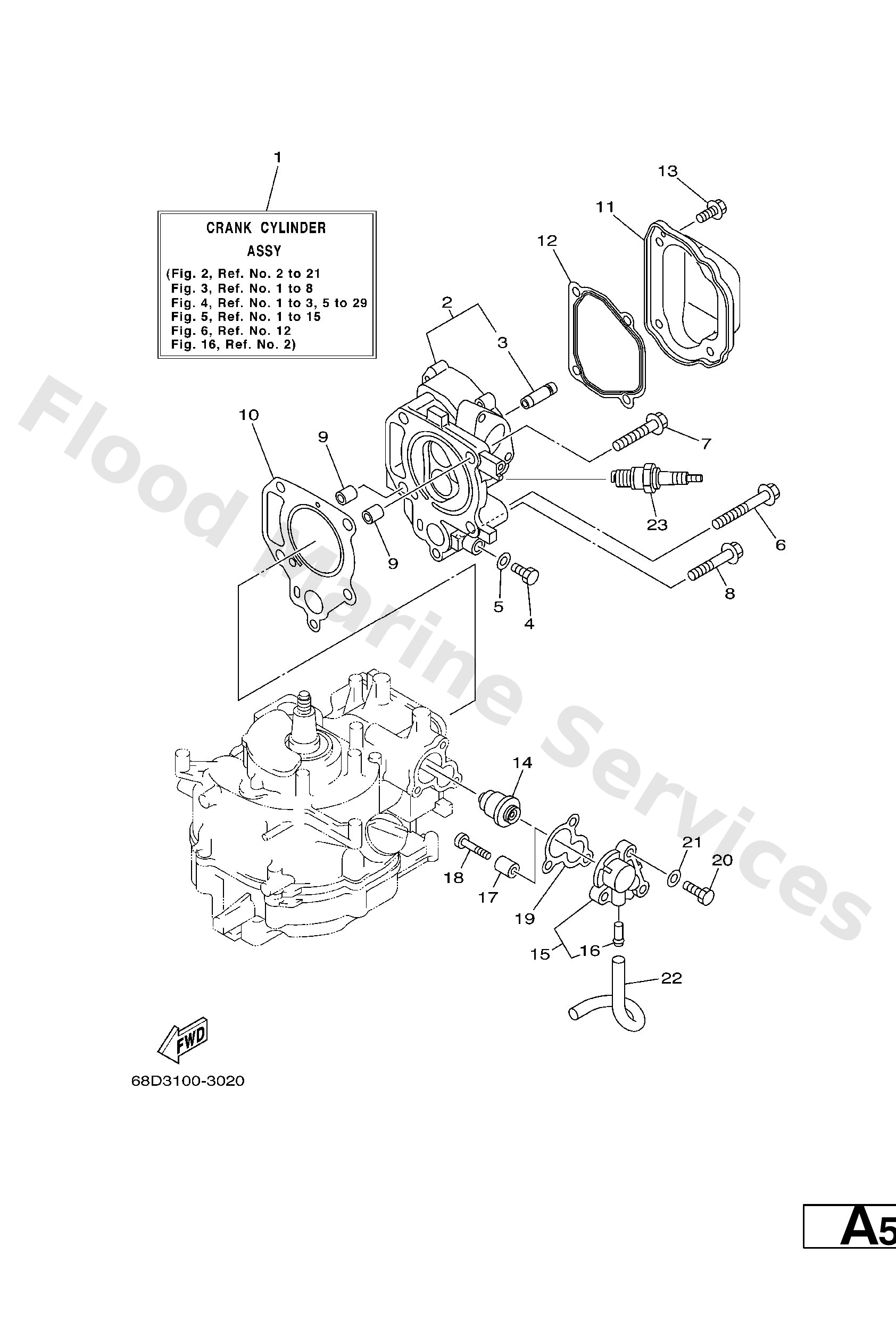

Diagram: CYLINDER. CRANKCASE 1

Diagram

Parts List

68D−E1111−10−94
Head, Cylinder 1
Diagram Reference: 2
Get Part
67D−11133−10
Guide, valve 1
Diagram Reference: 3
Get Part
97095−08014
Bolt, hexagon deep recess
Diagram Reference: 4
Get Part
90430−08800
Gasket (256-11198-00)
Diagram Reference: 5
Get Part
90105−08M36
Bolt (6g8)
Diagram Reference: 6
Get Part
90105−08046
Bolt, flange
Diagram Reference: 7
Get Part
90105−06M25
Bolt (6g1)
Diagram Reference: 8
Get Part
99510−10114
Pin, dowel(3vd)
Diagram Reference: 9
Get Part
67D−11181−A0
Gasket, cylinder head 1
Diagram Reference: 10
Get Part
67D−11191−00
Cover, cylinder head 1
Diagram Reference: 11
Get Part
68D−E1193−A0
Gasket head cover
Diagram Reference: 12
Get Part
90105−06M14
Bolt (6e0)
Diagram Reference: 13
Get Part
66M−12411−00
Thermostat
Diagram Reference: 14
Get Part
650−24378−00
Pipe, joint 2
Diagram Reference: 16
Get Part
68D−E1325−00
Anode
Diagram Reference: 17
Get Part
97880−05025
Screw, panhead (a93)
Diagram Reference: 18
Get Part
68D−E2414−A0
Gasket, cover
Diagram Reference: 19
Get Part
97095−06020
Bolt(7u8)
Diagram Reference: 20
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 21
Get Part
90445−09807
Hose (l180)
Diagram Reference: 22
Get Part
94702−00248
Plug, spark (br6hs)
Diagram Reference: 23
