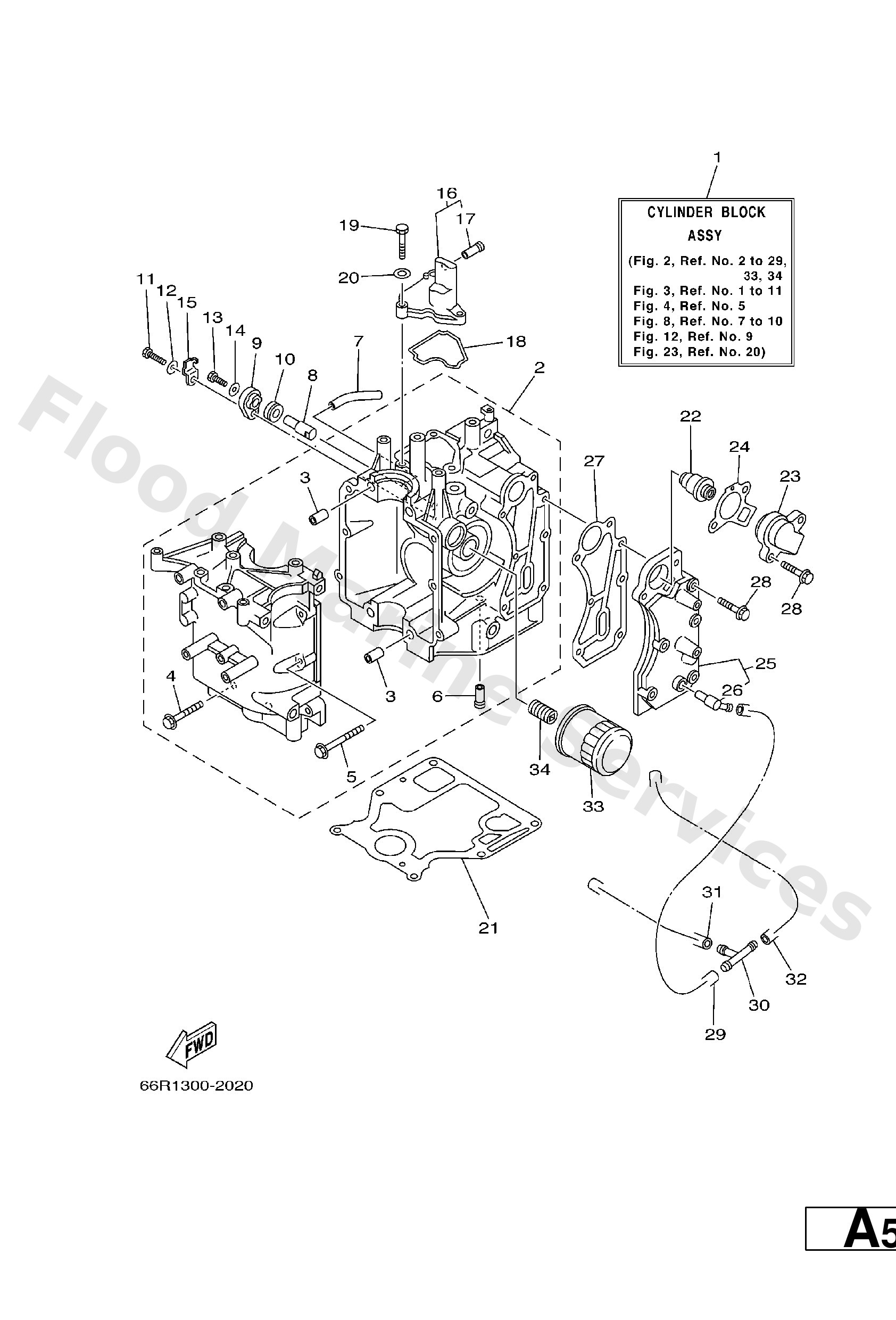

Diagram: CYLINDER. CRANKCASE 1

Diagram

Parts List

99510−10114
Pin, dowel(3vd)
Diagram Reference: 3
Get Part
90119−08M66
Bolt, with washer
Diagram Reference: 4
Get Part
90119−06M14
Bolt, with washer (677)
Diagram Reference: 5
Get Part
6E5−24377−00
Pipe, joint
Diagram Reference: 6
Get Part
90445−10M46
Hose (l200)
Diagram Reference: 7
Get Part
66M−11325−00
Anode
Diagram Reference: 8
Get Part
66M−11328−00
Grommet, anode
Diagram Reference: 10
Get Part
97095−06020
Bolt(7u8)
Diagram Reference: 11
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 12
Get Part
97095−05012
Bolt, hexagon
Diagram Reference: 13
Get Part
92995−05600
Washer, plain (646)
Diagram Reference: 14
Get Part
66M−12535−00
Plate
Diagram Reference: 15
Get Part
66M−11357−00
Seal, cylinder 3
Diagram Reference: 18
Get Part
66M−11351−00
Gasket, cylinder
Diagram Reference: 21
Get Part
66M−12411−00
Thermostat
Diagram Reference: 22
Get Part
62Y−12414−00
Gasket, cover
Diagram Reference: 24
Get Part
676−11372−00
Nipple, hose
Diagram Reference: 26
Get Part
66M−41114−00
Gasket, exhaust outer cover
Diagram Reference: 27
Get Part
90119−06MA4
Bolt, with washer
Diagram Reference: 28
Get Part
90445−09061
2−
Diagram Reference: 29
Get Part
688−24378−00
Pipe, joint
Diagram Reference: 30
Get Part
90445−09086
Hose (l1500)
Diagram Reference: 31
Get Part
90445−09105
Hose (l420)
Diagram Reference: 32
Get Part
5GH−13440−00
Element assembly, oil cleaner
Diagram Reference: 33
Get Part
90401−20M00
Bolt, union(62y)
Diagram Reference: 34
Get Part
