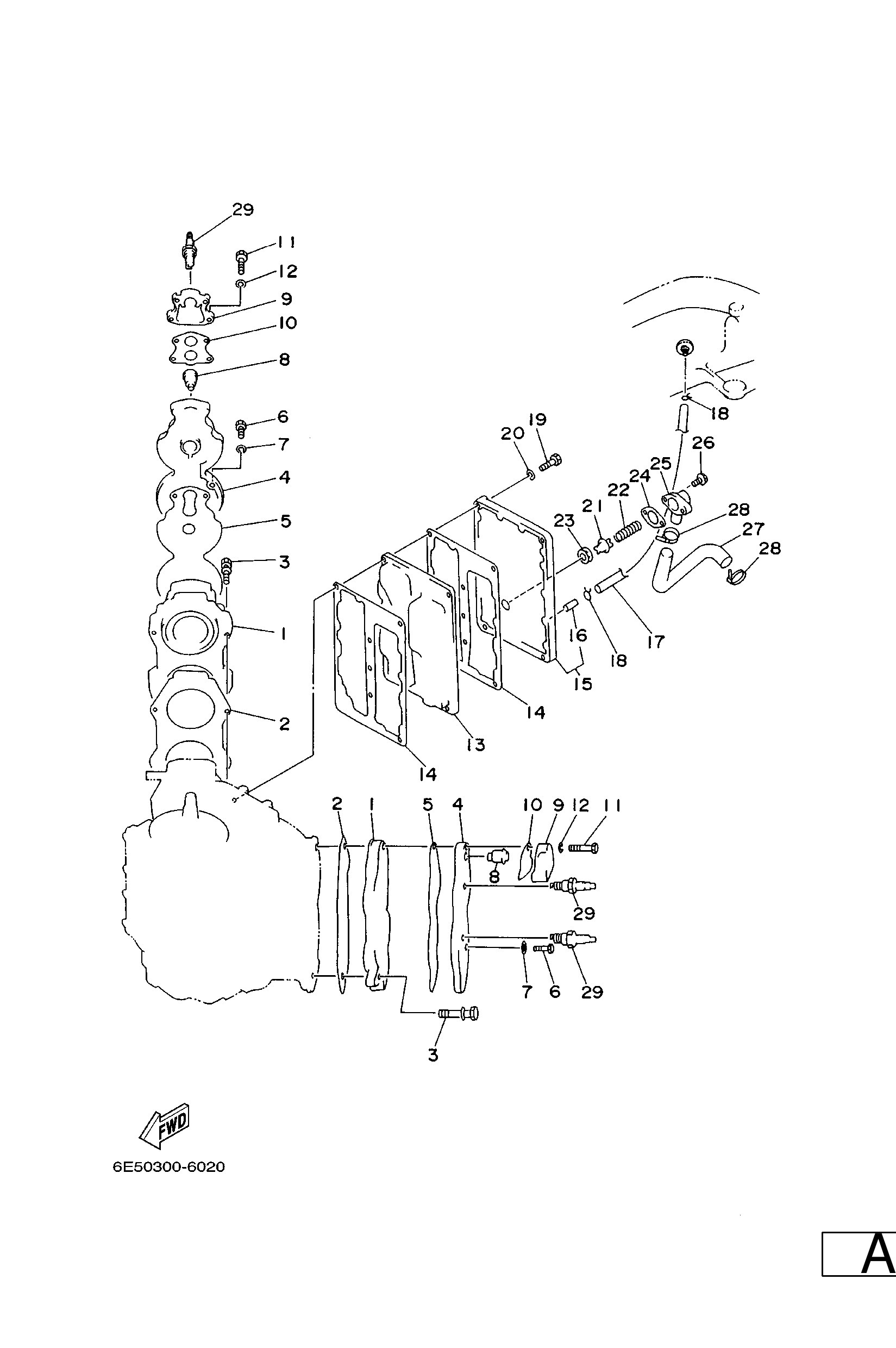

Diagram: CYLINDER. CRANKCASE 2

Diagram

Parts List

6E5111111094
Head, cylinder 1
Diagram Reference: 1
Get Part
6E511181A1
Gasket, cylinder head 1
Diagram Reference: 2
Get Part
9011908M21
Bolt, with washer(63v)
Diagram Reference: 3
Get Part
6E511191019M
Cover, cylinder head 1
Diagram Reference: 4
Get Part
6E511193A0
Gasket, head cover 1
Diagram Reference: 5
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 6
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 7
Get Part
6E51241120
Thermostat
Diagram Reference: 8
Get Part
6G512413009M
Cover, thermostat
Diagram Reference: 9
Get Part
68812414A1
Gasket, cover
Diagram Reference: 10
Get Part
9709506040
Bolt (682)
Diagram Reference: 11
Get Part
6E541111009M
Inner cover, exhaust
Diagram Reference: 13
Get Part
6E541112A1
Gasket, exhaust inner cover
Diagram Reference: 14
Get Part
6N741113009M
Outer cover, exhaust
Diagram Reference: 15
Get Part
6522446100
Pipe, joint
Diagram Reference: 16
Get Part
6E52431200
Pipe 2
Diagram Reference: 17
Get Part
9046708004
Clip, pipe 6162435600
Diagram Reference: 18
Get Part
9701406035
Bolt(3rv)
Diagram Reference: 19
Get Part
6G51241600
Valve, pressure control
Diagram Reference: 21
Get Part
9050116M11
Spring, compression (688)
Diagram Reference: 22
Get Part
9048020M05
Grommet (688)
Diagram Reference: 23
Get Part
6G511382A1
Gasket 2
Diagram Reference: 24
Get Part
6G511372005B
Cover, bypass 2
Diagram Reference: 25
Get Part
9759506520
Bolt(7u8)
Diagram Reference: 26
Get Part
6E51257600
Hose 1
Diagram Reference: 27
Get Part
9046513M36
Clamp(6h4)
Diagram Reference: 28
Get Part
9470200247
Plug, spark (br8hs-10)
Diagram Reference: 29
Get Part
