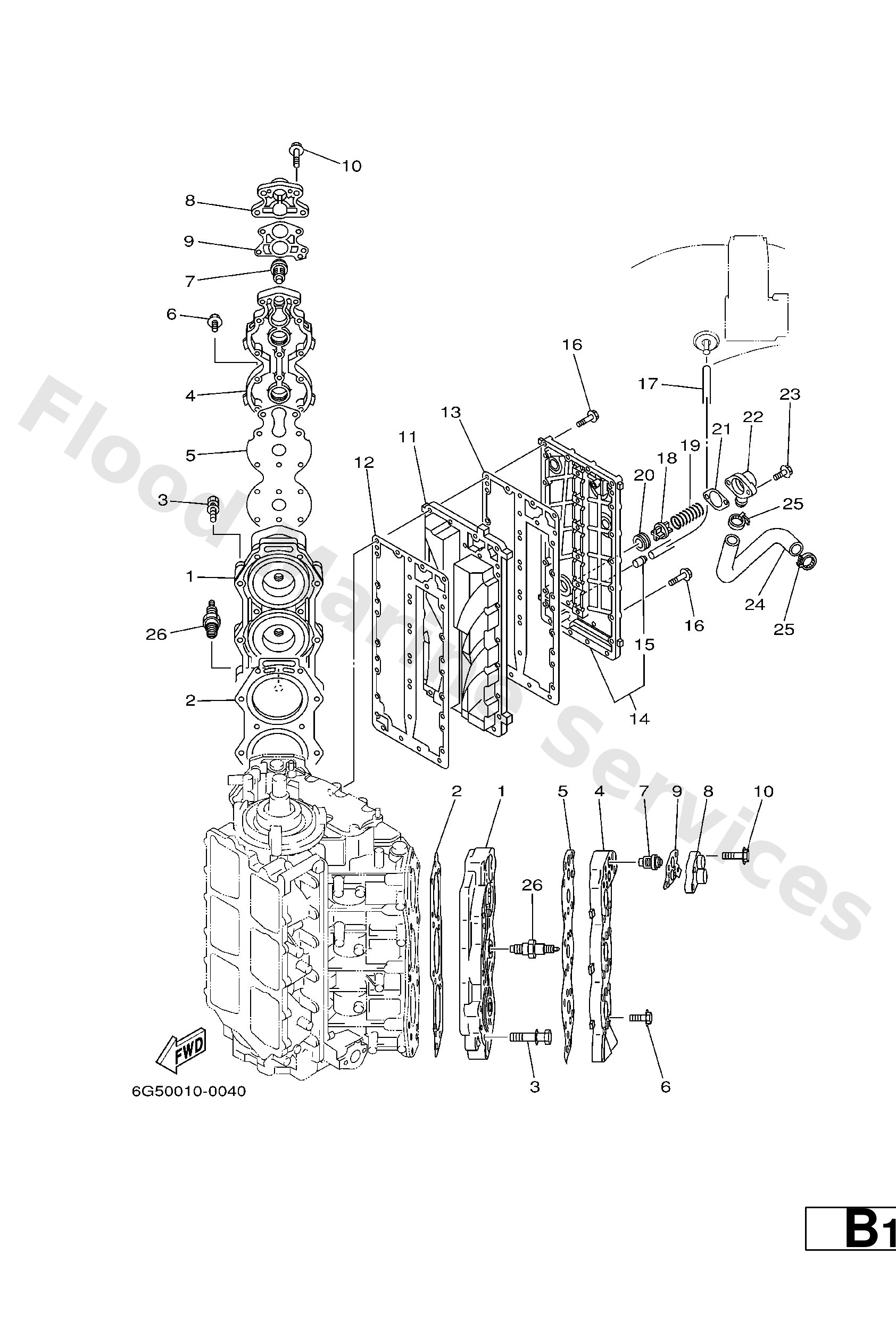

Diagram: CYLINDER. CRANKCASE 2

Diagram

Parts List

6G511111041S
Head, cylinder 1
Diagram Reference: 1
Get Part
6G511181A1
Gasket, cylinder head 1
Diagram Reference: 2
Get Part
9011908MA8
Bolt, with washer
Diagram Reference: 3
Get Part
6G511191001S
Cover, cylinder head 1
Diagram Reference: 4
Get Part
6G511193A0
Gasket, head cover 1
Diagram Reference: 5
Get Part
9011906MA4
Bolt, with washer
Diagram Reference: 6
Get Part
6E51241120
Thermostat
Diagram Reference: 7
Get Part
68812413001S
Cover, thermostat
Diagram Reference: 8
Get Part
68812414A1
Gasket, cover
Diagram Reference: 9
Get Part
9011906MA6
Bolt, with washer
Diagram Reference: 10
Get Part
64D41111001S
Inner cover, exhaust
Diagram Reference: 11
Get Part
6G541112A1
Gasket, exhaust inner cover
Diagram Reference: 12
Get Part
6R341113001S
Outer cover, exhaust
Diagram Reference: 14
Get Part
6522446100
Pipe, joint
Diagram Reference: 15
Get Part
9011906MA5
Bolt, with washer
Diagram Reference: 16
Get Part
9044509097
Hose (l1500)
Diagram Reference: 17
Get Part
6G51241600
Valve, pressure control
Diagram Reference: 18
Get Part
9050116M11
Spring, compression (688)
Diagram Reference: 19
Get Part
9048020M05
Grommet (688)
Diagram Reference: 20
Get Part
6G511382A1
Gasket 2
Diagram Reference: 21
Get Part
6G511372001S
Cover, bypass 2
Diagram Reference: 22
Get Part
9011906MA2
Bolt, with washer
Diagram Reference: 23
Get Part
6G51257600
Hose 1
Diagram Reference: 24
Get Part
9046513M18
Clamp
Diagram Reference: 25
Get Part
9470200247
Plug, spark (br8hs-10)
Diagram Reference: 26
Get Part
