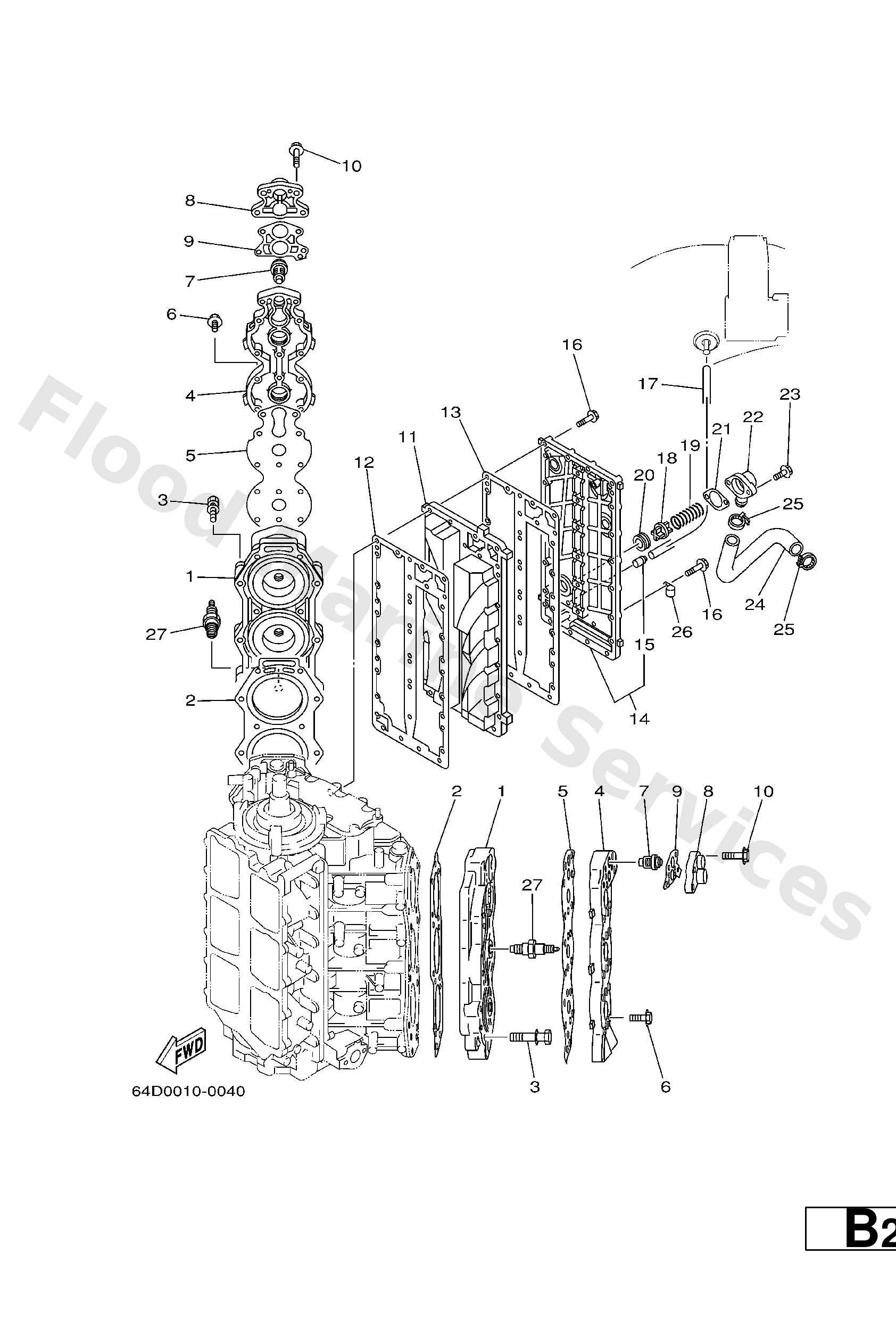

Diagram: CYLINDER. CRANKCASE 2

Diagram

Parts List

64E--11111--00--1S
Head, cylinder 1
Diagram Reference: 1
Get Part
6G5--11181--A1
Gasket, cylinder head 1
Diagram Reference: 2
Get Part
90119--08MA8
Bolt, with washer
Diagram Reference: 3
Get Part
6G5--11191--00--1S
Cover, cylinder head 1
Diagram Reference: 4
Get Part
6G5--11193--A0
Gasket, head cover 1
Diagram Reference: 5
Get Part
90119--06MA4
Bolt, with washer
Diagram Reference: 6
Get Part
6E5--12411--20
Thermostat
Diagram Reference: 7
Get Part
688--12413--00--1S
Cover, thermostat
Diagram Reference: 8
Get Part
688--12414--A1
Gasket, cover
Diagram Reference: 9
Get Part
90119--06MA6
Bolt, with washer
Diagram Reference: 10
Get Part
64D--41111--00--1S
Inner cover, exhaust
Diagram Reference: 11
Get Part
6G5--41112--A1
Gasket, exhaust inner cover
Diagram Reference: 12
Get Part
6R3--41113--00--1S
Outer cover, exhaust
Diagram Reference: 14
Get Part
650--24378--00
Pipe, joint 2
Diagram Reference: 15
Get Part
90119--06MA5
Bolt, with washer
Diagram Reference: 16
Get Part
90445--09097
Hose (l1500)
Diagram Reference: 17
Get Part
6G5--12416--00
Valve, pressure control
Diagram Reference: 18
Get Part
90501--16M11
Spring, compression (688)
Diagram Reference: 19
Get Part
90480--20M05
Grommet (688)
Diagram Reference: 20
Get Part
6G5--11382--A1
Gasket 2
Diagram Reference: 21
Get Part
6G5--11372--00--1S
Cover, bypass 2
Diagram Reference: 22
Get Part
90119--06MA2
Bolt, with washer
Diagram Reference: 23
Get Part
6G5--12576--00
Hose 1
Diagram Reference: 24
Get Part
90465--13M18
Clamp
Diagram Reference: 25
Get Part
90465--06M86
Clamp
Diagram Reference: 26
Get Part
94702--00247
Plug, spark (br8hs-10)
Diagram Reference: 27
Get Part
