F2.5AMH (2003)
CYLINDER. CRANKCASE 2

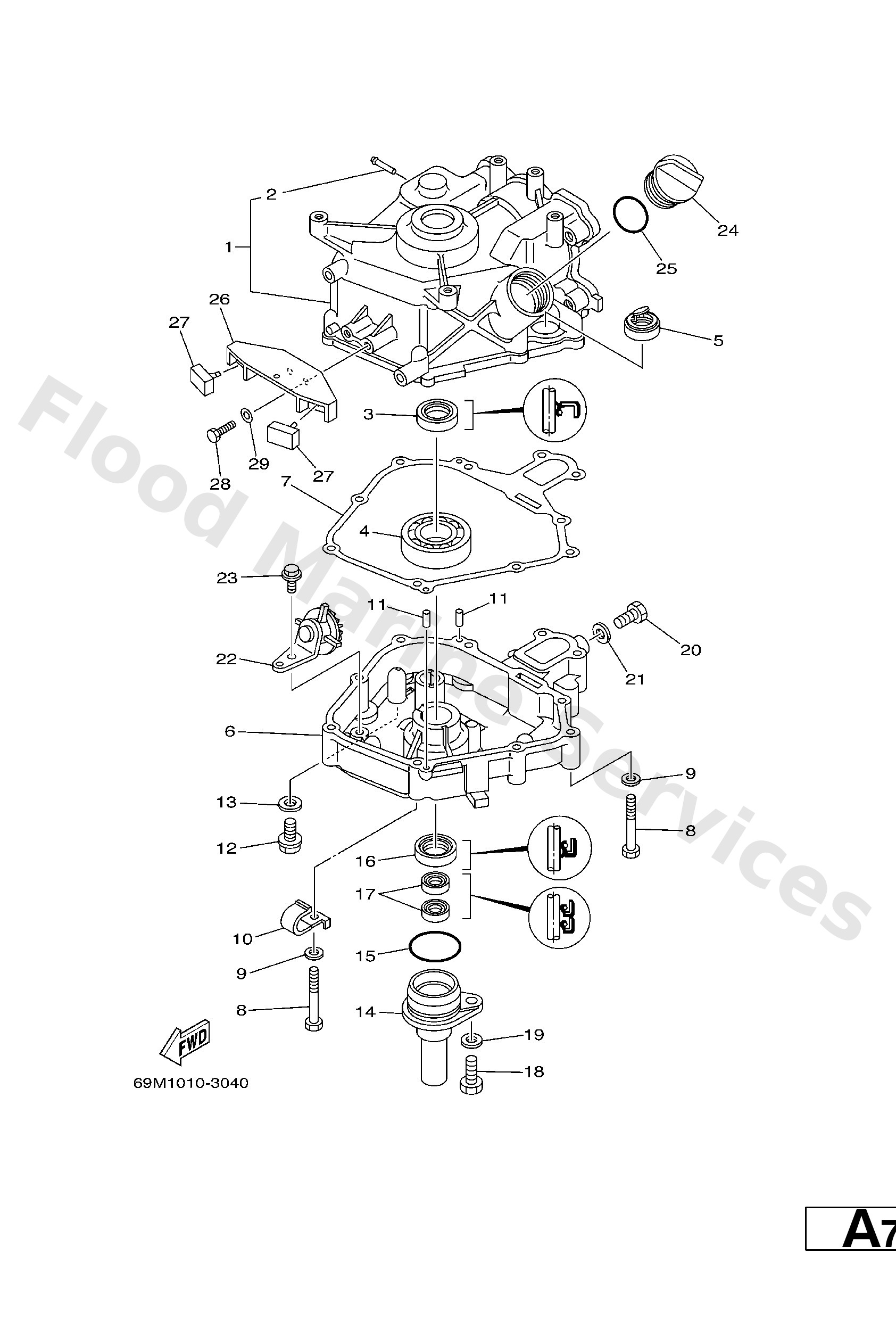

Diagram: CYLINDER. CRANKCASE 2
Parts List
Reference
Description
Price
2
6H1−14485−00
Pipe, joint
Loading…
↗
3
93102−20108
Oil seal
Loading…
↗
4
93306−272Y2
Bearing
Loading…
↗
5
69M−15361−00
Gauge, level
Loading…
↗
7
69M−11351−A0
Gasket, cylinder
Loading…
↗
8
97013−06045
Bolt, hexagon
Loading…
↗
9
92903−06600
Washer, plain (646)
Loading…
↗
10
90465−08M99
Clamp
Loading…
↗
11
93604−12M07
Pin, dowel (688)
Loading…
↗
12
90105−08M76
Bolt, washer based
Loading…
↗
13
90201−08818
Washer
Loading…
↗
15
93210−35537
O-ring
Loading…
↗
17
93102−09004
Oil seal
Loading…
↗
18
97095−08020
Bolt, hexagon
Loading…
↗
19
92995−08600
Washer, plain (663)
Loading…
↗
20
97095−08014
Bolt, hexagon deep recess
Loading…
↗
21
90430−08800
Gasket (256-11198-00)
Loading…
↗
22
69M−E3102−00
Gear unit assembly
Loading…
↗
23
95817−06012
Bolt, flange
Loading…
↗
24
69M−E5363−00
Plug, oil
Loading…
↗
25
93210−24M79
O-ring
Loading…
↗
26
69M−G2743−00
Bracket,1
Loading…
↗
27
6G8−44532−00
Stopper
Loading…
↗
28
97095−06020
Bolt(7u8)
Loading…
↗
29
92995−06600
Washer, plain (646)
Loading…
↗
