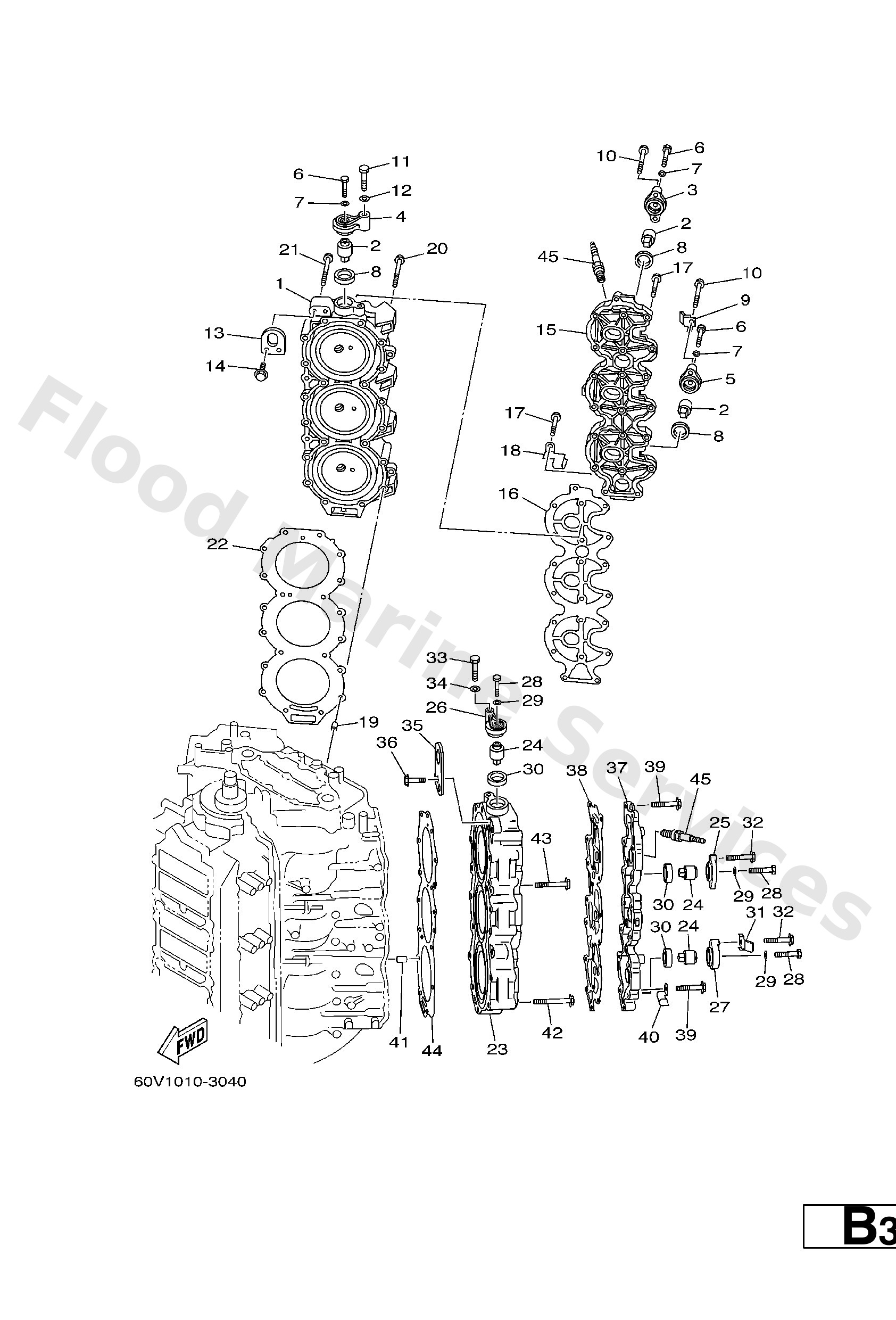

Diagram: CYLINDER. CRANKCASE 2

Diagram

Parts List

60V−11111−00−1S
Head, Cylinder 1
Diagram Reference: 1
Get Part
67F−11325−00
Anode
Diagram Reference: 2
Get Part
67F−11327−00−94
Anode cover assembly
Diagram Reference: 3
Get Part
69J−11327−00−94
Anode cover assembly
Diagram Reference: 4
Get Part
60V−11327−00−94
Anode cover assembly
Diagram Reference: 5
Get Part
97075−06020
Bolt(7u8)
Diagram Reference: 6
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 7
Get Part
67F−11328−00
Grommet, anode
Diagram Reference: 8
Get Part
60V−12535−00
Plate
Diagram Reference: 9
Get Part
97575−08545
Bolt, hexagon w/w deep recess
Diagram Reference: 10
Get Part
97075−08035
Bolt(70w)
Diagram Reference: 11
Get Part
92995−08600
Washer, plain (663)
Diagram Reference: 12
Get Part
68F−11119−00
Hanger, engine
Diagram Reference: 13
Get Part
90119−06MA2
Bolt, with washer
Diagram Reference: 14
Get Part
60V−11191−00−1S
Cover, Cylinder Head 1
Diagram Reference: 15
Get Part
60V−11193−00
Gasket, head cover 1
Diagram Reference: 16
Get Part
90119−06MA4
Bolt, with washer
Diagram Reference: 17
Get Part
68F−83919−00
Clamp, harness
Diagram Reference: 18
Get Part
99590−10114
Pin, dowel
Diagram Reference: 19
Get Part
90119−08MA5
Bolt, with washer
Diagram Reference: 20
Get Part
90119−08MA8
Bolt, with washer
Diagram Reference: 21
Get Part
60V−11181−00
Gasket, cylinder head 1
Diagram Reference: 22
Get Part
60V−11121−00−1S
Head, cylinder 2
Diagram Reference: 23
Get Part
69J−1111E−00
Hanger, engine 2
Diagram Reference: 35
Get Part
60V−11192−00−1S
Cover, cylinder head 2
Diagram Reference: 37
Get Part
94702−00405
Plug, spark (bkr6eku)
Diagram Reference: 45
Get Part
