Yamaha Outboard Parts - Carburetor - 200FETOL (2001) | Flood Marine

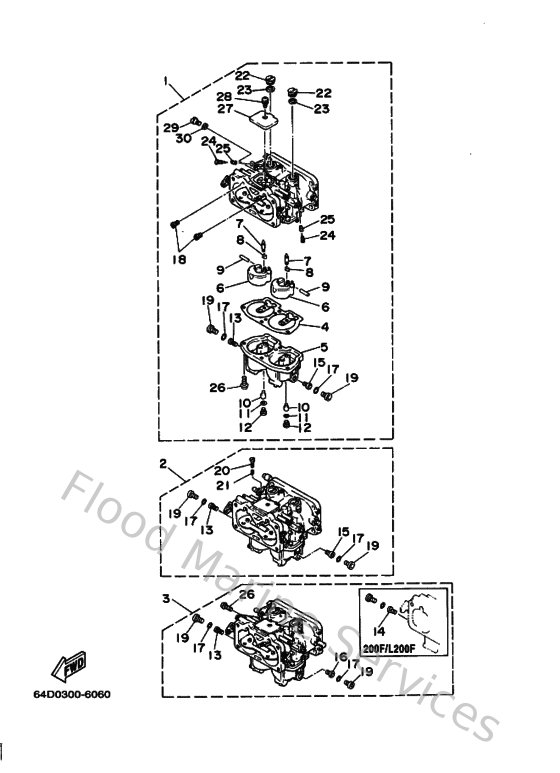

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


1
64E143010100
Carburetor assembly 1 (64e-03)
Loading…

↗
2
64E143020100
Carburetor assembly 2 (64E-03)
Loading…

↗
3
64E143030100
Carburetor assembly 3 (64E-03)
Loading…

↗
4
64D143840100
Gasket, float chamber
Loading…

↗
5
64D143810000
Body, float chamber
Loading…

↗
6
6E5143850200
Float
Loading…

↗
7
6E5145460000
Valve, needle
Loading…

↗
8
6E5141590000
Clip
Loading…

↗
9
6E5143860200
Pin, float
Loading…

↗
10
64D1492F4200
Jet, air slow
Loading…

↗
11
61U149590000
Gasket
Loading…

↗
12
64D143940000
Valve, drain
Loading…

↗
13
64D1492E7500
Jet, main
Loading…

↗
14
64D1492E7600
Jet, main
Loading…

↗
15
64D1492E7700
Jet, main
Loading…

↗
16
64D1492E7900
Jet, main
Loading…

↗
17
6E5143980100
Gasket
Loading…

↗
18
61A1492H1200
Jet, slow air (#60)
Loading…

↗
19
61A143830100
Screw, drain
Loading…

↗
20
6E5143210000
Screw, throttle
Loading…

↗
21
6J8143340000
Spring, throttle
Loading…

↗
22
6E5143280100
Plug
Loading…

↗
23
6E5149790000
Gasket
Loading…

↗
24
6E5143230300
Screw, air adjusting
Loading…

↗
25
6E5142230000
Spring, air adjusting
Loading…

↗
26
979800511600
Screw, pan head
Loading…

↗
27
6E5145270100
Plate
Loading…

↗
28
979800510800
Screw, with washer
Loading…

↗
29
6E5143240000
Screw, flat head
Loading…

↗
30
6J8149590000
Gasket, drin screw
Loading…

↗
