Yamaha Outboard Parts - Control - 50DEMTO (1989) | Flood Marine

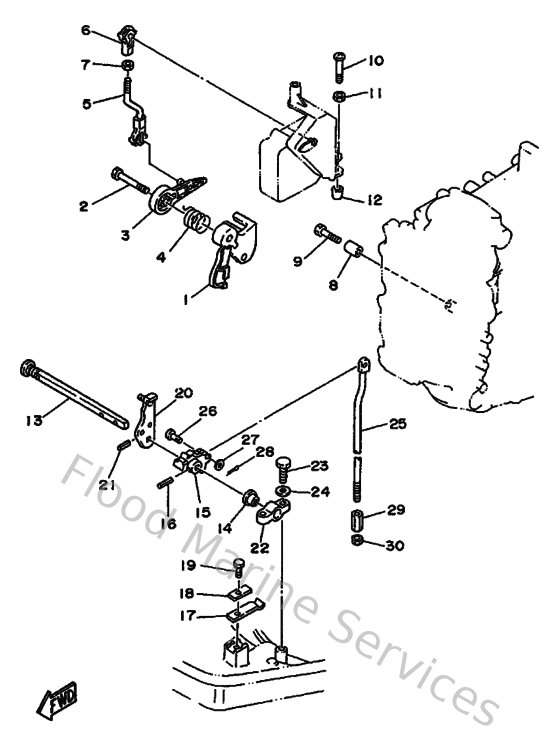

Diagram: Control

Diagram

Parts List

Reference
Description
Price


1
6H4412131400
Cam, Accel
Loading…

↗
2
9010906M4300
Bolt(6h4)
Loading…

↗
3
6H4416320100
Lever, Magneto Control
Loading…

↗
5
6G5416360100
Rod, magneto control
Loading…

↗
6
6H4412370000
Joint, link
Loading…

↗
7
953030560000
Nut, hexagon (663)
Loading…

↗
8
9038706M1900
Collar(6h4)
Loading…

↗
9
9010106M2700
Bolt
Loading…

↗
10
9015706M0000
Screw, pan head(6h4)
Loading…

↗
11
953030660000
Nut(661)
Loading…

↗
12
688441940000
Cap
Loading…

↗
13
6H4441111000
Handle, Gear Shift
Loading…

↗
14
682441320000
Bushing
Loading…

↗
15
6H4441210200
Lever, Shift Rod
Loading…

↗
16
916903031800
Pin, spring (6h3)
Loading…

↗
17
6H4441160000
Spring
Loading…

↗
18
682441170000
Bracket 1
Loading…

↗
19
970950601600
Bolt, hexagon deep recess
Loading…

↗
20
6H4441250100
Lever, Shift Rod
Loading…

↗
21
916903031600
Pin, spring
Loading…

↗
22
6F5416620000
Bracket 2
Loading…

↗
23
973130602000
Bolt(7u8)
Loading…

↗
24
929900660000
Washer, plain (646)
Loading…

↗
25
6H4441430000
Rod, Shift
Loading…

↗
26
917900502000
Pin, Clevis
Loading…

↗
27
929900560000
Washer, plain (646)
Loading…

↗
28
914901601000
Pin, cotter
Loading…

↗
29
648441460000
Connector, shift rod 2
Loading…

↗
30
901700702100
Nut hexagon 648441280000
Loading…

↗
