Yamaha Outboard Parts - Control - FT25BE (2001) | Flood Marine

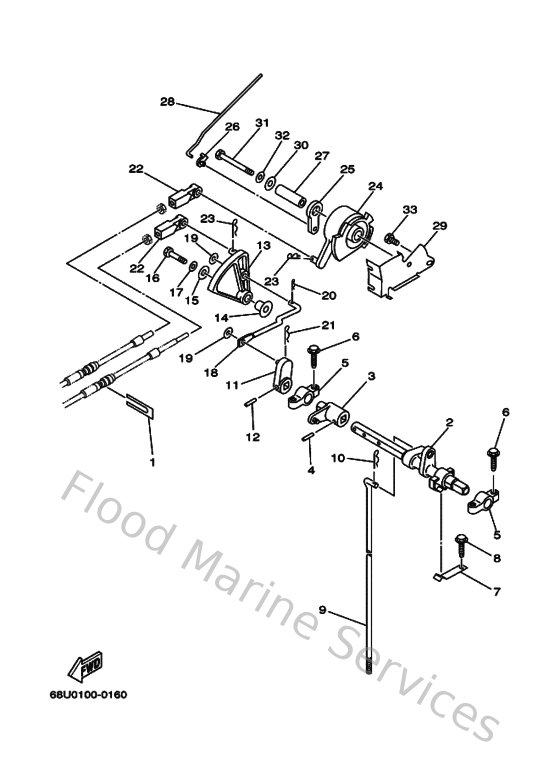

Diagram: Control

Diagram

Parts List

Reference
Description
Price


1
6H3485380000
Clamp, cable
Loading…

↗
2
65W441210000
Lever, shift rod
Loading…

↗
3
65W441220000
Bushing, Shift Rod Lever
Loading…

↗
4
9025403M0500
Pin, spring
Loading…

↗
5
6F5416620000
Bracket 2
Loading…

↗
6
9010906M8100
Bolt
Loading…

↗
7
65W441160000
Spring
Loading…

↗
8
9010906M8600
Bolt
Loading…

↗
9
68U441431000
Rod, shift
Loading…

↗
10
904681800800
Clip 620436610000
Loading…

↗
11
65W441420000
Joint
Loading…

↗
13
68U441250000
Lever Shift Rod
Loading…

↗
14
9038706M2900
Coller (6a0)
Loading…

↗
15
9020106M3100
Washer (6a0)
Loading…

↗
16
970950602500
Bolt
Loading…

↗
17
929950660000
Washer, plain (646)
Loading…

↗
18
65W441920000
Joint, rod 1
Loading…

↗
19
9020105M0600
Washer, plate(61u)
Loading…

↗
20
904681000500
Pin, hair 6264123500
Loading…

↗
22
663483440000
Cable end, remote control
Loading…

↗
24
68U416380000
Pulley
Loading…

↗
25
65W412830000
Lever, free accel.
Loading…

↗
26
661412620200
Joint, choke lever
Loading…

↗
27
903870606400
Collar
Loading…

↗
28
65W412110000
Link Accel.
Loading…

↗
29
65W144970100
Stay, Throttle Wire
Loading…

↗
31
975950655500
Bolt, hexagon w/w deep recess
Loading…

↗
33
970950601000
Bolt
Loading…

↗
