20CMH (1998)
Controller 1

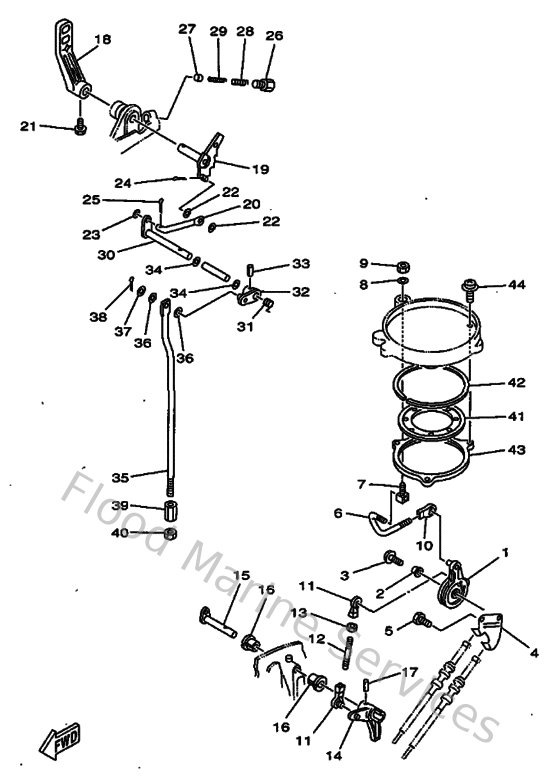

Diagram: Controller 1
Parts List
Reference
Description
Price
1
664416310094
Lever, magneto control
Loading…
↗
2
9038706M0200
Collar (664)
Loading…
↗
3
9011906M4900
Bolt, with washer
Loading…
↗
4
664144970000
Stay Throttle Wire
Loading…
↗
5
970800601200
Bolt(gh1)
Loading…
↗
6
664416360000
Rod, Magneto Control
Loading…
↗
7
648416350000
Shaft, Link Connecting
Loading…
↗
8
902010555600
Washer plate (664)
Loading…
↗
9
953800560000
Nut, hexagon (663)
Loading…
↗
10
6H1412370000
Joint, link
Loading…
↗
12
901160522000
Bolt, Stud
Loading…
↗
14
6A9421540094
Lever Throttle Control
Loading…
↗
15
656421530094
Shaft, throttle control
Loading…
↗
16
903861000900
Bushing 6484418600
Loading…
↗
17
916904001800
Pin spring(664)
Loading…
↗
18
68944111014D
Handle, gear shift
Loading…
↗
19
664441130100
Cam plate, handle
Loading…
↗
20
664441420000
Joint
Loading…
↗
21
9010506M0700
Bolt (689)
Loading…
↗
22
902020600700
Washer plate 626441880000
Loading…
↗
23
929900560000
Washer, plain (646)
Loading…
↗
24
914901601000
Pin, cotter
Loading…
↗
25
914901201200
Pin, cotter (6g8)
Loading…
↗
26
664427150000
Bushing 2
Loading…
↗
27
664441670000
Plunger, shift cam
Loading…
↗
28
9050114M0700
Spring, compresion (664)
Loading…
↗
29
9050109M0800
Spring, compresion (664)
Loading…
↗
30
689441210100
Lever, shift rod 1
Loading…
↗
31
9050814M1300
Spring (689)
Loading…
↗
32
689441250000
Lever, shift rod 2
Loading…
↗
33
916904001600
Pin, spring (648)
Loading…
↗
34
902021002400
Washer plate 648441880000
Loading…
↗
35
6G0441430000
Rod, shift
Loading…
↗
38
914902001000
Pin, cotter
Loading…
↗
39
648441460000
Connector, shift rod 2
Loading…
↗
40
901700702100
Nut hexagon 648441280000
Loading…
↗
41
695416120000
Retainer, Magneto Base
Loading…
↗
42
695416130000
Plate, base friction
Loading…
↗
43
695416110094
Retainer, Magneto Base
Loading…
↗
44
979850521000
Screw, With Washer
Loading…
↗
