Yamaha Outboard Parts - Crankshaft & Piston - F50AE (1998) | Flood Marine

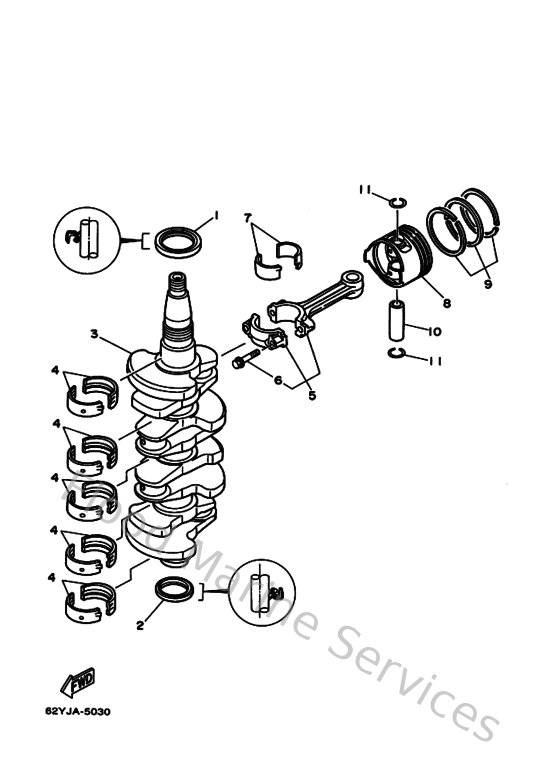

Diagram: Crankshaft & Piston

Diagram

Parts List

Reference
Description
Price


1
9310243M4200
Oil seal(62y)
Loading…

↗
2
9310235M4700
Oil seal(62y)
Loading…

↗
3
62Y114110000
Crankshaft & nut set
Loading…

↗
4
62Y114162000
Plane bearing, crankshaft 1
Loading…

↗
5
62Y116500000
Connecting rod assembly
Loading…

↗
6
62Y116540000
Bolt, connecting rod
Loading…

↗
7
62Y116562000
Plane bearing, connecting rod
Loading…

↗
8
62Y116310096
Piston (Std)
Loading…

↗
9
62Y116030000
Piston ring set (std)
Loading…

↗
10
62Y116330000
Pin, piston
Loading…

↗
11
934501712900
Circlip(1ar)
Loading…

↗
