E8DMH (1997)
Cylinder & Crankcase

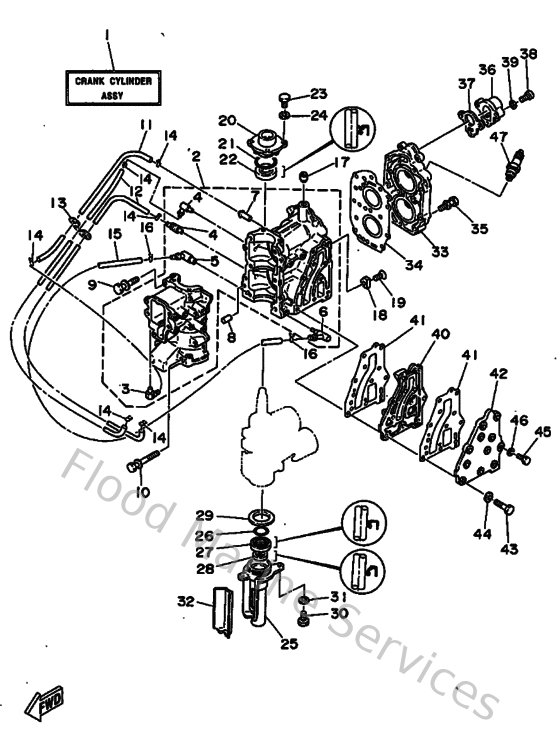

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
1
677W0090064D
Crank cylinder assembly
Loading…
↗
2
677151000294
Crankcase assembly
Loading…
↗
3
650113700000
Check valve assembly
Loading…
↗
4
646113700000
Check valve assembly
Loading…
↗
5
677113720000
Nipple, hose
Loading…
↗
6
676113720000
Nipple, hose
Loading…
↗
7
624144850000
Pipe, joint
Loading…
↗
8
936050804100
Pin, Dowel
Loading…
↗
9
9011906M1500
Bolt, with washer (677)
Loading…
↗
10
9011906M1600
Bolt, With Washer
Loading…
↗
11
9044507M0200
Hose (l200)
Loading…
↗
12
9044507M9000
Hose (l390)
Loading…
↗
13
904640701500
Clamp
Loading…
↗
14
904670601600
Clip (655)
Loading…
↗
15
9044510M0300
Hose (l400)
Loading…
↗
16
9046709M0900
Clip(6k8)
Loading…
↗
17
995301001400
Pin, dowel
Loading…
↗
18
664113250000
Anode
Loading…
↗
19
982800601800
Screw, countersunk
Loading…
↗
20
677153590094
Housing, oil seal 1
Loading…
↗
21
932104215900
O-ring (647)
Loading…
↗
22
9310220M2500
Oil seal (6e0)
Loading…
↗
23
970800601800
Bolt (fj0)
Loading…
↗
24
929900660000
Washer, plain (646)
Loading…
↗
25
6771539601CA
Housing, oil seal
Loading…
↗
26
9321042M7000
O-ring (677)
Loading…
↗
27
9310120M2900
Oil seal(6j1)
Loading…
↗
28
9310114M0100
Oil seal (677)
Loading…
↗
29
902014152800
Washer, Plate (90201-41303-00)
Loading…
↗
30
970950601600
Bolt, hexagon deep recess
Loading…
↗
32
677153790200
Seal
Loading…
↗
33
67711111001S
Head, cylinder 1
Loading…
↗
34
67711181A100
Gasket, cylinder head 1
Loading…
↗
35
9011906M1400
Bolt, with washer (677)
Loading…
↗
36
67712413009M
Cover, thermostat
Loading…
↗
37
67712414A000
Gasket, cover
Loading…
↗
38
9010106M2700
Bolt
Loading…
↗
40
67741111019M
Inner cover, exhaust
Loading…
↗
41
67741112A000
Gasket, exhaust inner cover
Loading…
↗
42
67741113019M
Outer cover, exhaust
Loading…
↗
43
970800603000
Bolt(jf7)
Loading…
↗
47
947030021700
Plug, spark (b7hs-10)
Loading…
↗
