F45A (1999)
Cylinder & Crankcase

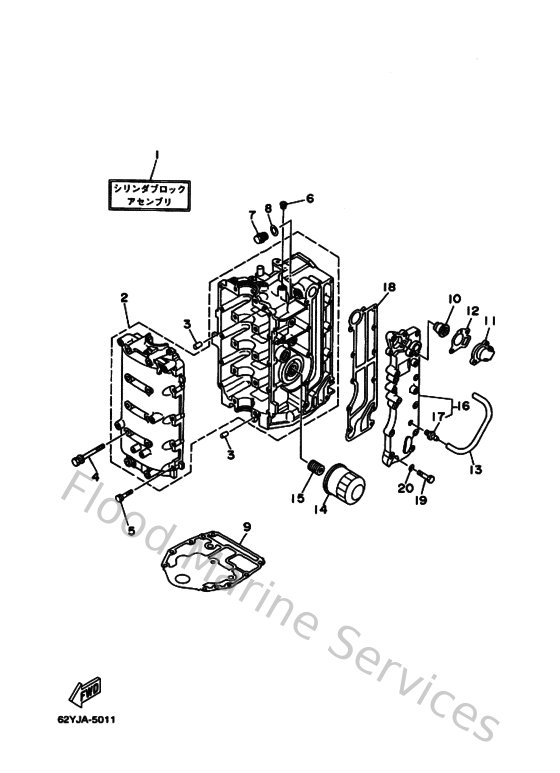

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
1
62YW009B044D
Cylinder Block assembly (D:16Mm)
Loading…
↗
2
62Y151000494
Crankcase assembly
Loading…
↗
3
995300801200
Pin, dowel(6g8)
Loading…
↗
4
9011908M0100
Bolt, with washer(62y)
Loading…
↗
5
975130653500
Bolt(3rv)
Loading…
↗
6
9034451M0100
Plug Taper Screw(62Y)
Loading…
↗
7
9034014M0600
Plug, straight screw(62y)
Loading…
↗
8
904301411500
Gasket (663)
Loading…
↗
9
62Y113510000
Gasket, cylinder
Loading…
↗
10
6G8124110200
Thermostat
Loading…
↗
11
6H312413001S
Cover, thermostat
Loading…
↗
12
62Y124140000
Gasket, cover
Loading…
↗
13
904450925200
Hose (l420)
Loading…
↗
14
3FV134400000
Element assembly, oil cleaner
Loading…
↗
15
9040120M0000
Bolt, union(62y)
Loading…
↗
16
62Y41113009M
Outer Cover, Exhaust
Loading…
↗
17
62Y124810000
Pipe 1
Loading…
↗
18
62Y411140000
Gasket, exhaust outer cover
Loading…
↗
19
970130603500
Bolt(3rv)
Loading…
↗
20
929030660000
Washer, plain (646)
Loading…
↗
