L250AETO (1990)
Cylinder & Crankcase 2

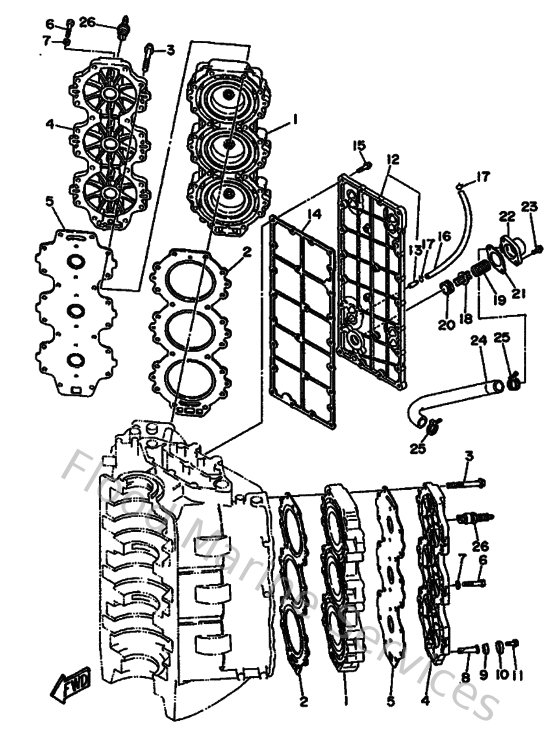

Diagram: Cylinder & Crankcase 2
Parts List
Reference
Description
Price
1
61A111110094
Head, cylinder 1
Loading…
↗
2
61A111810000
Gasket, cylinder head 1
Loading…
↗
3
9011908M0900
Bolt (6f5)
Loading…
↗
4
61A11191009M
Cover, cylinder head 1
Loading…
↗
5
61A111930000
Gasket, head cover 1
Loading…
↗
6
970140603500
Bolt(3rv)
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
6J8113250000
Anode
Loading…
↗
9
6H3113270094
Cover, anode
Loading…
↗
10
6H3113270000
Cover, anode
Loading…
↗
11
61A41113009M
Outer cover, exhaust
Loading…
↗
13
6EEF43770000
Pipe, joint 2
Loading…
↗
14
61A411120000
Gasket, exhaust inner cover
Loading…
↗
15
975130652500
Bolt, with washer(61b)
Loading…
↗
16
61A243120000
Pipe 2
Loading…
↗
17
904670800400
Clip, pipe 6162435600
Loading…
↗
18
6G5124160000
Valve, pressure control
Loading…
↗
19
9050116M1100
Spring, compression (688)
Loading…
↗
20
9048020M0500
Grommet (688)
Loading…
↗
21
6G511382A100
Gasket 2
Loading…
↗
22
6G511372005B
Cover, bypass 2
Loading…
↗
23
975130652000
Bolt, with washer(61b)
Loading…
↗
24
61A125760000
Hose 1
Loading…
↗
25
9046513M1800
Clamp
Loading…
↗
26
947020024700
Plug, spark (br8hs-10)
Loading…
↗
