F45A (1998)
Cylinder. Crankcase 1

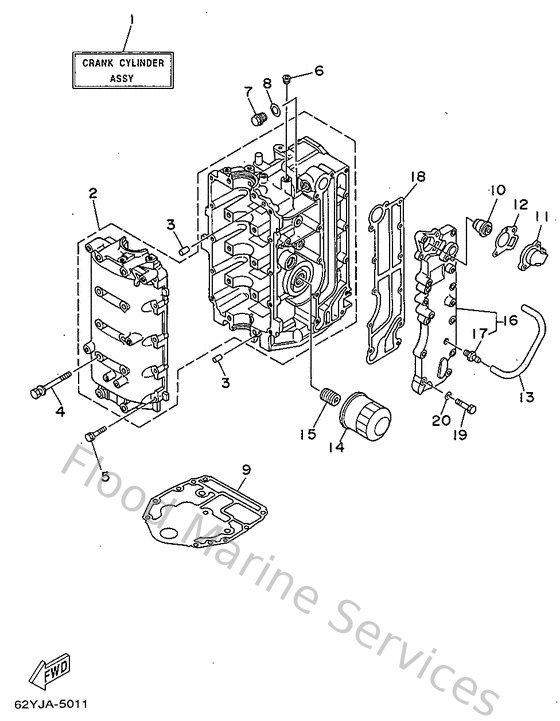

Diagram: Cylinder. Crankcase 1
Parts List
Reference
Description
Price
1
62YW009B044D
Cylinder Block assembly (D:16Mm)
Loading…
↗
2
62Y151000494
Crankcase assembly
Loading…
↗
9
62Y113510000
Gasket, cylinder
Loading…
↗
10
6G8124110200
Thermostat
Loading…
↗
11
6H312413001S
Cover, thermostat
Loading…
↗
12
62Y124140000
Gasket, cover
Loading…
↗
14
3FV134400000
Element assembly, oil cleaner
Loading…
↗
16
62Y41113009M
Outer Cover, Exhaust
Loading…
↗
17
62Y124810000
Pipe 1
Loading…
↗
18
62Y411140000
Gasket, exhaust outer cover
Loading…
↗
