Rigging - Remote Control (2012)
DBW REMOTE CONTROL 1 (SINGLE)

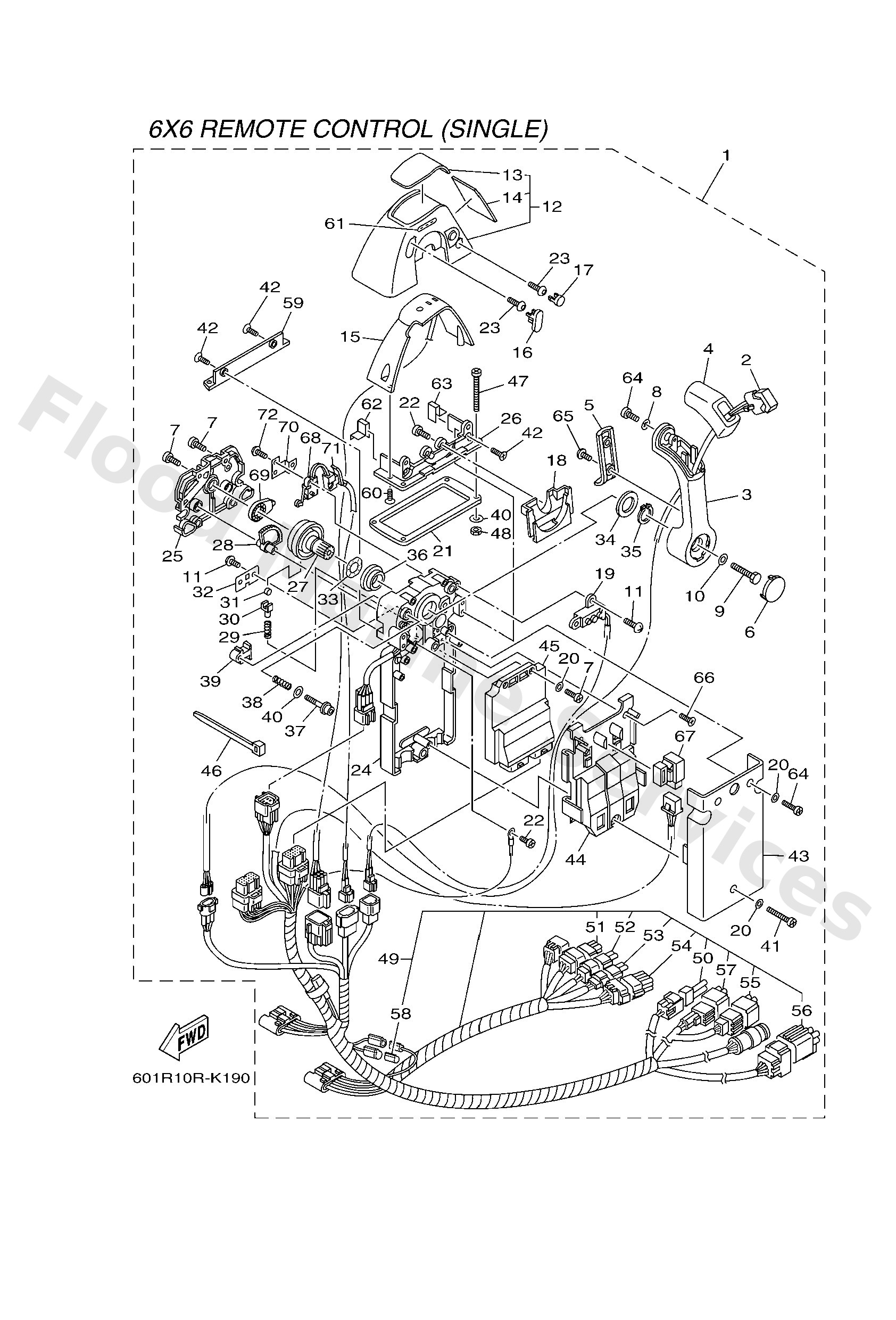

Diagram: DBW REMOTE CONTROL 1 (SINGLE)
Parts List
6X64820531
(NOT FOR SALE)
-
Diagram Reference: 1
Get Part
6X64820541
(NOT FOR SALE)
-
Diagram Reference: 1
Get Part
6X64820551
(NOT FOR SALE)
-
Diagram Reference: 1
Get Part
6X68256300
Trim & tilt switch assembly
Diagram Reference: 2
Get Part
6X64822100
Lever, control
Diagram Reference: 3
Get Part
6X64822200
Grip, control lever
Diagram Reference: 4
Get Part
6X64822400
Cover, control lever
Diagram Reference: 5
Get Part
6X64822410
Cover, control lever
Diagram Reference: 6
Get Part
9858005014
Screw, pan head(3yl)
Diagram Reference: 7
Get Part
9299005300
Washer, tooth
Diagram Reference: 8
Get Part
6X64817100
Bolt
Diagram Reference: 9
Get Part
9299008600
Washer, plain (663)
Diagram Reference: 10
Get Part
EL84812700
Screw 1
Diagram Reference: 11
Get Part
6X64811904
Cover
Diagram Reference: 12
Get Part
6X64821530
Graphic
Diagram Reference: 13
Get Part
6X64821600
Graphic
Diagram Reference: 14
Get Part
6X68430100
Pilot light assembly 1
Diagram Reference: 15
Get Part
6X64816700
Plug
Diagram Reference: 16
Get Part
6X64816750
Plug
Diagram Reference: 17
Get Part
6X64821900
Cover, lead
Diagram Reference: 18
Get Part
6X68259E00
Switch assembly
Diagram Reference: 19
Get Part
9299005200
Ybs66-5 washer, plain
Diagram Reference: 20
Get Part
6X64817600
Grommet
Diagram Reference: 21
Get Part
9858004010
Screw, pan head (e56)
Diagram Reference: 22
Get Part
6X648267C0
Bolt set
Diagram Reference: 23
Get Part
6X6481A001
Remo-Con. Case assembly
Diagram Reference: 24
Get Part
6X64821200
Back plate 1
Diagram Reference: 25
Get Part
6X64814410
Plate, stopper 2
Diagram Reference: 26
Get Part
6X64824201
Shaft, drive
Diagram Reference: 27
Get Part
6X64823301
Gear 2
Diagram Reference: 28
Get Part
6X64823800
Spring, detent
Diagram Reference: 29
Get Part
6X64823700
Adaptor
Diagram Reference: 30
Get Part
6X64823600
Roller, detent
Diagram Reference: 31
Get Part
6X64818900
Retainer
Diagram Reference: 32
Get Part
7034819800
Washer, wave 3
Diagram Reference: 33
Get Part
6X64819300
Washer 3
Diagram Reference: 34
Get Part
6X64811800
Clip, shift lever
Diagram Reference: 35
Get Part
6X64823400
Bushing 1
Diagram Reference: 36
Get Part
6X64826700
Bolt set
Diagram Reference: 37
Get Part
6X64815800
Spring 1
Diagram Reference: 38
Get Part
6X64826400
Friction, throttle
Diagram Reference: 39
Get Part
7044828700
Washer 1
Diagram Reference: 40
Get Part
6X68114501
Screw 1
Diagram Reference: 41
Get Part
6X68114700
Screw 3
Diagram Reference: 42
Get Part
6X64821300
Back plate 2
Diagram Reference: 43
Get Part
6X64822800
Holder, switch
Diagram Reference: 44
Get Part
6X68559020
Control unit assembly
Diagram Reference: 45
Get Part
7038259100
Band
Diagram Reference: 46
Get Part
9778050145
(UR)
Screw, pan head tapping
Diagram Reference: 47
Get Part
9858005060
(UR)
Screw, panhead
Diagram Reference: 47
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 48
Get Part
6X682590G0
(FOR 6X6-48205-31)
-
Diagram Reference: 49
Get Part
6X682590A0
(FOR 6X6-48205-41)
Wire harness assembly
Diagram Reference: 49
Get Part
6X682590D0
(FOR 6X6-48205-51)
-
Diagram Reference: 49
Get Part
6X68258520
Cap 2 (2p)
Diagram Reference: 50
Get Part
6X68258260
(FOR 6X6-82590-A0)
Cap 1 (6p)
Diagram Reference: 51
Get Part
6X68258240
(FOR 6X6-82590-A0)
Cap 1 (4p)
Diagram Reference: 52
Get Part
6X682582A0
(FOR 6X6-82590-A0)
Cap 1 (3p)
Diagram Reference: 53
Get Part
6X682582C0
(FOR 6X6-82590-A0)
Cap 1 (12p)
Diagram Reference: 54
Get Part
6X68258560
(FOR 6X6-82590-A0/G0)
Cap 2 (6p)
Diagram Reference: 55
Get Part
6X68257Y70
(FOR 6X6-82590-A0)
Cap 2 (6p)
Diagram Reference: 56
Get Part
6X68258540
(FOR 6X6-82590-A0/G0)
Cap 2 (4p)
Diagram Reference: 57
Get Part
6X68258500
(FOR 6X6-82590-A0/D0)
Cap 2
Diagram Reference: 58
Get Part
6X64814400
Plate, stopper 2
Diagram Reference: 59
Get Part
6X64812901
Screw 3
Diagram Reference: 60
Get Part
6X64419100
Indicator, shift
Diagram Reference: 61
Get Part
6X64817650
Grommet
Diagram Reference: 62
Get Part
6X64817660
Grommet
Diagram Reference: 63
Get Part
6X64812701
Screw 1
Diagram Reference: 64
Get Part
6X64812800
Screw 2
Diagram Reference: 65
Get Part
6X68114601
Screw 2
Diagram Reference: 66
Get Part
7048195010
Relay assembly
Diagram Reference: 67
Get Part
6X68254000
Neutral switch assembly
Diagram Reference: 68
Get Part
6X64824100
Arm, drive
Diagram Reference: 69
Get Part
6X64824501
Plate, lock
Diagram Reference: 70
Get Part
6X68254500
Grommet
Diagram Reference: 71
Get Part
6X68252V00
Screw, special
Diagram Reference: 72
Get Part
