Parts List

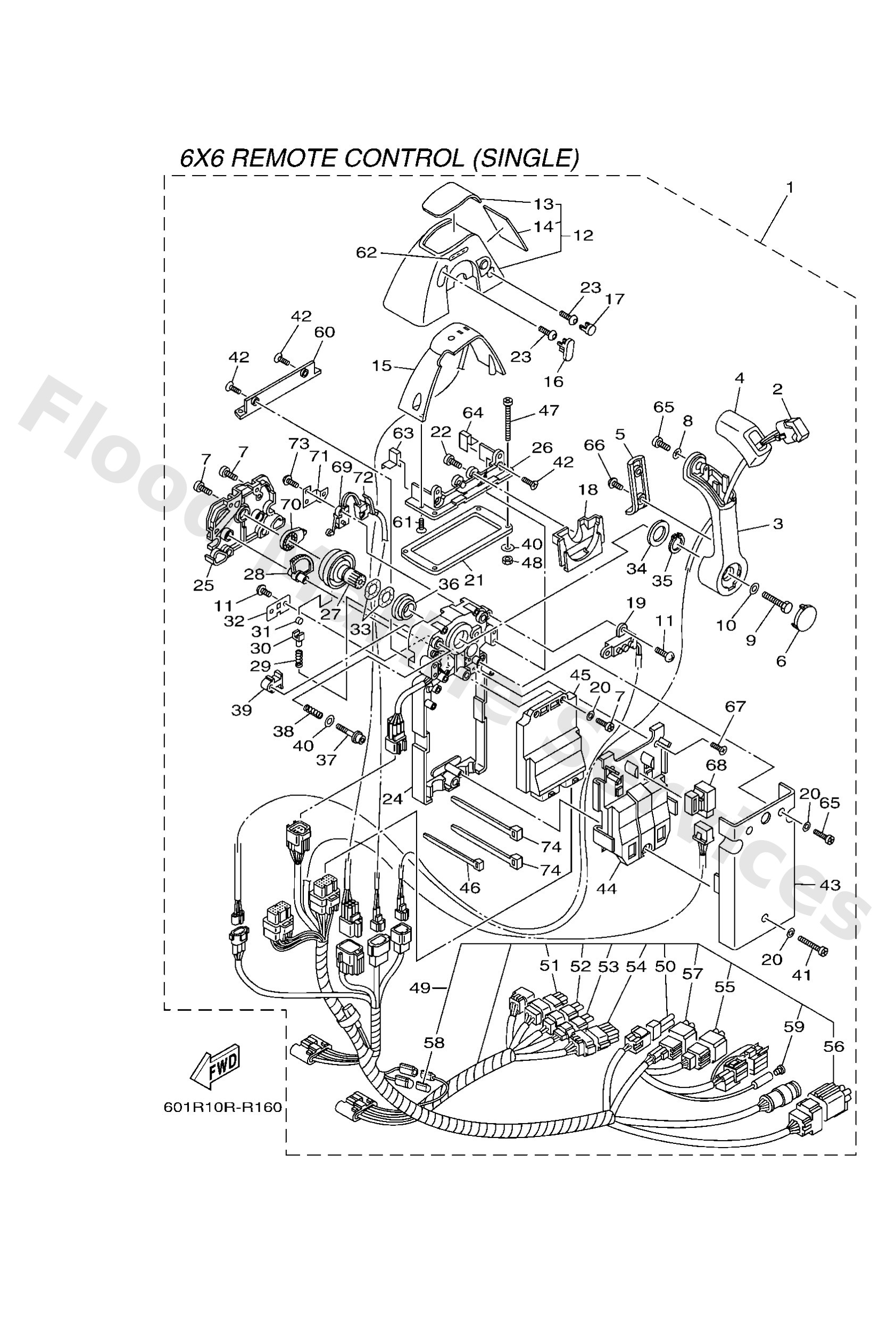

Remote Control assembly (Single)
Diagram Reference: 1
Remote Control assembly (Single)
Diagram Reference: 1
6x6 rc sgl top mount 2nd stn
Diagram Reference: 1
Trim & tilt switch assembly
Diagram Reference: 2
Lever, control
Diagram Reference: 3
Grip, control lever
Diagram Reference: 4
Cover, control lever
Diagram Reference: 5
Cover, control lever
Diagram Reference: 6
Screw, pan head(3yl)
Diagram Reference: 7
Washer, tooth
Diagram Reference: 8
Bolt
Diagram Reference: 9
Washer, plain (663)
Diagram Reference: 10
Screw 1
Diagram Reference: 11
Cover
Diagram Reference: 12
Graphic
Diagram Reference: 13
Graphic
Diagram Reference: 14
Pilot light assembly 1
Diagram Reference: 15
Plug
Diagram Reference: 16
Plug
Diagram Reference: 17
Cover, lead
Diagram Reference: 18
Switch assembly
Diagram Reference: 19
Ybs66-5 washer, plain
Diagram Reference: 20
Grommet
Diagram Reference: 21
Screw, pan head (e56)
Diagram Reference: 22
Bolt set
Diagram Reference: 23
Remo-con. case assembly
Diagram Reference: 24
Back plate 1
Diagram Reference: 25
Plate, stopper 2
Diagram Reference: 26
Shaft, drive
Diagram Reference: 27
Gear 2
Diagram Reference: 28
Spring, detent
Diagram Reference: 29
Adaptor
Diagram Reference: 30
Roller, detent
Diagram Reference: 31
Retainer
Diagram Reference: 32
Washer, wave 3
Diagram Reference: 33
Washer 3
Diagram Reference: 34
Clip, shift lever
Diagram Reference: 35
Bushing 1
Diagram Reference: 36
Bolt set
Diagram Reference: 37
Spring 1
Diagram Reference: 38
Friction, throttle
Diagram Reference: 39
Washer 1
Diagram Reference: 40
Screw 1
Diagram Reference: 41
Screw 3
Diagram Reference: 42
Back plate 2
Diagram Reference: 43
Holder, switch
Diagram Reference: 44
Control unit assembly
Diagram Reference: 45
Band
Diagram Reference: 46
Screw, pan head tapping
Diagram Reference: 47
Screw, panhead
Diagram Reference: 47
Nut, hexagon (663)
Diagram Reference: 48
Wire harness assembly 2
Diagram Reference: 49
Wire harness assembly 2
Diagram Reference: 49
Wire harness assembly 2
Diagram Reference: 49
Cap 2 (2p)
Diagram Reference: 50
Cap 1 (6p)
Diagram Reference: 51
Cap 1 (4p)
Diagram Reference: 52
Cap 1 (3p)
Diagram Reference: 53
Cap 1 (12p)
Diagram Reference: 54
Cap 2 (6p)
Diagram Reference: 55
Cap 2 (6p)
Diagram Reference: 56
White cap 1 (4pin)
Diagram Reference: 57
Cap 2
Diagram Reference: 58
Cover, lead wire
Diagram Reference: 59
Plate, stopper 2
Diagram Reference: 60
Screw 3
Diagram Reference: 61
Indicator, shift
Diagram Reference: 62
Grommet
Diagram Reference: 63
Grommet
Diagram Reference: 64
Screw 1
Diagram Reference: 65
Screw 2
Diagram Reference: 66
Screw 2
Diagram Reference: 67
Relay assembly
Diagram Reference: 68
Neutral switch assembly
Diagram Reference: 69
Arm, drive
Diagram Reference: 70
Plate, lock
Diagram Reference: 71
Grommet
Diagram Reference: 72
Screw, special
Diagram Reference: 73
Band
Diagram Reference: 74
