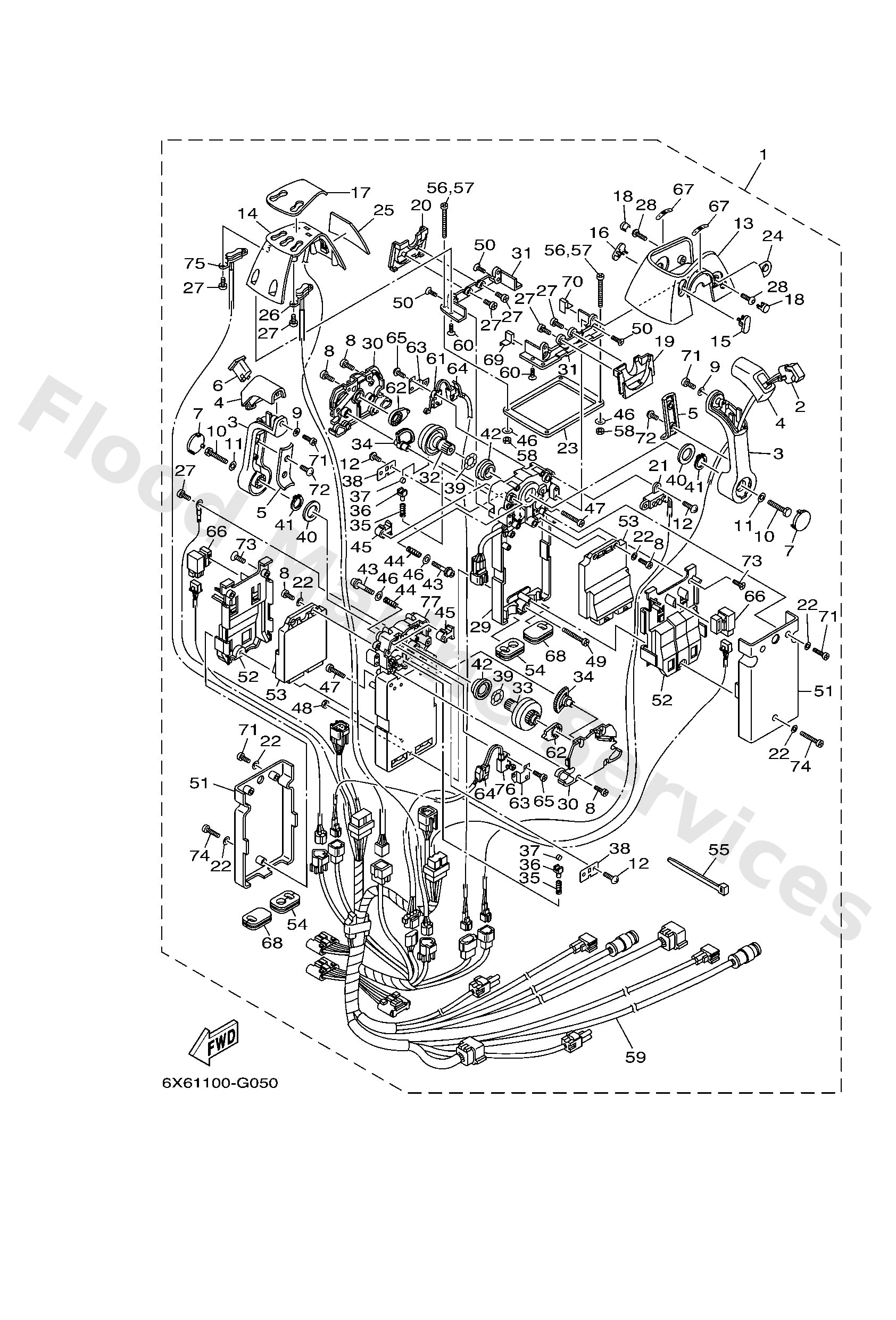

Diagram: DBW REMOTE CONTROL 2 (TWIN)
Parts List
Trim & Tilt Switch Assy
Diagram Reference: 2
Lever, Control
Diagram Reference: 3
Grip, Control Lever
Diagram Reference: 4
Cover, Control Lever
Diagram Reference: 5
Grip, Control Lever
Diagram Reference: 6
Cover, Control Lever
Diagram Reference: 7
Screw, Pan Head
Diagram Reference: 8
Washer, Internal Tooth
Diagram Reference: 9
Bolt
Diagram Reference: 10
Washer, Plate
Diagram Reference: 11
Screw 1
Diagram Reference: 12
Cover
Diagram Reference: 13
Pilot light assembly 1
Diagram Reference: 14
Plug
Diagram Reference: 15
Plug
Diagram Reference: 16
Graphic
Diagram Reference: 17
Plug
Diagram Reference: 18
Cover, Lead
Diagram Reference: 19
Cover, Lead
Diagram Reference: 20
Washer, Plain
Diagram Reference: 22
Grommet
Diagram Reference: 23
Cover
Diagram Reference: 24
Graphic
Diagram Reference: 25
Trim & Tilt Switch Assy
Diagram Reference: 26
Screw, Pan Head
Diagram Reference: 27
Remo-Con. Case Assy
Diagram Reference: 29
Plate, Stopper 2
Diagram Reference: 31
Shaft, Drive
Diagram Reference: 32
Shaft, Drive
Diagram Reference: 33
Gear 2
Diagram Reference: 34
Spring, Detent
Diagram Reference: 35
Adaptor
Diagram Reference: 36
Roller, Detent
Diagram Reference: 37
Retainer
Diagram Reference: 38
Washer 3
Diagram Reference: 40
Clip, Shift Lever
Diagram Reference: 41
Bushing 1
Diagram Reference: 42
Bolt Set
Diagram Reference: 43
Spring 1
Diagram Reference: 44
Friction, Throttle
Diagram Reference: 45
Washer
Diagram Reference: 46
Screw, Pan Head
Diagram Reference: 47
Nut 1
Diagram Reference: 48
Screw
Diagram Reference: 49
Screw, Flat Head
Diagram Reference: 50
Holder, Switch
Diagram Reference: 52
Control Unit Assy
Diagram Reference: 53
Control Unit Assy
Diagram Reference: 53
Boot
Diagram Reference: 54
Band
Diagram Reference: 55
Screw, Tapping
Diagram Reference: 56
Screw, Pan Head
Diagram Reference: 57
Nut
Diagram Reference: 58
Wire Harness Assy
Diagram Reference: 59
Screw 3
Diagram Reference: 60
Neutral Switch Assy
Diagram Reference: 61
Arm, Drive
Diagram Reference: 62
Plate, Lock
Diagram Reference: 63
Grommet
Diagram Reference: 64
Screw, Special
Diagram Reference: 65
Indicator, Shift
Diagram Reference: 67
Boot
Diagram Reference: 68
Grommet
Diagram Reference: 69
Grommet
Diagram Reference: 70
Screw 1
Diagram Reference: 71
Screw 2
Diagram Reference: 72
Trim & Tilt Switch Assy
Diagram Reference: 75
Neutral Switch Assy
Diagram Reference: 76
Remo-Con. Case Assy
Diagram Reference: 77
