Parts List

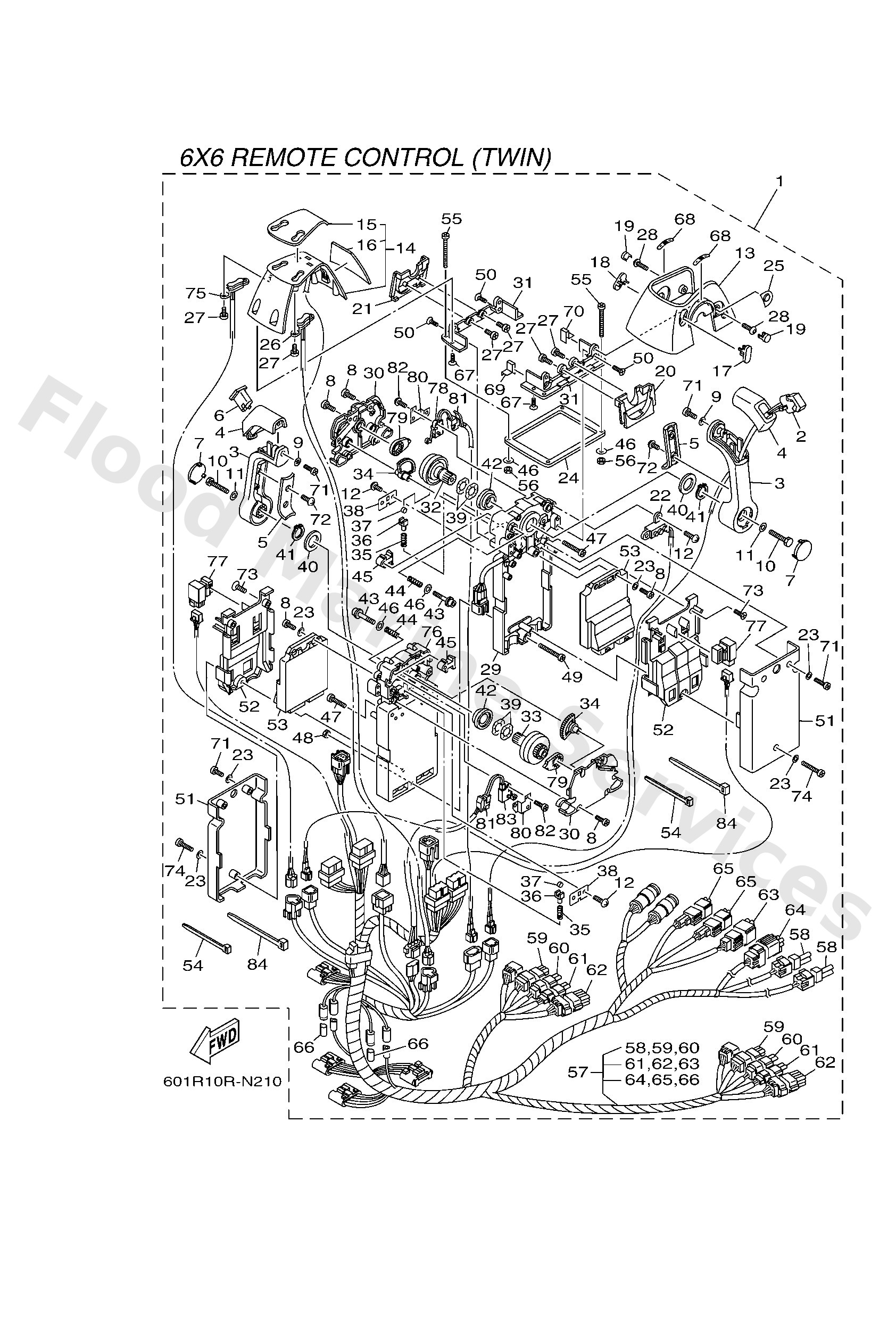

Remote Control assembly (Twin)
Diagram Reference: 1
6x6 rc twn top mount 2nd stn
Diagram Reference: 1
Trim & tilt switch assembly
Diagram Reference: 2
Lever, control
Diagram Reference: 3
Grip, control lever
Diagram Reference: 4
Cover, control lever
Diagram Reference: 5
Grip, control lever
Diagram Reference: 6
Cover, control lever
Diagram Reference: 7
Screw, pan head(3yl)
Diagram Reference: 8
Washer, tooth
Diagram Reference: 9
Bolt
Diagram Reference: 10
Washer, plain (663)
Diagram Reference: 11
Screw 1
Diagram Reference: 12
Cover
Diagram Reference: 13
Pilot light assembly 1
Diagram Reference: 14
Graphic
Diagram Reference: 15
Graphic
Diagram Reference: 16
Plug
Diagram Reference: 17
Plug
Diagram Reference: 18
Plug
Diagram Reference: 19
Cover, lead
Diagram Reference: 20
Cover, lead
Diagram Reference: 21
Switch assembly
Diagram Reference: 22
Ybs66-5 washer, plain
Diagram Reference: 23
Grommet
Diagram Reference: 24
Cover
Diagram Reference: 25
Trim & tilt switch assembly
Diagram Reference: 26
Screw, pan head (e56)
Diagram Reference: 27
Bolt set
Diagram Reference: 28
Remo-con. case assembly
Diagram Reference: 29
Back plate 1
Diagram Reference: 30
Plate, stopper 2
Diagram Reference: 31
Shaft, drive
Diagram Reference: 32
Shaft, drive
Diagram Reference: 33
Gear 2
Diagram Reference: 34
Spring, detent
Diagram Reference: 35
Adaptor
Diagram Reference: 36
Roller, detent
Diagram Reference: 37
Retainer
Diagram Reference: 38
Washer, wave 3
Diagram Reference: 39
Washer 3
Diagram Reference: 40
Clip, shift lever
Diagram Reference: 41
Bushing 1
Diagram Reference: 42
Bolt set
Diagram Reference: 43
Spring 1
Diagram Reference: 44
Friction, throttle
Diagram Reference: 45
Washer 1
Diagram Reference: 46
Screw, panhead (a93)
Diagram Reference: 47
Nut 1
Diagram Reference: 48
Screw,panhead (eg9)
Diagram Reference: 49
Screw 3
Diagram Reference: 50
Back plate 2
Diagram Reference: 51
Holder, switch
Diagram Reference: 52
Control unit assembly
Diagram Reference: 53
Band
Diagram Reference: 54
Screw, panhead
Diagram Reference: 55
Screw, pan head tapping
Diagram Reference: 55
Nut, hexagon (663)
Diagram Reference: 56
Wire harness assembly 2
Diagram Reference: 57
Wire harness assembly 2
Diagram Reference: 57
Wire harness assembly 2
Diagram Reference: 57
Cap 2 (2p)
Diagram Reference: 58
Cap 1 (6p)
Diagram Reference: 59
Cap 1 (4p)
Diagram Reference: 60
Cap 1 (3p)
Diagram Reference: 61
Cap 1 (12p)
Diagram Reference: 62
Cap 2 (6p)
Diagram Reference: 63
Cap 2 (6p)
Diagram Reference: 64
White cap 1 (4pin)
Diagram Reference: 65
Cap 2
Diagram Reference: 66
Screw 3
Diagram Reference: 67
Indicator, shift
Diagram Reference: 68
Grommet
Diagram Reference: 69
Grommet
Diagram Reference: 70
Screw 1
Diagram Reference: 71
Screw 2
Diagram Reference: 72
Screw 2
Diagram Reference: 73
Screw 1
Diagram Reference: 74
Trim & tilt switch assembly
Diagram Reference: 75
Remo-con. case assembly
Diagram Reference: 76
Relay assembly
Diagram Reference: 77
Neutral switch assembly
Diagram Reference: 78
Arm, drive
Diagram Reference: 79
Plate, lock
Diagram Reference: 80
Grommet
Diagram Reference: 81
Screw, special
Diagram Reference: 82
Neutral switch assembly
Diagram Reference: 83
Band
Diagram Reference: 84
