Yamaha Outboard Parts - DBW REMOTE CONTROL 5 (QUAD) - Digital Network Control (2010)

6X682590J0 (FOR 6X6-48209-00)

Wire harness assembly

Diagram Reference: 1

6X682590L0 (FOR 6X6-48209-10)

Wire harness assembly

Diagram Reference: 1

6X68258520

Cap 2 (2p)

Diagram Reference: 2

6X68258260 (FOR 6X6-82590-J0)

Cap 1 (6p)

Diagram Reference: 3

6X68258240 (FOR 6X6-82590-J0)

Cap 1 (4p)

Diagram Reference: 4

6X682582B0 (FOR 6X6-82590-J0)

Cap 1 (12P)

Diagram Reference: 5

6X682590K0 (FOR 6X6-48209-00)

Wire harness assembly

Diagram Reference: 6

6X682590M0 (FOR 6X6-48209-10)

Wire harness assembly

Diagram Reference: 6

6X682570N0

Panel switch assembly

Diagram Reference: 11

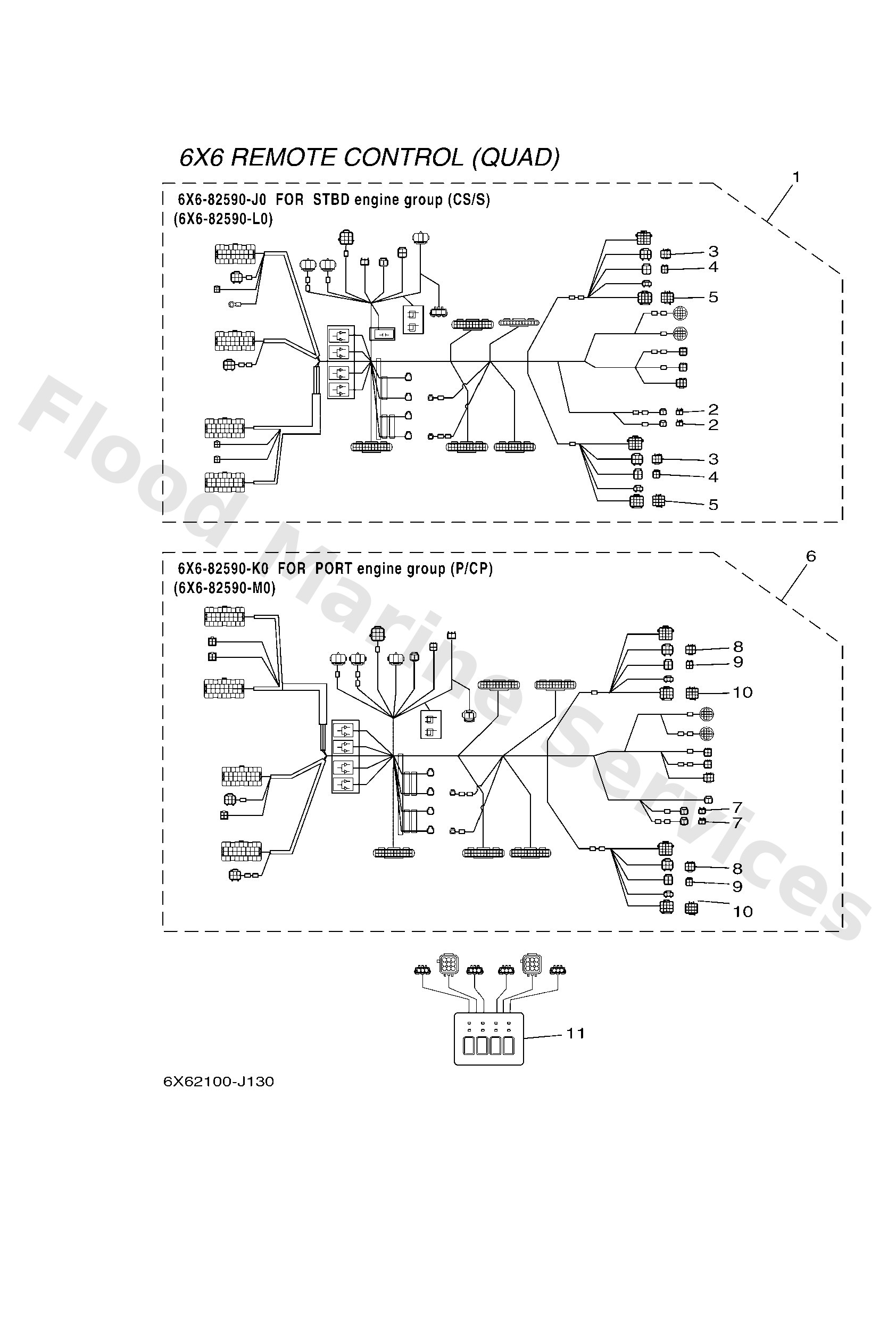

Diagram: DBW REMOTE CONTROL 5 (QUAD)
