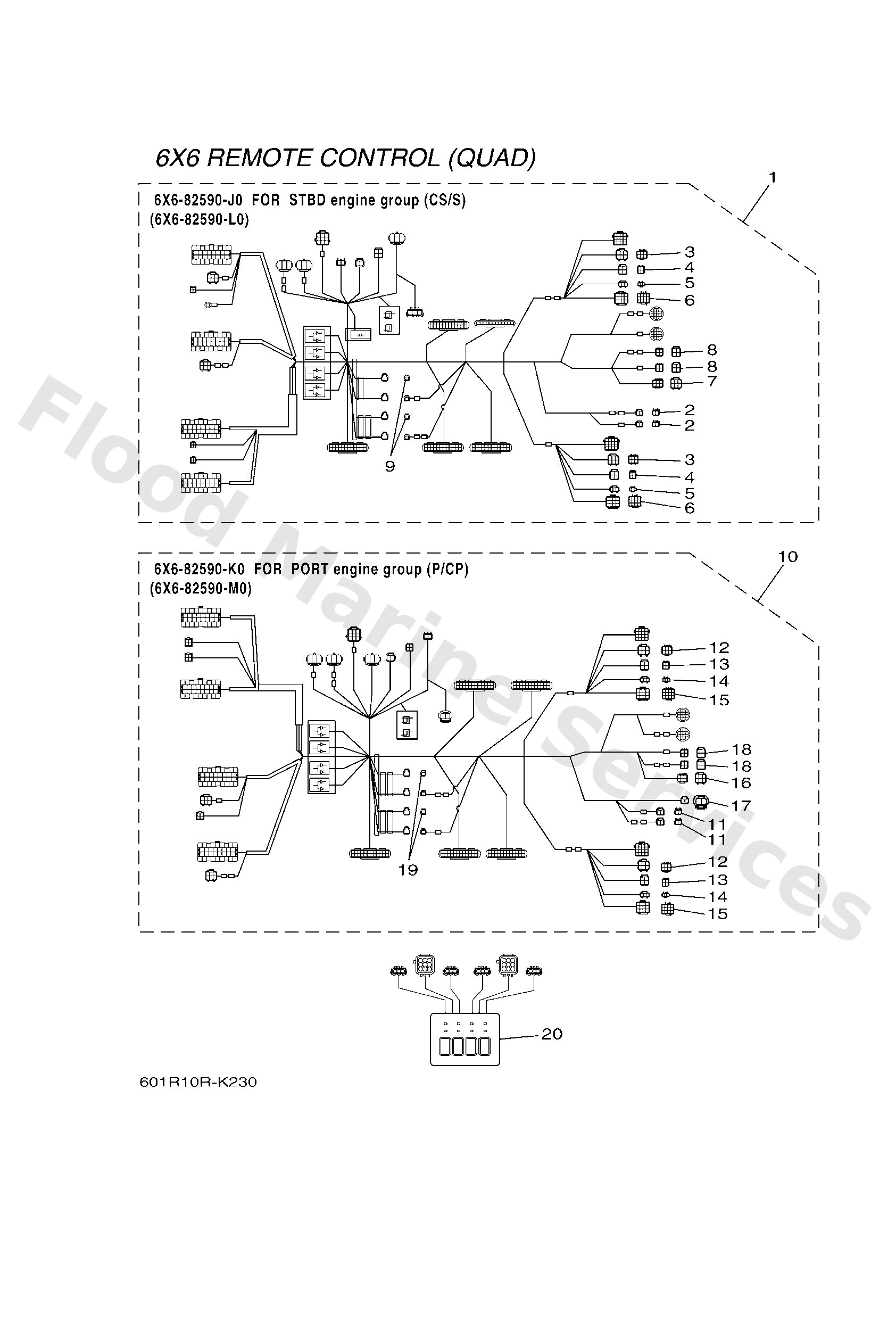

Diagram: DBW REMOTE CONTROL 5 (QUAD)

Diagram

Parts List

6X682590L0 (FOR 6X6-48209-11)
Wire harness assembly
Diagram Reference: 1
Get Part
6X682590J0 (FOR 6X6-48209-01)
Wire harness assembly
Diagram Reference: 1
Get Part
6X68258520
Cap 2 (2p)
Diagram Reference: 2
Get Part
6X68258260 (FOR 6X6-82590-J0)
Cap 1 (6p)
Diagram Reference: 3
Get Part
6X68258240 (FOR 6X6-82590-J0)
Cap 1 (4p)
Diagram Reference: 4
Get Part
6X682582A0 (FOR 6X6-82590-J0)
Cap 1 (3p)
Diagram Reference: 5
Get Part
6X682582C0 (FOR 6X6-82590-J0)
Cap 1 (12p)
Diagram Reference: 6
Get Part
6X68258570 (FOR 6X6-82590-J0)
Cap 2 (6p)
Diagram Reference: 7
Get Part
6X68258540 (FOR 6X6-82590-J0)
Cap 2 (4p)
Diagram Reference: 8
Get Part
6X68258500
Cap 2
Diagram Reference: 9
Get Part
6X682590M0 (FOR 6X6-48209-11)
Wire harness assembly
Diagram Reference: 10
Get Part
6X682590K0 (FOR 6X6-48209-01)
Wire harness assembly
Diagram Reference: 10
Get Part
6X68257Y70 (FOR 6X6-82590-K0)
Cap 2 (6p)
Diagram Reference: 17
Get Part
6X682570N0
Panel switch assembly
Diagram Reference: 20
Get Part
