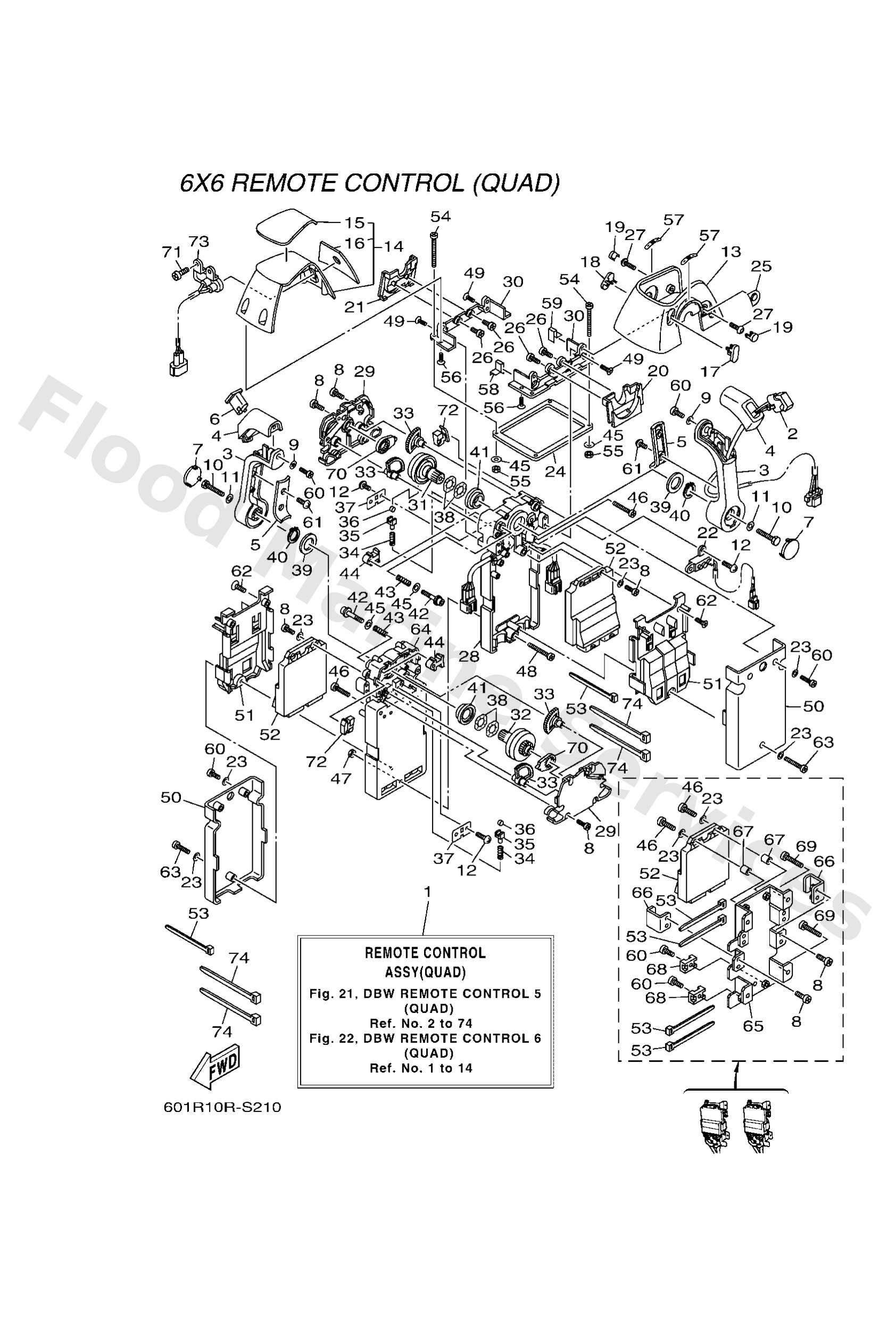

Diagram: DBW REMOTE CONTROL 5 (QUAD)

Diagram

Parts List

6X64820933 (NOT FOR SALE)
-
Diagram Reference: 1
Get Part
6X64820923 (NOT FOR SALE)
-
Diagram Reference: 1
Get Part
6X68256301
Trim & tilt switch assembly
Diagram Reference: 2
Get Part
6X64822100
Lever, control
Diagram Reference: 3
Get Part
6X64822200
Grip, control lever
Diagram Reference: 4
Get Part
6X64822400
Cover, control lever
Diagram Reference: 5
Get Part
6X64822210
Grip, control lever
Diagram Reference: 6
Get Part
6X64822410
Cover, control lever
Diagram Reference: 7
Get Part
9858005014
Screw, pan head(3yl)
Diagram Reference: 8
Get Part
9299005300
Washer, tooth
Diagram Reference: 9
Get Part
6X64817100
Bolt
Diagram Reference: 10
Get Part
9299008600
Washer, plain (663)
Diagram Reference: 11
Get Part
EL84812700
Screw 1
Diagram Reference: 12
Get Part
6X64811910
Cover
Diagram Reference: 13
Get Part
6X68430140
Pilot light assembly 1
Diagram Reference: 14
Get Part
6X64821570
Graphic
Diagram Reference: 15
Get Part
6X64821620
Graphic
Diagram Reference: 16
Get Part
6X64816710
Plug
Diagram Reference: 17
Get Part
6X64816720
Plug
Diagram Reference: 18
Get Part
6X64816760
Plug
Diagram Reference: 19
Get Part
6X64821910
Cover, lead
Diagram Reference: 20
Get Part
6X64821920
Cover, lead
Diagram Reference: 21
Get Part
6X68259E01
Switch assembly
Diagram Reference: 22
Get Part
9299005200
Ybs66-5 washer, plain
Diagram Reference: 23
Get Part
6X64817610
Grommet
Diagram Reference: 24
Get Part
6X64822500
Cover
Diagram Reference: 25
Get Part
9858004010
Screw, pan head (e56)
Diagram Reference: 26
Get Part
6X648267C0
Bolt set
Diagram Reference: 27
Get Part
6X6481A012
Remo-con. case assembly
Diagram Reference: 28
Get Part
6X64821200
Back plate 1
Diagram Reference: 29
Get Part
6X64814410
Plate, stopper 2
Diagram Reference: 30
Get Part
6X64824202
Shaft, drive
Diagram Reference: 31
Get Part
6X64824212
Shaft, drive
Diagram Reference: 32
Get Part
6X64823301
Gear 2
Diagram Reference: 33
Get Part
6X64823800
Spring, detent
Diagram Reference: 34
Get Part
6X64823700
Adaptor
Diagram Reference: 35
Get Part
6X64823600
Roller, detent
Diagram Reference: 36
Get Part
6X64818900
Retainer
Diagram Reference: 37
Get Part
7034819800
Washer, wave 3
Diagram Reference: 38
Get Part
6X64819300
Washer 3
Diagram Reference: 39
Get Part
6X64811800
Clip, shift lever
Diagram Reference: 40
Get Part
6X64823400
Bushing 1
Diagram Reference: 41
Get Part
6X64826700
Bolt set
Diagram Reference: 42
Get Part
6X64815800
Spring 1
Diagram Reference: 43
Get Part
6X64826400
Friction, throttle
Diagram Reference: 44
Get Part
7044828700
Washer 1
Diagram Reference: 45
Get Part
9858005025
Screw, panhead (a93)
Diagram Reference: 46
Get Part
7044815600
Nut 1
Diagram Reference: 47
Get Part
7044828300
Screw,panhead (eg9)
Diagram Reference: 48
Get Part
6X68114700
Screw 3
Diagram Reference: 49
Get Part
6X64821300
Back plate 2
Diagram Reference: 50
Get Part
6X64822801
Holder, switch
Diagram Reference: 51
Get Part
6X68559031
Control unit assembly
Diagram Reference: 52
Get Part
7038259100
Band
Diagram Reference: 53
Get Part
9778050145 (UR)
Screw, pan head tapping
Diagram Reference: 54
Get Part
9858005060 (UR)
Screw, panhead
Diagram Reference: 54
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 55
Get Part
6X64812901
Screw 3
Diagram Reference: 56
Get Part
6X64419110
Indicator, shift
Diagram Reference: 57
Get Part
6X64817650
Grommet
Diagram Reference: 58
Get Part
6X64817660
Grommet
Diagram Reference: 59
Get Part
6X64812701
Screw 1
Diagram Reference: 60
Get Part
6X64812800
Screw 2
Diagram Reference: 61
Get Part
6X68114601
Screw 2
Diagram Reference: 62
Get Part
6X68114501
Screw 1
Diagram Reference: 63
Get Part
6X6481A032
Remo-con. case assembly
Diagram Reference: 64
Get Part
6X64821110
Housing,1
Diagram Reference: 65
Get Part
6X68555700
Holder
Diagram Reference: 66
Get Part
6X68252S00
Spacer, 1
Diagram Reference: 67
Get Part
6X68258100
Stay, cord clamp
Diagram Reference: 68
Get Part
6X04812800
Screw 2
Diagram Reference: 69
Get Part
6X64824100
Arm, drive
Diagram Reference: 70
Get Part
9878005010
Screw, flat head (716)
Diagram Reference: 71
Get Part
6X68254500
Grommet
Diagram Reference: 72
Get Part
6X68259F11
Switch assembly
Diagram Reference: 73
Get Part
7038259110
Band
Diagram Reference: 74
Get Part
