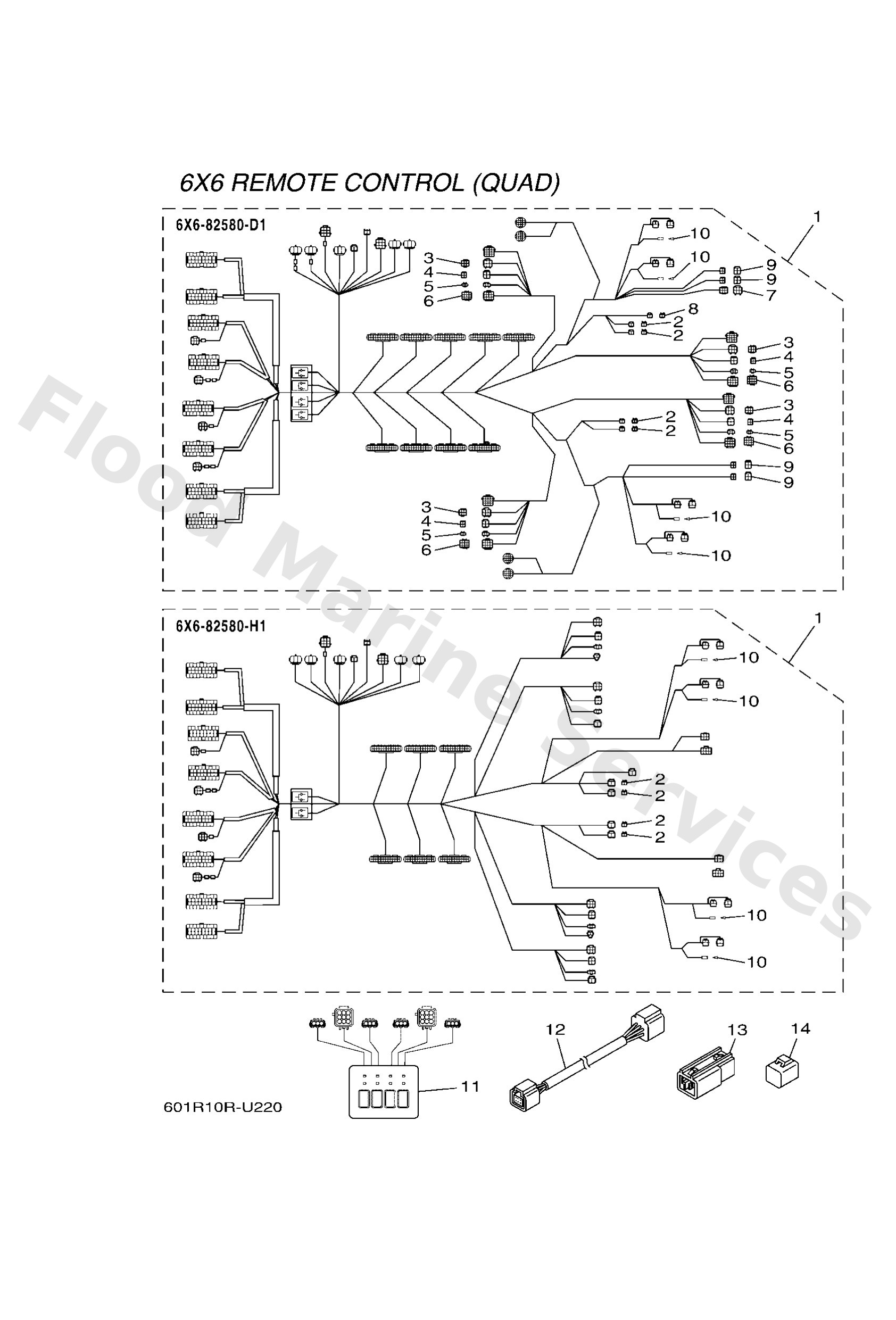

Diagram: DBW REMOTE CONTROL 6 (QUAD)

Diagram

Parts List

6X682580D1 (FOR 6X6-48209-23)
-
Diagram Reference: 1
Get Part
6X682580H1 (FOR 6X6-48209-33)
-
Diagram Reference: 1
Get Part
6X68258520
Cap 2 (2p)
Diagram Reference: 2
Get Part
6X68258260 (FOR 6X6-82580-D1)
Cap 1 (6p)
Diagram Reference: 3
Get Part
6X68258240 (FOR 6X6-82580-D1)
Cap 1 (4p)
Diagram Reference: 4
Get Part
6X682582A0 (FOR 6X6-82580-D1)
Cap 1 (3p)
Diagram Reference: 5
Get Part
6X682582C0 (FOR 6X6-82580-D1)
Cap 1 (12p)
Diagram Reference: 6
Get Part
6X68258570 (FOR 6X6-82580-D1)
Cap 2 (6p)
Diagram Reference: 7
Get Part
6X68257Y00 (FOR 6X6-82580-D1)
Cap
Diagram Reference: 8
Get Part
6Y88258211 (FOR 6X6-82580-D1)
White cap 1 (4pin)
Diagram Reference: 9
Get Part
7038211901
Cover, lead wire
Diagram Reference: 10
Get Part
6X682570N1
Panel switch assembly
Diagram Reference: 11
Get Part
6Y88255350 (FOR 6X6-48209-23)
Main bus wire 3.0m-10ft
Diagram Reference: 12
Get Part
6Y88192011 (FOR 6X6-48209-23)
Single-hub
Diagram Reference: 13
Get Part
