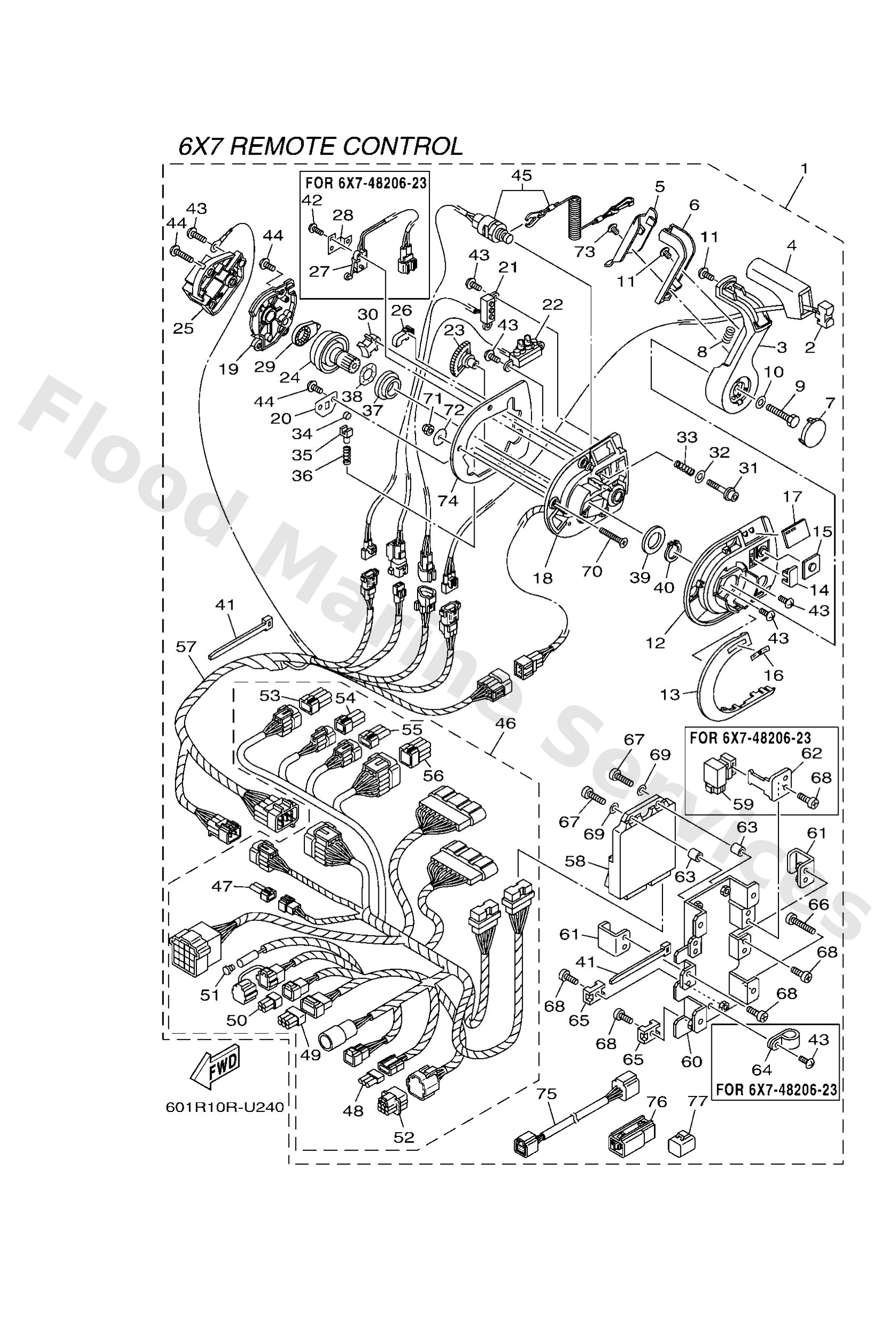

Parts List
6x7 dbw flush mnt sgl/main st
Diagram Reference: 1
6x7 dbw flush mount sgl stn
Diagram Reference: 1
6x7 dbw flush mount 2nd stn
Diagram Reference: 1
Trim & tilt switch assembly
Diagram Reference: 2
Lever, control
Diagram Reference: 3
Grip, control lever
Diagram Reference: 4
Cover, control lever
Diagram Reference: 5
Lock, neutral
Diagram Reference: 6
Cover, control lever
Diagram Reference: 7
Spring, neutral lock
Diagram Reference: 8
Bolt
Diagram Reference: 9
Washer, plain (663)
Diagram Reference: 10
Screw 2
Diagram Reference: 11
Cover
Diagram Reference: 12
Plug
Diagram Reference: 13
Plug
Diagram Reference: 14
Cover
Diagram Reference: 15
Indicator, shift
Diagram Reference: 16
Graphic
Diagram Reference: 17
Remo-con. case assembly
Diagram Reference: 18
Back plate 1
Diagram Reference: 19
Retainer
Diagram Reference: 20
Switch assembly
Diagram Reference: 21
Pilot light assembly 1
Diagram Reference: 22
Gear 2
Diagram Reference: 23
Shaft, drive
Diagram Reference: 24
Holder, switch
Diagram Reference: 25
Grommet
Diagram Reference: 26
Neutral switch assembly
Diagram Reference: 27
Plate, lock
Diagram Reference: 28
Arm, drive
Diagram Reference: 29
Friction, throttle
Diagram Reference: 30
Bolt set
Diagram Reference: 31
Washer 1
Diagram Reference: 32
Spring 1
Diagram Reference: 33
Roller, detent
Diagram Reference: 34
Adaptor
Diagram Reference: 35
Spring, detent
Diagram Reference: 36
Bushing 1
Diagram Reference: 37
Washer, wave 3
Diagram Reference: 38
Washer 3
Diagram Reference: 39
Clip, shift lever
Diagram Reference: 40
Band
Diagram Reference: 41
Screw, special
Diagram Reference: 42
Screw 1
Diagram Reference: 43
Screw 1
Diagram Reference: 44
Engine stop switch assembly
Diagram Reference: 45
Wire harness assembly
Diagram Reference: 46
Wire Harness assembly
Diagram Reference: 46
Wire Harness assembly
Diagram Reference: 46
Cap 2 (2p)
Diagram Reference: 47
Cap 1 (3p)
Diagram Reference: 48
Cap 2 (6p)
Diagram Reference: 49
White cap 1 (4pin)
Diagram Reference: 50
Cover, lead wire
Diagram Reference: 51
Cap 2 (6p)
Diagram Reference: 52
Cap 1 (6p)
Diagram Reference: 53
Cap 1 (4p)
Diagram Reference: 54
Cap 1 (12p)
Diagram Reference: 56
Wire harness assembly
Diagram Reference: 57
Wire Harness assembly
Diagram Reference: 57
Control unit assembly
Diagram Reference: 58
Relay assembly
Diagram Reference: 59
Housing,1
Diagram Reference: 60
Holder
Diagram Reference: 61
Band
Diagram Reference: 62
Spacer, 1
Diagram Reference: 63
Clamp
Diagram Reference: 64
Stay, cord clamp
Diagram Reference: 65
Screw 2
Diagram Reference: 66
Screw, panhead (a93)
Diagram Reference: 67
Screw, pan head(3yl)
Diagram Reference: 68
Ybs66-5 washer, plain
Diagram Reference: 69
Screw flat head
Diagram Reference: 70
Screw, tapping
Diagram Reference: 70
Nut 1
Diagram Reference: 71
Washer 1
Diagram Reference: 72
Screw 2
Diagram Reference: 73
Grommet
Diagram Reference: 74
Main bus wire 3.0m-10ft
Diagram Reference: 75
Single-hub
Diagram Reference: 76
