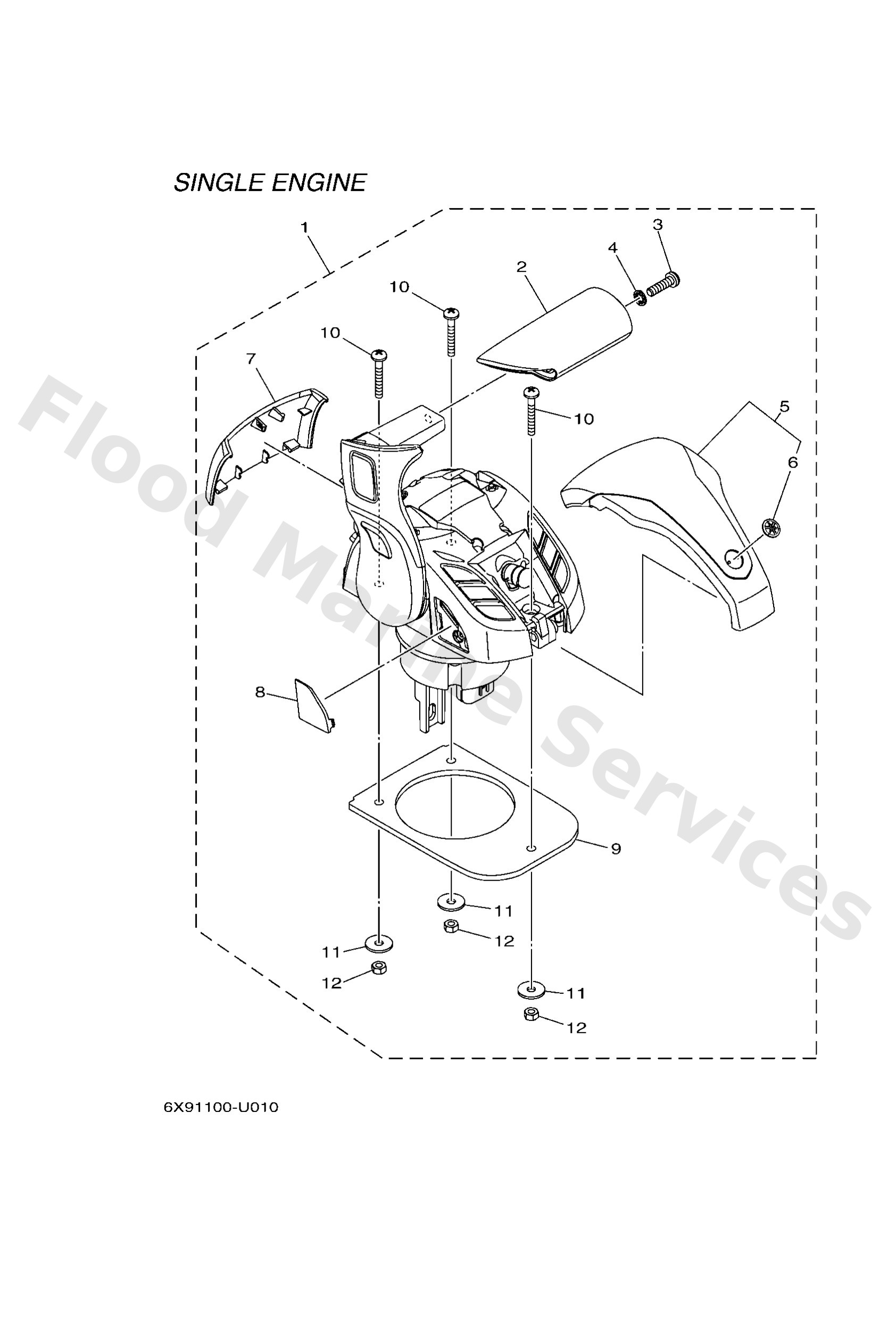

Diagram: DEC 1 (SINGLE)

Diagram

Parts List

6X948A0100 (NOT FOR SALE)
Remote Control Box assembly 2
Diagram Reference: 1
Get Part
6X94822A00
Grip, lever singl
Diagram Reference: 2
Get Part
6X94812700
Screw 1
Diagram Reference: 3
Get Part
9299005300
Washer, tooth
Diagram Reference: 4
Get Part
6X94840000
Cover assembly
Diagram Reference: 5
Get Part
6X94269700
Tuning fork mark
Diagram Reference: 6
Get Part
6X94811C00
Cover, single
Diagram Reference: 7
Get Part
6X94816700
Plug
Diagram Reference: 8
Get Part
6X94817600
Grommet
Diagram Reference: 9
Get Part
9858005060 (UR)
Screw, panhead
Diagram Reference: 10
Get Part
9778050145 (UR)
Screw, pan head tapping
Diagram Reference: 10
Get Part
7044828700
Washer 1
Diagram Reference: 11
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 12
Get Part
