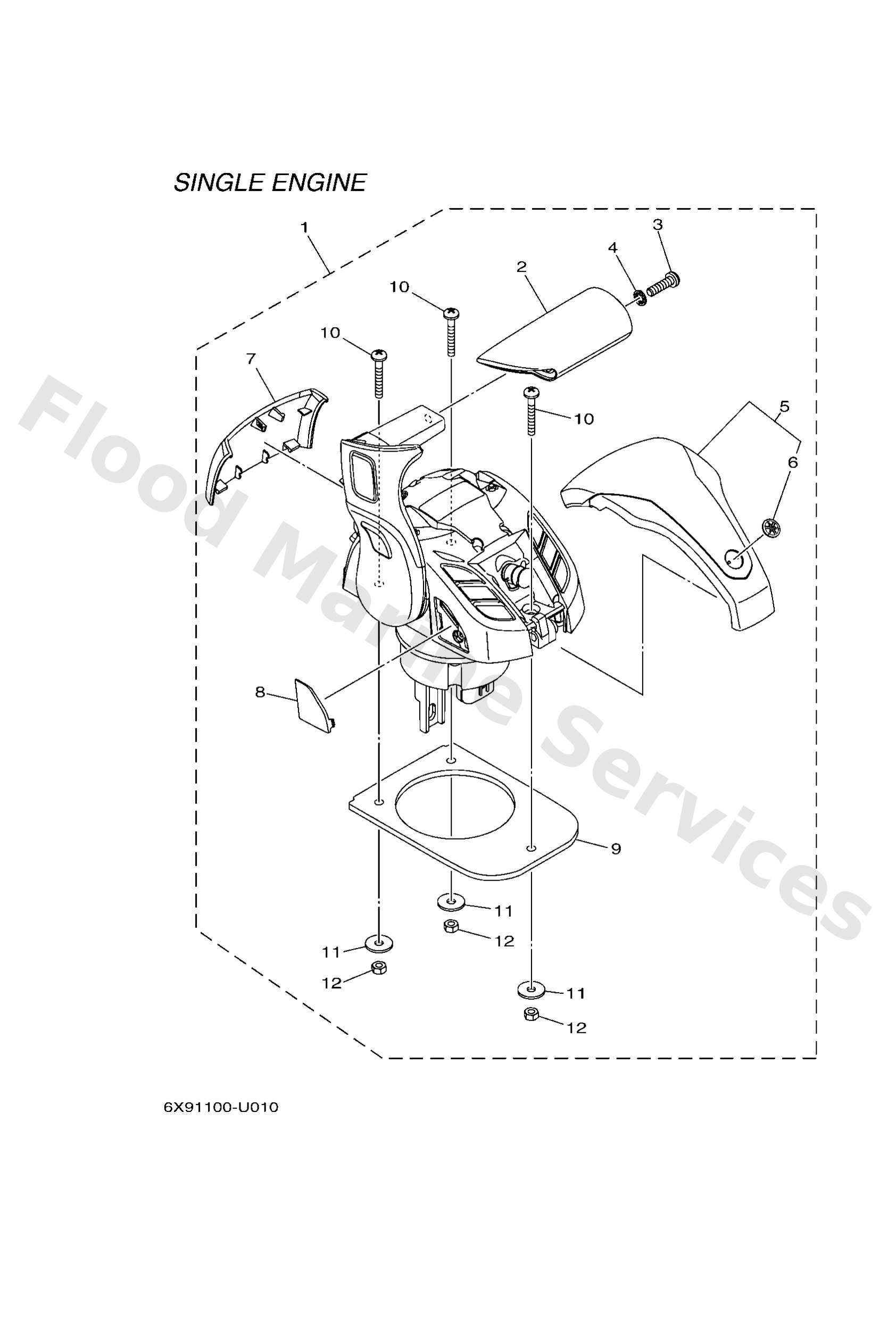

Diagram: DEC 1 (SINGLE)
Parts List
Remote control box
Diagram Reference: 1
Grip, lever singl
Diagram Reference: 2
Screw 1
Diagram Reference: 3
Washer, tooth
Diagram Reference: 4
Cover assembly
Diagram Reference: 5
Tuning fork mark
Diagram Reference: 6
Cover, single
Diagram Reference: 7
Plug
Diagram Reference: 8
Grommet
Diagram Reference: 9
Screw, pan head tapping
Diagram Reference: 10
Screw, panhead
Diagram Reference: 10
Washer 1
Diagram Reference: 11
Nut, hexagon (663)
Diagram Reference: 12
