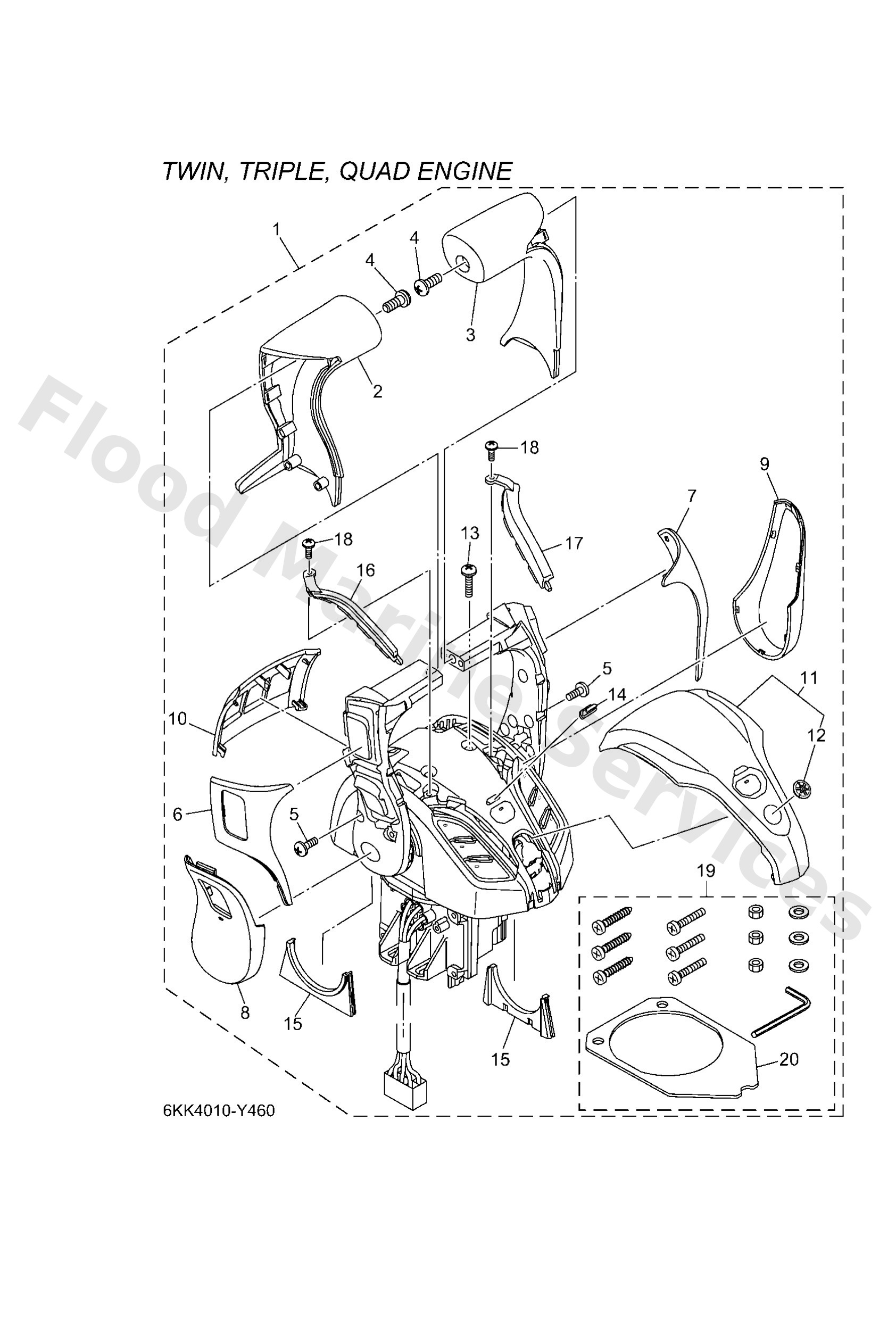

Diagram: DEC 2 (MULTIPLE)

Diagram

Parts List

6X948A0210 (ASK TO MARINE DIV)
Remote Control Box assembly 3
Diagram Reference: 1
Get Part
6X94822B10
Grip, lever multi
Diagram Reference: 2
Get Part
6X94822210
Grip, control lever
Diagram Reference: 3
Get Part
6X94812710
Screw 1
Diagram Reference: 4
Get Part
6X94418920
Screw
Diagram Reference: 5
Get Part
6X94822400
Cover, control lever
Diagram Reference: 6
Get Part
6X94822410
Cover, control lever
Diagram Reference: 7
Get Part
6X94822500
Cover
Diagram Reference: 8
Get Part
6X94822510
Cover
Diagram Reference: 9
Get Part
6X94811910
Cover
Diagram Reference: 10
Get Part
6X94840010
Cover assembly
Diagram Reference: 11
Get Part
6X94269700
Tuning fork mark
Diagram Reference: 12
Get Part
6X94418900
Screw
Diagram Reference: 13
Get Part
6X98353200
Lens, pilot
Diagram Reference: 14
Get Part
6X94821900
Cover, lead
Diagram Reference: 15
Get Part
6X98441100
Lens, illuminate 1
Diagram Reference: 16
Get Part
6X98441200
Lens, illuminate 2
Diagram Reference: 17
Get Part
6X94418910
Screw
Diagram Reference: 18
Get Part
6X94890110
Parts set 1
Diagram Reference: 19
Get Part
6X94817610
Grommet
Diagram Reference: 20
