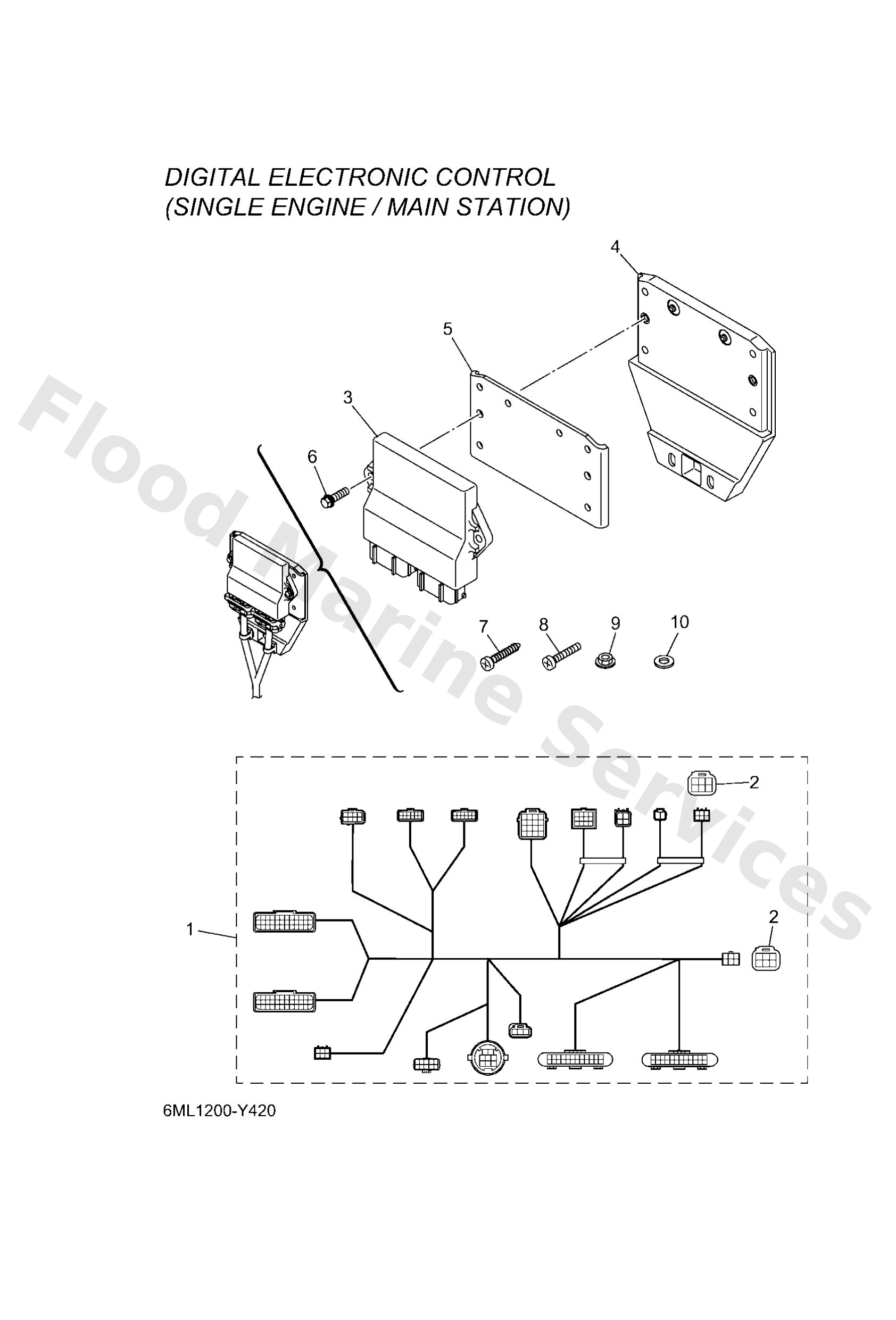

Diagram: DEC 2 (SINGLE)

Diagram

Parts List

6X98258061 (FOR CAR)

Wire harness assembly 2

Diagram Reference: 1

6Y88537101

End of line resister

Diagram Reference: 2

6X68559052 (FOR CAR)

Control unit assembly

Diagram Reference: 3

6X94821110 (FOR CAR)

Housing,1

Diagram Reference: 4

6X94821B00 (FOR CAR)

Housing,3

Diagram Reference: 5

9010506106 (FOR CAR)

Bolt, flange

Diagram Reference: 6

6X94812800 (FOR CAR)

Screw 2

Diagram Reference: 7

9015706M13 (FOR CAR)

Screw, pan head(6h4)

Diagram Reference: 8

9578006300 (FOR CAR)

Nut, nylon (6g1)

Diagram Reference: 9

90201065F1 (FOR CAR)

Washer, plate(j41)

Diagram Reference: 10
