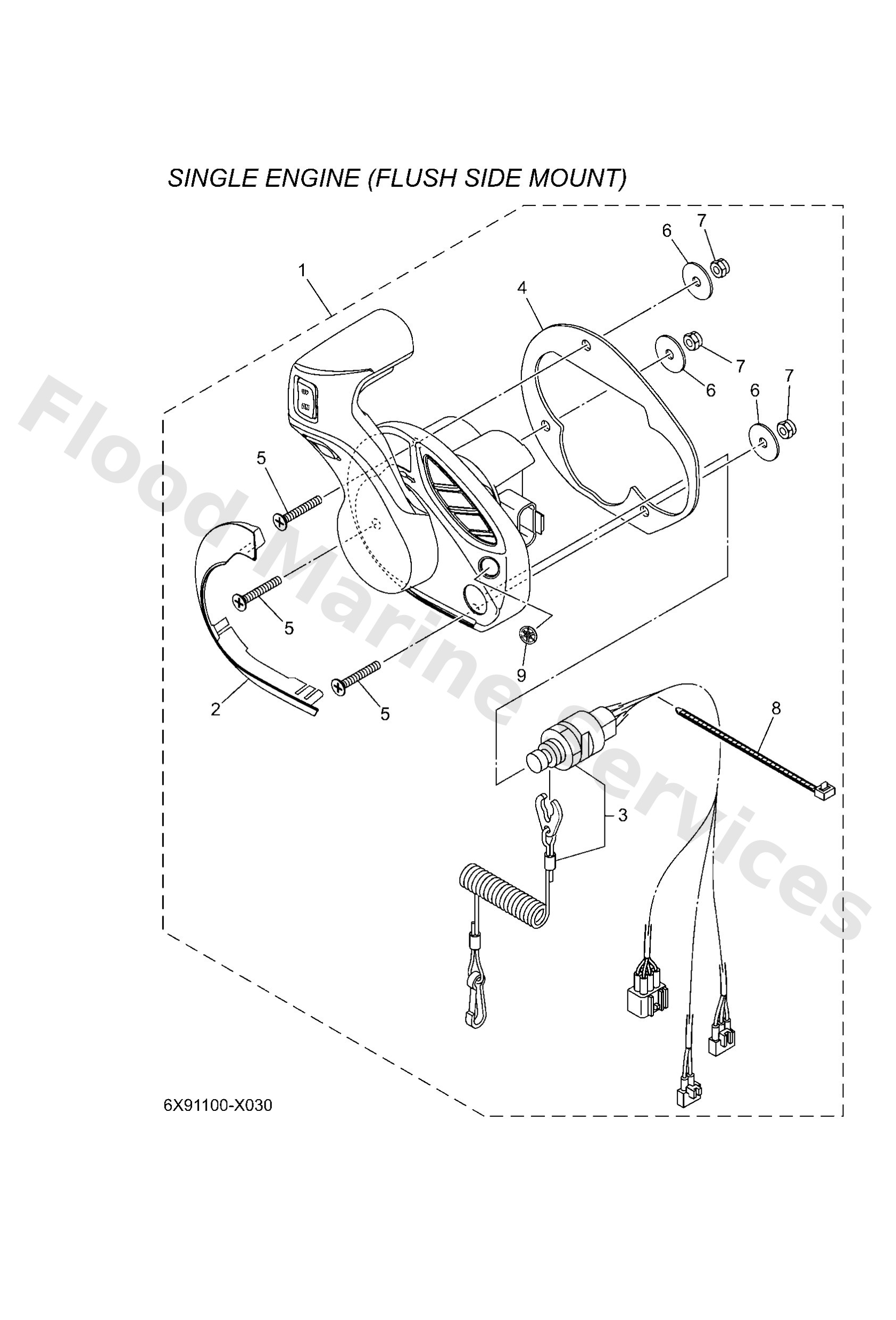

Diagram: DEC 3 (FLUSH SIDE MOUNT)

Diagram

Parts List

6X948A0001 (ASK TO MARINE DIV)
Remote Control Box assembly 1
Diagram Reference: 1
Get Part
6X94816600
Plug
Diagram Reference: 2
Get Part
6X78257501
Engine stop switch assembly
Diagram Reference: 3
Get Part
6X94823B00
Packing 2
Diagram Reference: 4
Get Part
9878006035 (UR)
Screw flat head
Diagram Reference: 5
Get Part
9778006230 (UR)
Screw, tapping
Diagram Reference: 5
Get Part
7014828700
Washer 1
Diagram Reference: 6
Get Part
6X04815600
Nut 1
Diagram Reference: 7
Get Part
6X94282100
Band, clamp
Diagram Reference: 8
Get Part
6X94269700
Tuning fork mark
Diagram Reference: 9
