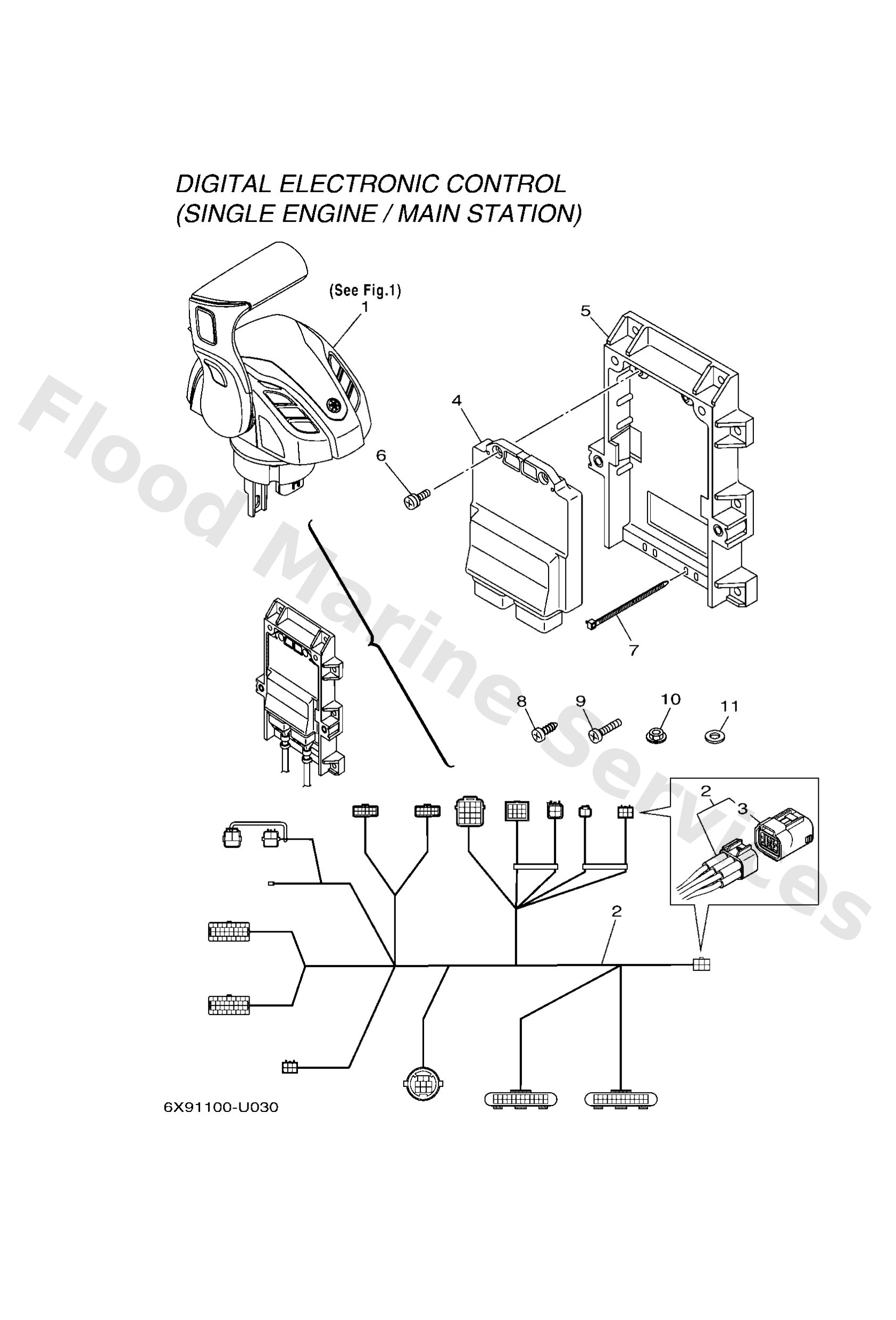

Diagram: DEC 3 (SINGLE/MAIN ST)

Diagram

Parts List

6X948A0100 (NOT FOR SALE)
Remote Control Box assembly 2
Diagram Reference: 1
Get Part
6X98258000
Wire Harness assembly 2
Diagram Reference: 2
Get Part
6Y88537101
End of line resister
Diagram Reference: 3
Get Part
6X68559040
Control unit assembly
Diagram Reference: 4
Get Part
6X94821100
Housing,1
Diagram Reference: 5
Get Part
9760705212
Screw,w/washer
Diagram Reference: 6
Get Part
9046513M11
Clamp (6e5)
Diagram Reference: 7
Get Part
9016706M00
Screw, tapping (6h4)
Diagram Reference: 8
Get Part
9788006035
Screw, pan head(6h4)
Diagram Reference: 9
Get Part
9578006300
Nut, nylon (6g1)
Diagram Reference: 10
Get Part
9020106M30
Washer, plate (6a1)
Diagram Reference: 11
