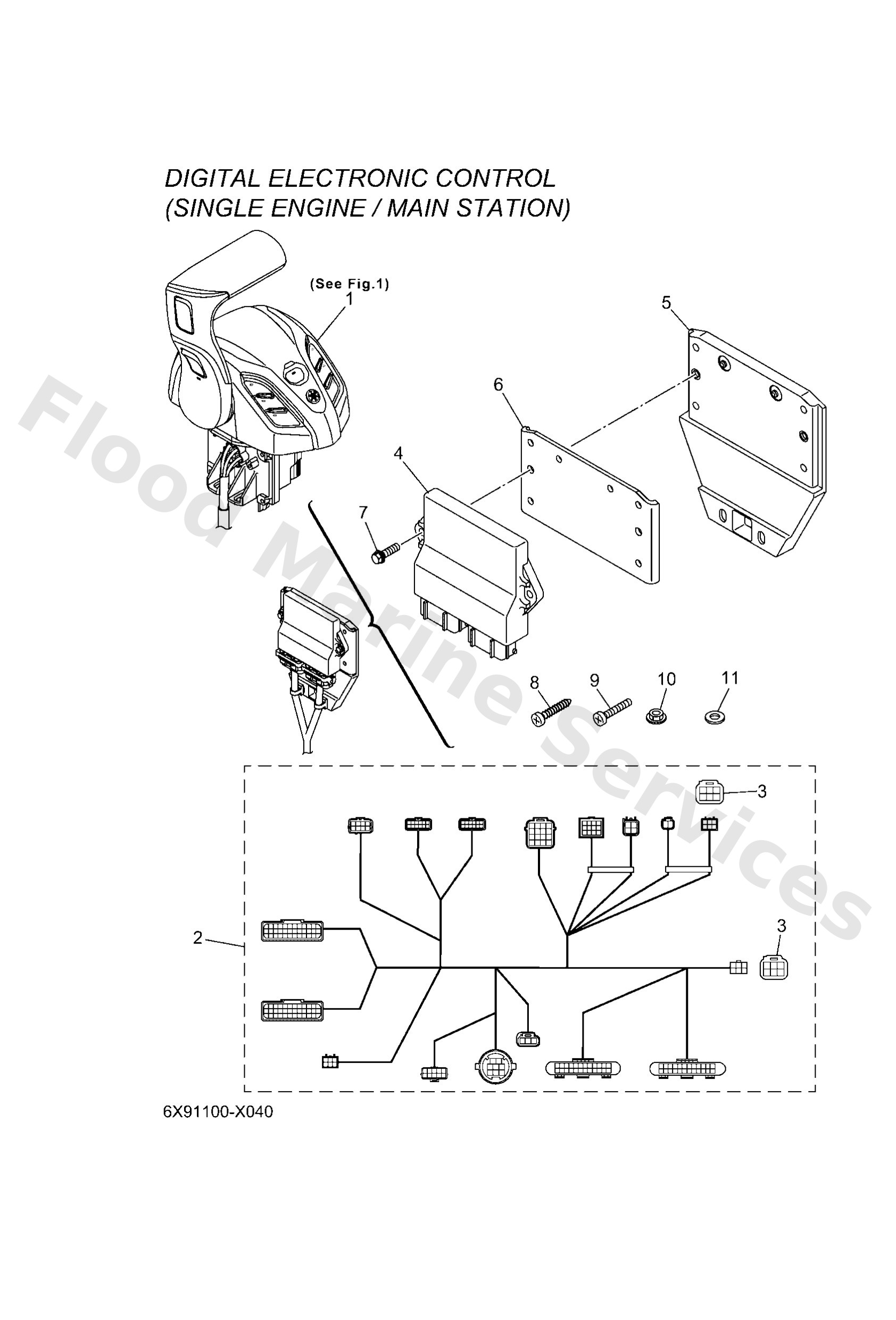

Diagram: DEC 4 (SINGLE/MAIN ST)

Diagram

Parts List

6X948A0110 (NOT FOR SALE)
Remote Control Box assembly 2
Diagram Reference: 1
Get Part
6X98258060
Wire harness assembly 2
Diagram Reference: 2
Get Part
6Y88537101
End of line resister
Diagram Reference: 3
Get Part
6X68559050
Control unit assembly
Diagram Reference: 4
Get Part
6X94821110
Housing,1
Diagram Reference: 5
Get Part
6X94821B00
Housing,3
Diagram Reference: 6
Get Part
9010506106
Bolt, flange
Diagram Reference: 7
Get Part
6X94812800
Screw 2
Diagram Reference: 8
Get Part
9015706M13
Screw, pan head(6h4)
Diagram Reference: 9
Get Part
9578006300
Nut, nylon (6g1)
Diagram Reference: 10
Get Part
90201065F1
Washer, plate(j41)
Diagram Reference: 11
