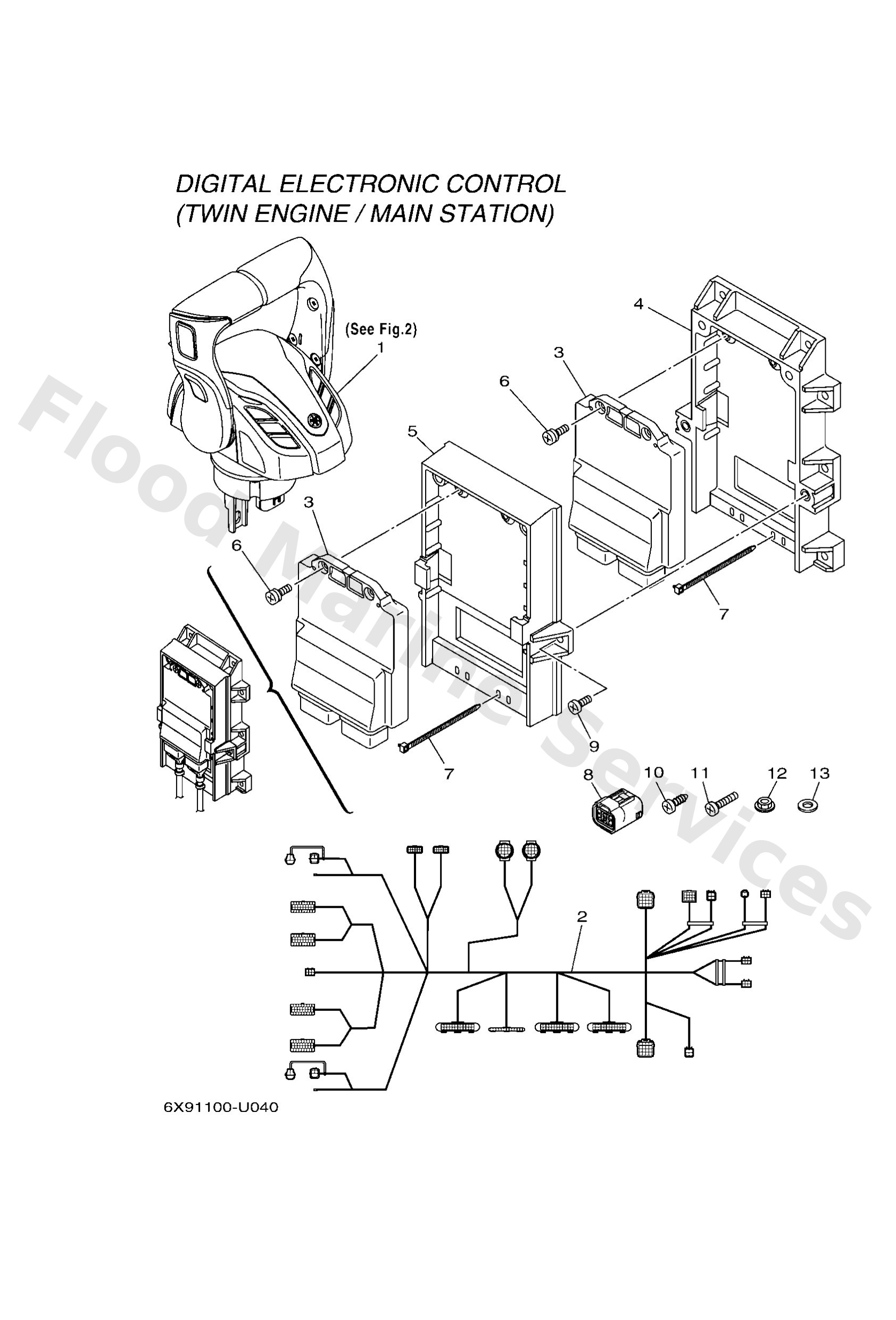

Diagram: DEC 4 (TWIN/MAIN ST)
Parts List
Remote control box
Diagram Reference: 1
Wire Harness assembly 2
Diagram Reference: 2
Control unit assembly
Diagram Reference: 3
Housing,1
Diagram Reference: 4
Hsg. , 2
Diagram Reference: 5
Screw,w/washer
Diagram Reference: 6
Clamp (6e5)
Diagram Reference: 7
End of line resister
Diagram Reference: 8
Screw, pan head(3tj)
Diagram Reference: 9
Screw, tapping (6h4)
Diagram Reference: 10
Screw, pan head(6h4)
Diagram Reference: 11
Nut, nylon (6g1)
Diagram Reference: 12
Washer, plate (6a1)
