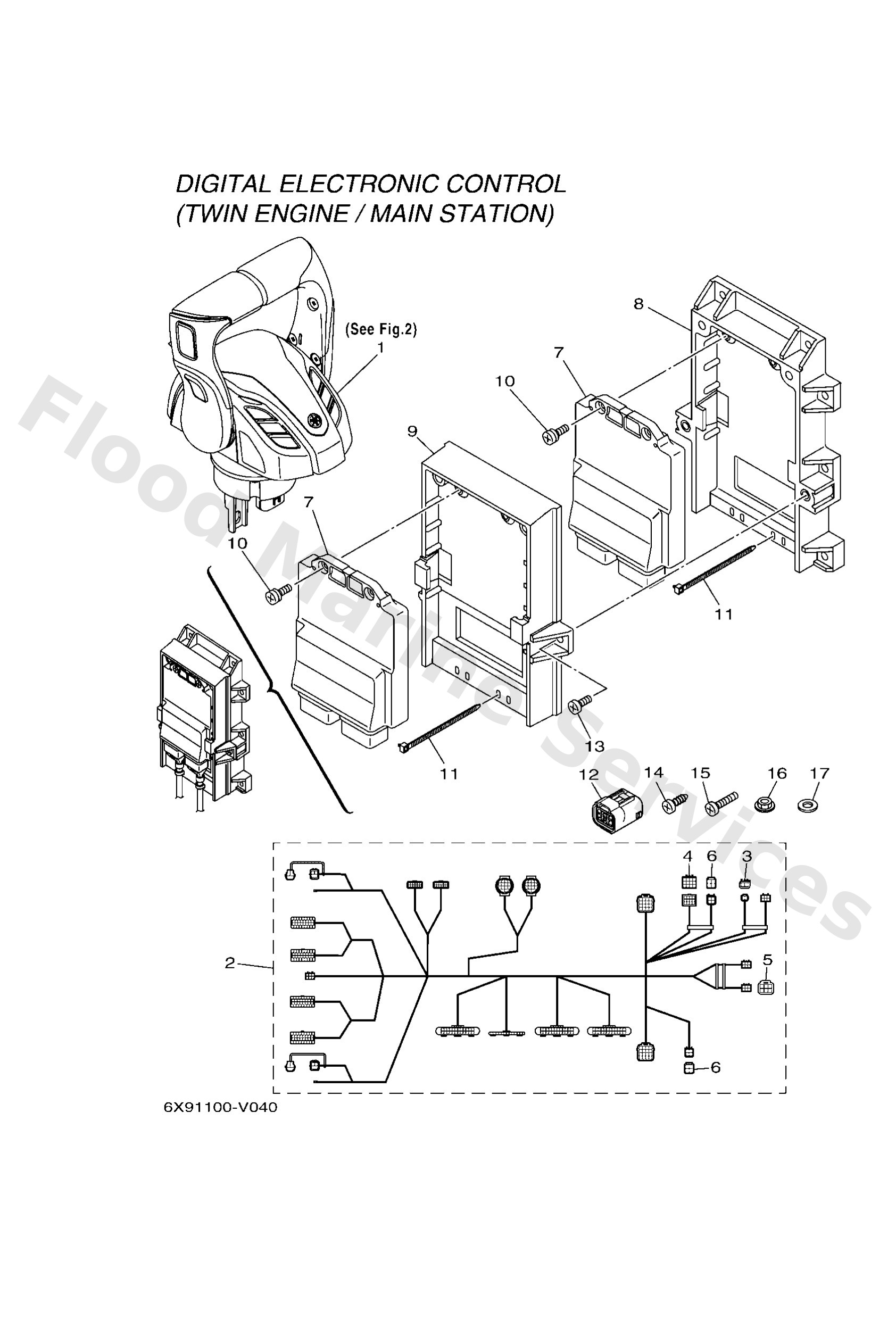

Diagram: DEC 5 (TWIN/MAIN ST)
Parts List
Wire harness assembly 2
Diagram Reference: 2
Cap 1 (2p)
Diagram Reference: 3
Cap 1 (12p)
Diagram Reference: 4
Cap 1 (6p)
Diagram Reference: 5
White cap 1 (4pin)
Diagram Reference: 6
Control unit assembly
Diagram Reference: 7
Housing,1
Diagram Reference: 8
Hsg. , 2
Diagram Reference: 9
Screw,w/washer
Diagram Reference: 10
Clamp (6e5)
Diagram Reference: 11
End of line resister
Diagram Reference: 12
Screw, pan head(3tj)
Diagram Reference: 13
Screw, tapping (6h4)
Diagram Reference: 14
Screw, pan head(6h4)
Diagram Reference: 15
Nut, nylon (6g1)
Diagram Reference: 16
Washer, plate (6a1)
Diagram Reference: 17
