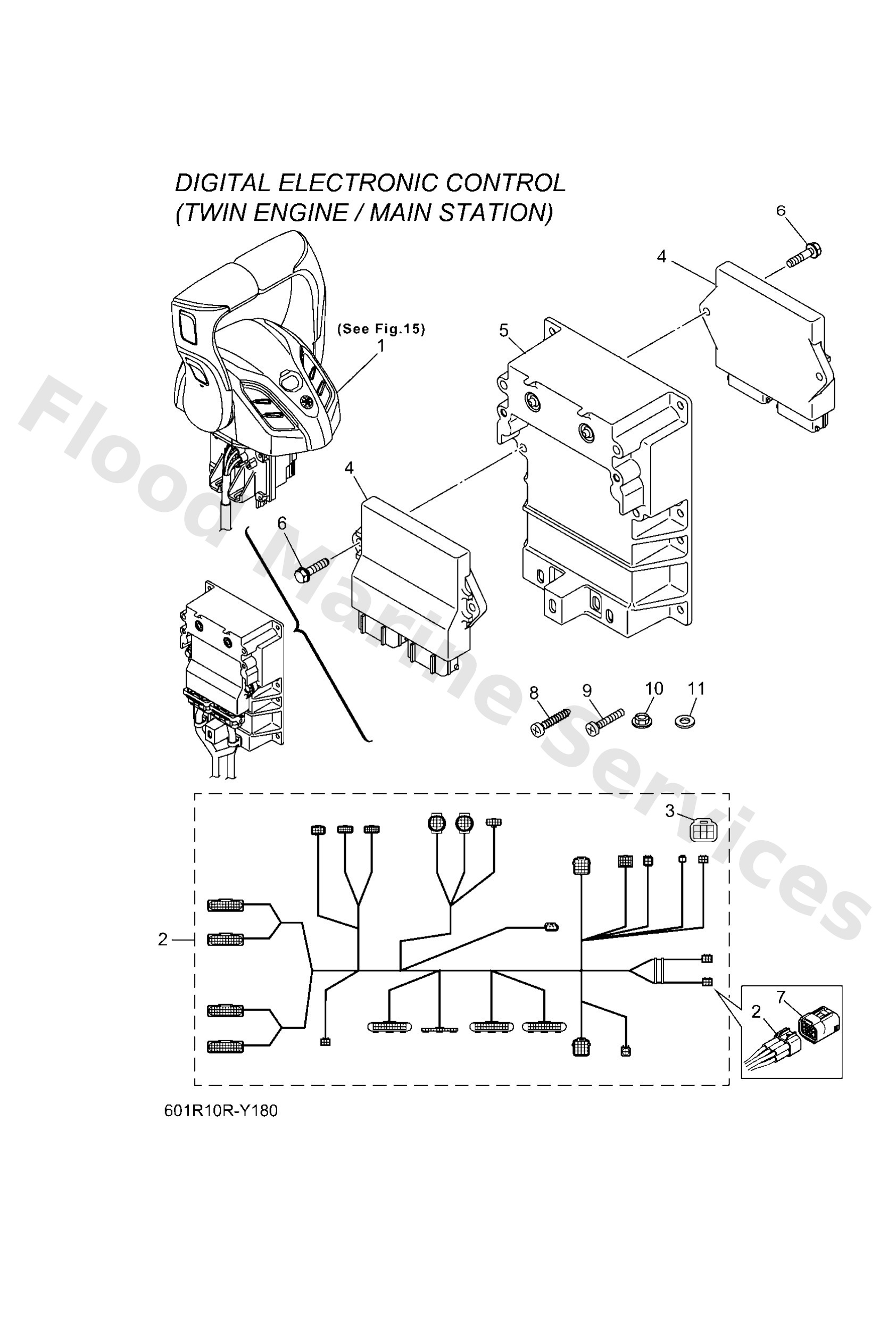

Diagram: DEC 5 (TWIN/MAIN ST)

Diagram

Parts List

6X948A0210 (ASK TO MARINE DIV)
Remote Control Box assembly 3
Diagram Reference: 1
Get Part
6X98258070
Wire harness assembly 2
Diagram Reference: 2
Get Part
6Y88537101
End of line resister
Diagram Reference: 3
Get Part
6X68559050
Control unit assembly
Diagram Reference: 4
Get Part
6X94821A10
Housing, 2
Diagram Reference: 5
Get Part
6X94817100
Bolt
Diagram Reference: 6
Get Part
6X94812800
Screw 2
Diagram Reference: 8
Get Part
9015706M13
Screw, pan head(6h4)
Diagram Reference: 9
Get Part
9578006300
Nut, nylon (6g1)
Diagram Reference: 10
Get Part
90201065F1
Washer, plate(j41)
Diagram Reference: 11
Get Part
