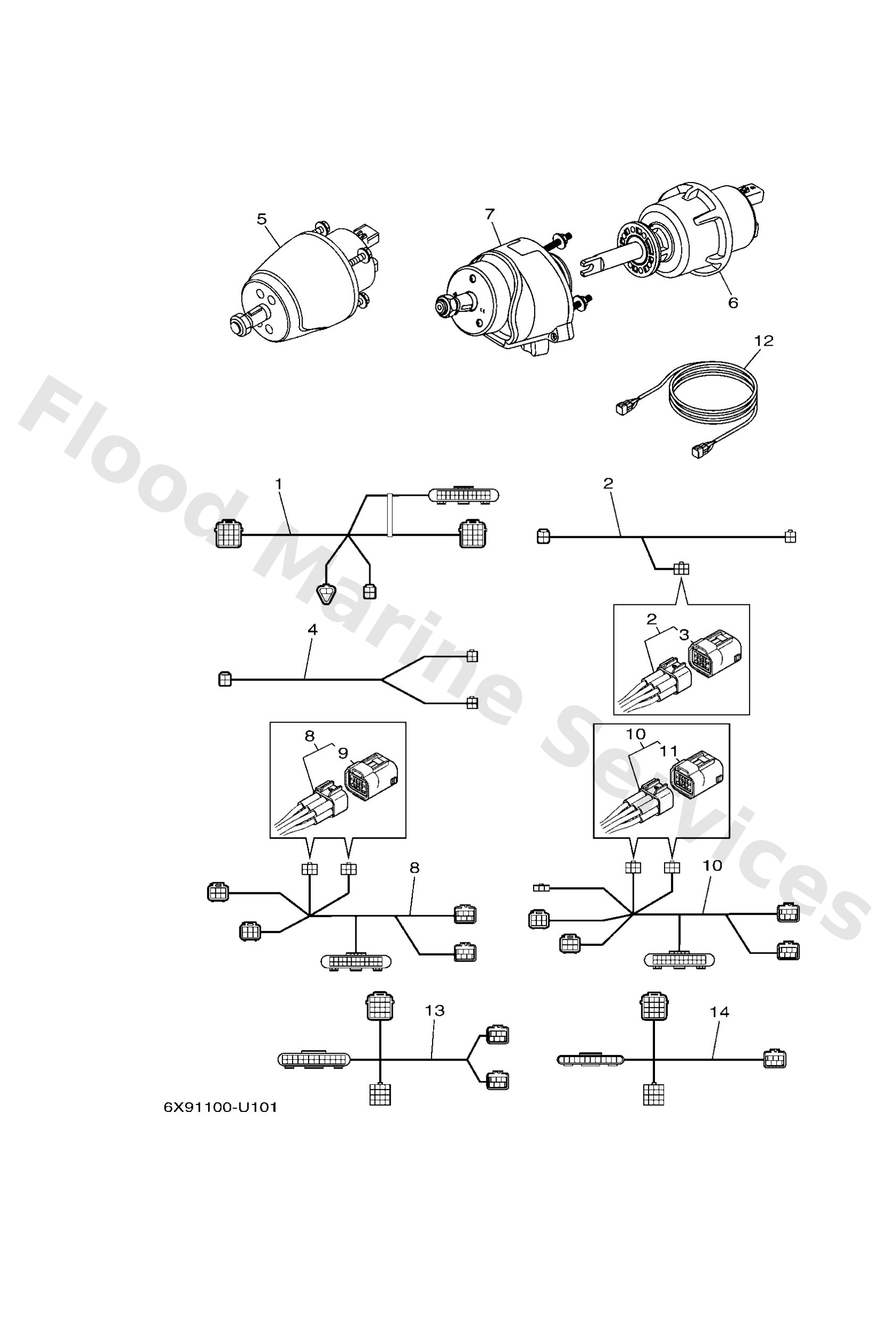

Diagram: DES 2

Diagram

Parts List

6X98258A90 (SCU to 16-PIN)

Extn.wire harness 2

Diagram Reference: 1

6X98111500 (UR PORT/STBD ENGINE)

Scu link harness 0.3m-1ft p/s

Diagram Reference: 2

6GR8111510 (UR PORT/STBD ENGINE)

Scu link harness p/s 10ft

Diagram Reference: 2

6GR8111500 (UR PORT/STBD ENGINE)

Scu link harness p/s 5ft

Diagram Reference: 2

6Y88537101

End of line resister

Diagram Reference: 3

6GR8111530 (UR CENTER ENGINE)

Scu link harness center 10ft

Diagram Reference: 4

6GR8111520 (UR CENTER ENGINE)

Scu link harness center 5ft

Diagram Reference: 4

6X98111510 (UR CENTER ENGINE)

Scu link harness 0.3m-1ft (c)

Diagram Reference: 4

6X9615A010

Compact helm kit

Diagram Reference: 5

6GR615A000 (ASK TO MARINE DIV)

Helm unit assembly tilt (2)

Diagram Reference: 6

6GR6154A00 (ASK TO MARINE DIV)

-

Diagram Reference: 7

6X98258AA1 (SINGLE ENGINE (2ND ST))

Helm Harness 0.9M-3Ft

Diagram Reference: 8

6X98258AB1 (MULTIPLE ENGINES (2ND ST))

Helm harness 2nd station 0.9m

Diagram Reference: 10

6X68258A91 (1.5M-5FT MAIN-HARNESS (16P))

Extension, Wire Harness (1.5M)

Diagram Reference: 12

6GR8258A01 (UR SINGLE ENGINE (MAIN ST))

Helm harness (main/single 0.9m

Diagram Reference: 13

6GR8258A41 (UR SINGLE ENGINE (MAIN ST))

Helm harness (main/single)1.8m

Diagram Reference: 13

6GR8258A61 (UR MULTIPLE ENGINES (MAIN ST))

Helm harness multi engines 2.7

Diagram Reference: 14

6GR8258A11 (UR MULTIPLE ENGINES (MAIN ST))

Helm harness multi engines 0.9

Diagram Reference: 14

6GR8258A51 (UR MULTIPLE ENGINES (MAIN ST))

Helm harness multi engines 1.8

Diagram Reference: 14
