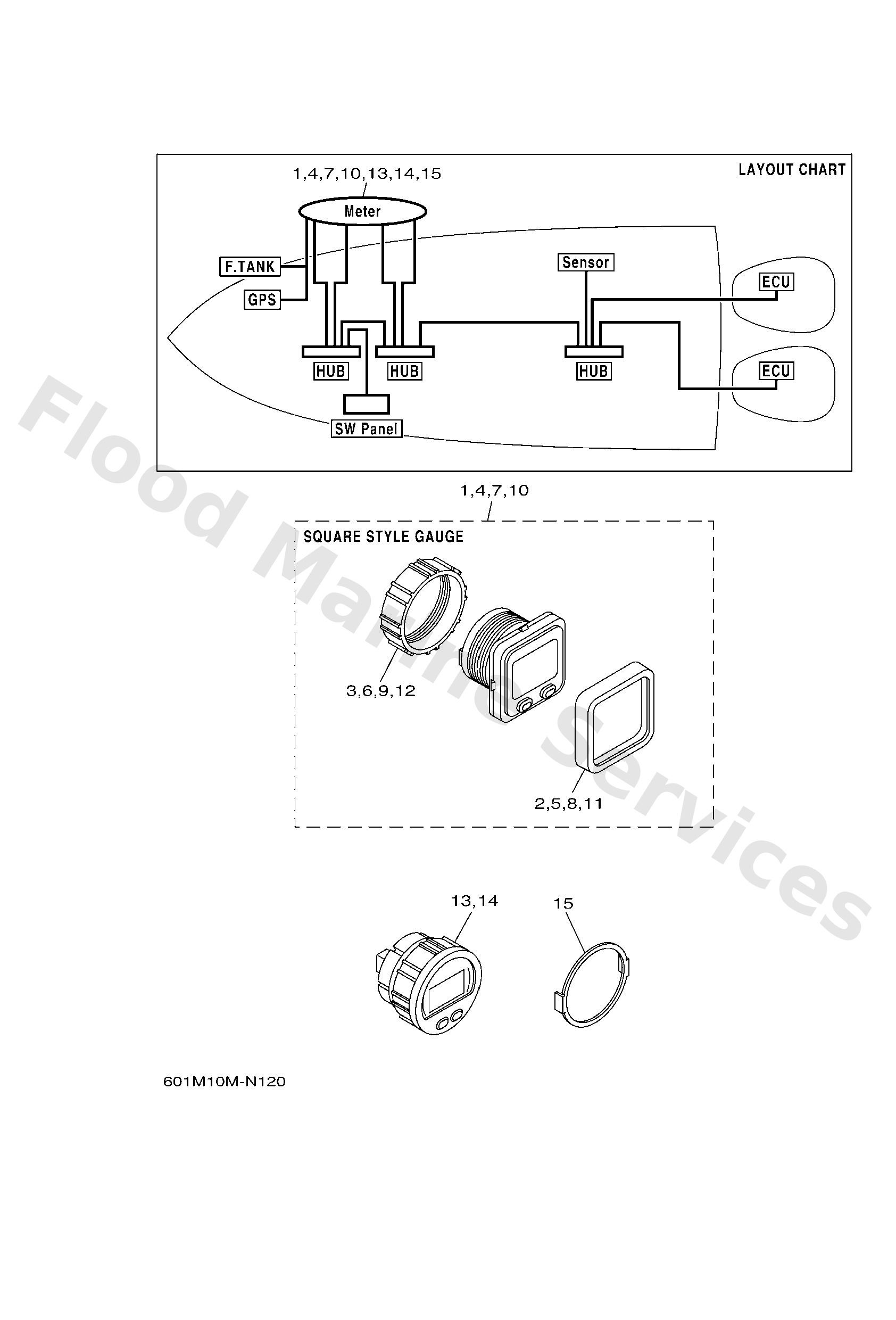

Diagram: DIGITAL NETWORK GAUGE 1

Diagram

Parts List

6Y88350T01

Tachometer, sq

Diagram Reference: 1

6Y88336300

Bezel, square

Diagram Reference: 2

6Y88438300

Nut, ring

Diagram Reference: 3

6Y88350S01

Speedometer, Sq

Diagram Reference: 4

6Y88350F01 (FUEL MANAGEMENT)

Fl mgt meter, sq

Diagram Reference: 7

6Y88350001 (SPEED & FUEL)

S&fm meter, sq

Diagram Reference: 10

6Y88350T20

Tachometer, rd

Diagram Reference: 13

6Y88350020 (SPEED & FUEL)

S & fm meter, rd

Diagram Reference: 14

6Y88351400 (UN)

Plate, fitting

Diagram Reference: 15
