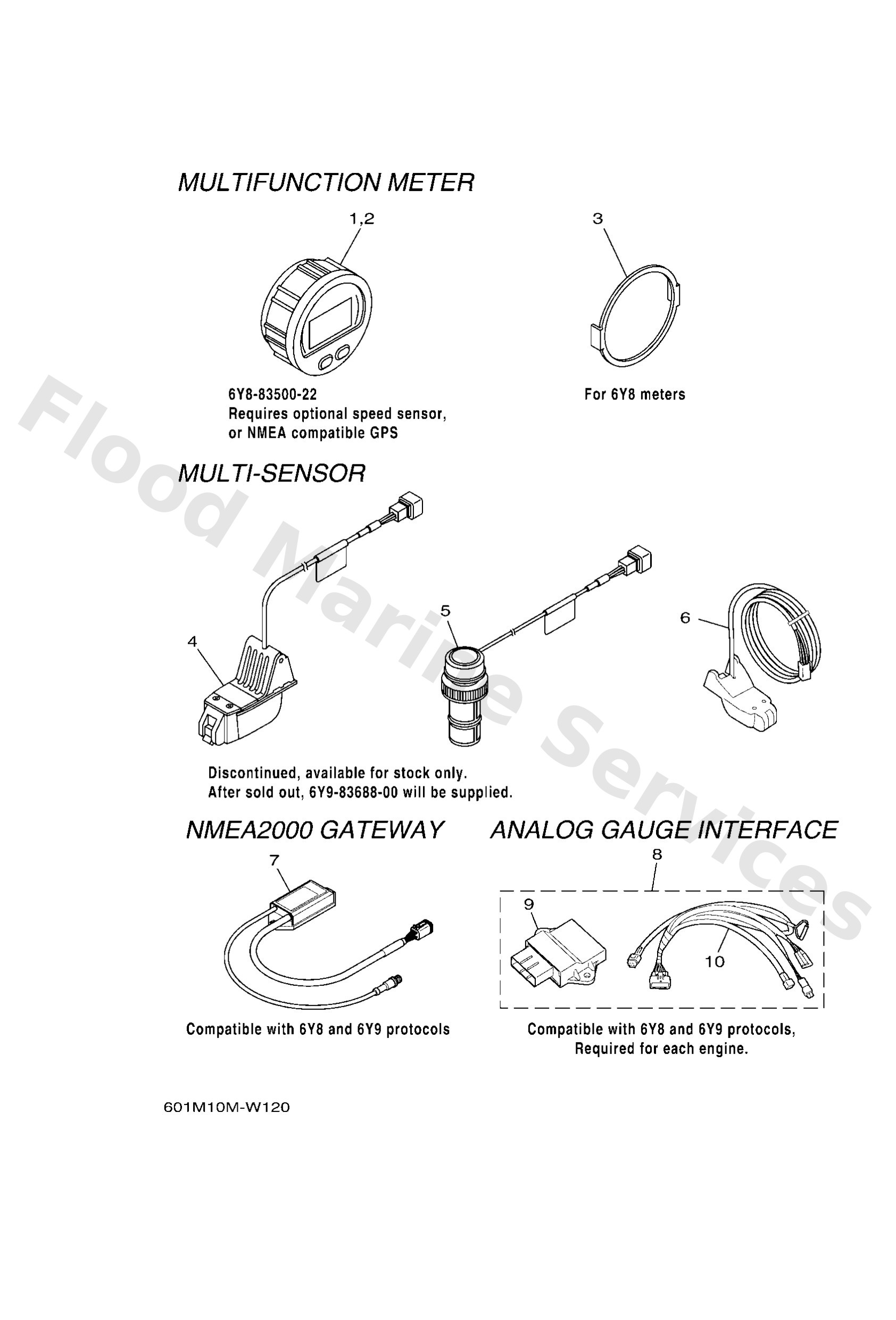

Diagram: DIGITAL NETWORK GAUGE 1

Diagram

Parts List

6Y88350T22
Tachometer, rd
Diagram Reference: 1
Get Part
6Y88350022 (SPEED & FUEL)
S & fm meter, rd
Diagram Reference: 2
Get Part
6Y88351400 (UN)
Plate, fitting
Diagram Reference: 3
Get Part
6Y88368801
Transom Mount Triducer
Diagram Reference: 4
Get Part
6Y88368811 (PLASTIC BODY)
Plastic Thru-Hull Triducer
Diagram Reference: 5
Get Part
6Y98368800
Sensor assembly
Diagram Reference: 6
Get Part
9999904422 (GATEWAY)
Interface Unit Set
Diagram Reference: 7
Get Part
6YHW8A2D00 (ANALOGE GAUGE)
-
Diagram Reference: 8
Get Part
6YH8A2D000
Analog gauge interface
Diagram Reference: 9
Get Part
6YH8252100
Agi harness
Diagram Reference: 10
Get Part
