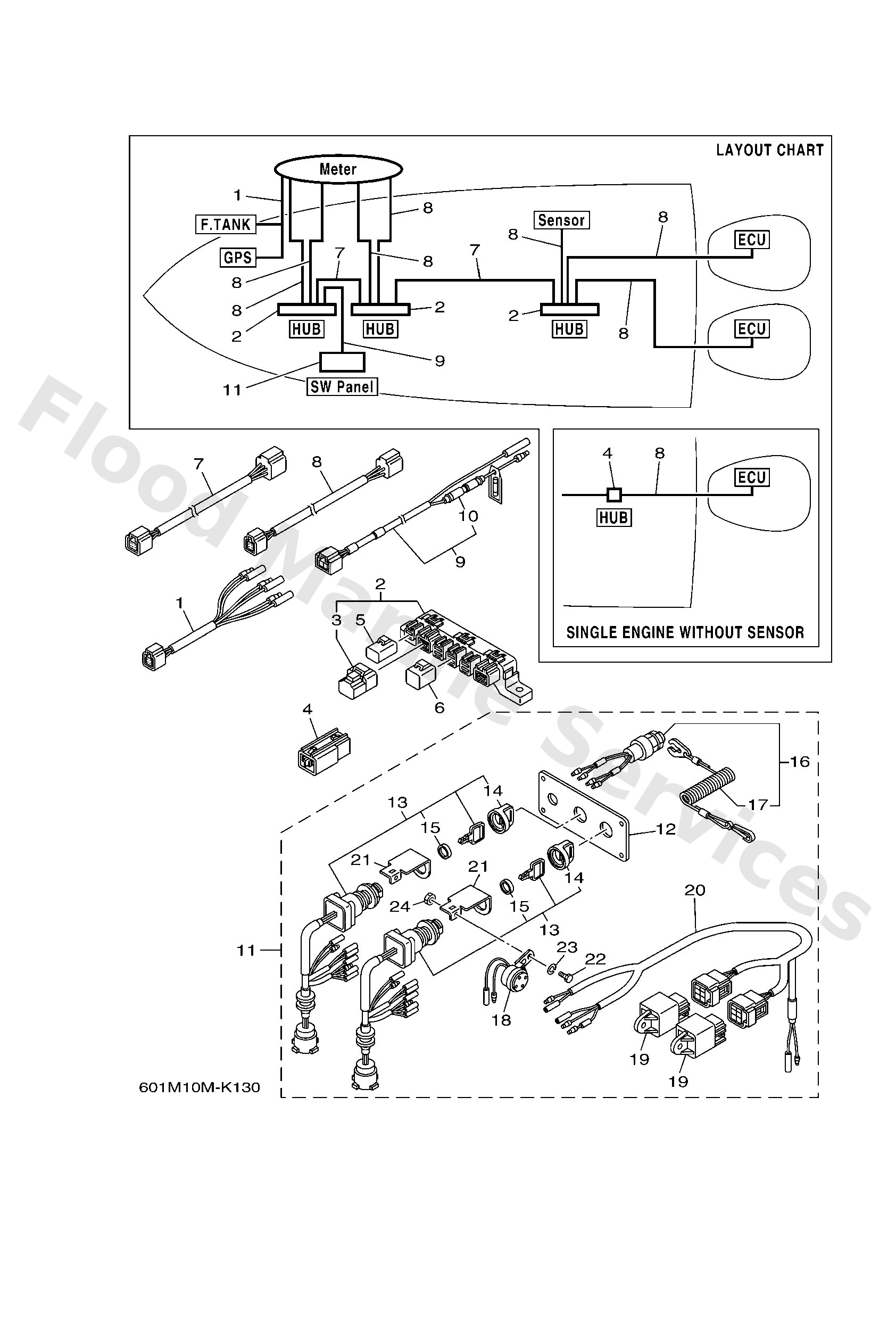

Parts List
Lead, fuel tank & gps sender
Diagram Reference: 1
Multi-hub
Diagram Reference: 2
End of line resister
Diagram Reference: 3
Single-hub
Diagram Reference: 4
Red cap 1 (2pin)
Diagram Reference: 5
White cap 1 (4pin)
Diagram Reference: 6
Main bus wire 0.3m-1ft
Diagram Reference: 7
Main bus wire 4.6m (15ft)
Diagram Reference: 7
Main bus wire 6.1m (20ft)
Diagram Reference: 7
Main bus wire 7.6m (25ft)
Diagram Reference: 7
Main bus wire 9.1m (30ft)
Diagram Reference: 7
Main bus wire 3.0m-10ft
Diagram Reference: 7
Pigtail bus wire 3.6m-12ft
Diagram Reference: 8
9ft pigtail bus
Diagram Reference: 8
Pigtail bus wire 1.8m-6ft
Diagram Reference: 8
Pigtail bus wire 0.6m-2ft
Diagram Reference: 8
1ft pigtail bus
Diagram Reference: 8
Pigtail bus wire 0.9m-3ft
Diagram Reference: 8
8ft power wire
Diagram Reference: 9
Fuse (10a)
Diagram Reference: 10
Panel switch assembly
Diagram Reference: 11
Plate, panel switch
Diagram Reference: 12
Main switch assembly
Diagram Reference: 13
Cap, key
Diagram Reference: 14
Cap
Diagram Reference: 15
Engine stop switch assembly
Diagram Reference: 16
Lanyard, stop switch
Diagram Reference: 17
Buzzer
Diagram Reference: 18
Relay assembly
Diagram Reference: 19
Lead, ignition switch relay
Diagram Reference: 20
Stay, cord clamp
Diagram Reference: 21
Bolt
Diagram Reference: 22
Ybs67-5 washer, spring
Diagram Reference: 23
Nut (656)
Diagram Reference: 24
