Yamaha Outboard Parts - DIGITAL NETWORK GAUGE 3 - RIGGING - METER (2014)

6Y88368801

Transom Mount Triducer

Diagram Reference: 1

6Y88368811 (PLASTIC BODY)

Plastic Thru-Hull Triducer

Diagram Reference: 2

6Y88368820 (BRONZE BODY)

Bronze Thru-Hull Triducer

Diagram Reference: 3

6Y88252101 (UR)

1ft pigtail bus

Diagram Reference: 4

6Y88252111 (UR)

Pigtail bus wire 0.6m-2ft

Diagram Reference: 4

6Y88252121 (UR)

Pigtail bus wire 0.9m-3ft

Diagram Reference: 4

6Y88252131 (UR)

Pigtail bus wire 1.8m-6ft

Diagram Reference: 4

6Y88252141 (UR)

9ft pigtail bus

Diagram Reference: 4

6Y88252151 (UR)

Pigtail bus wire 3.6m-12ft

Diagram Reference: 4

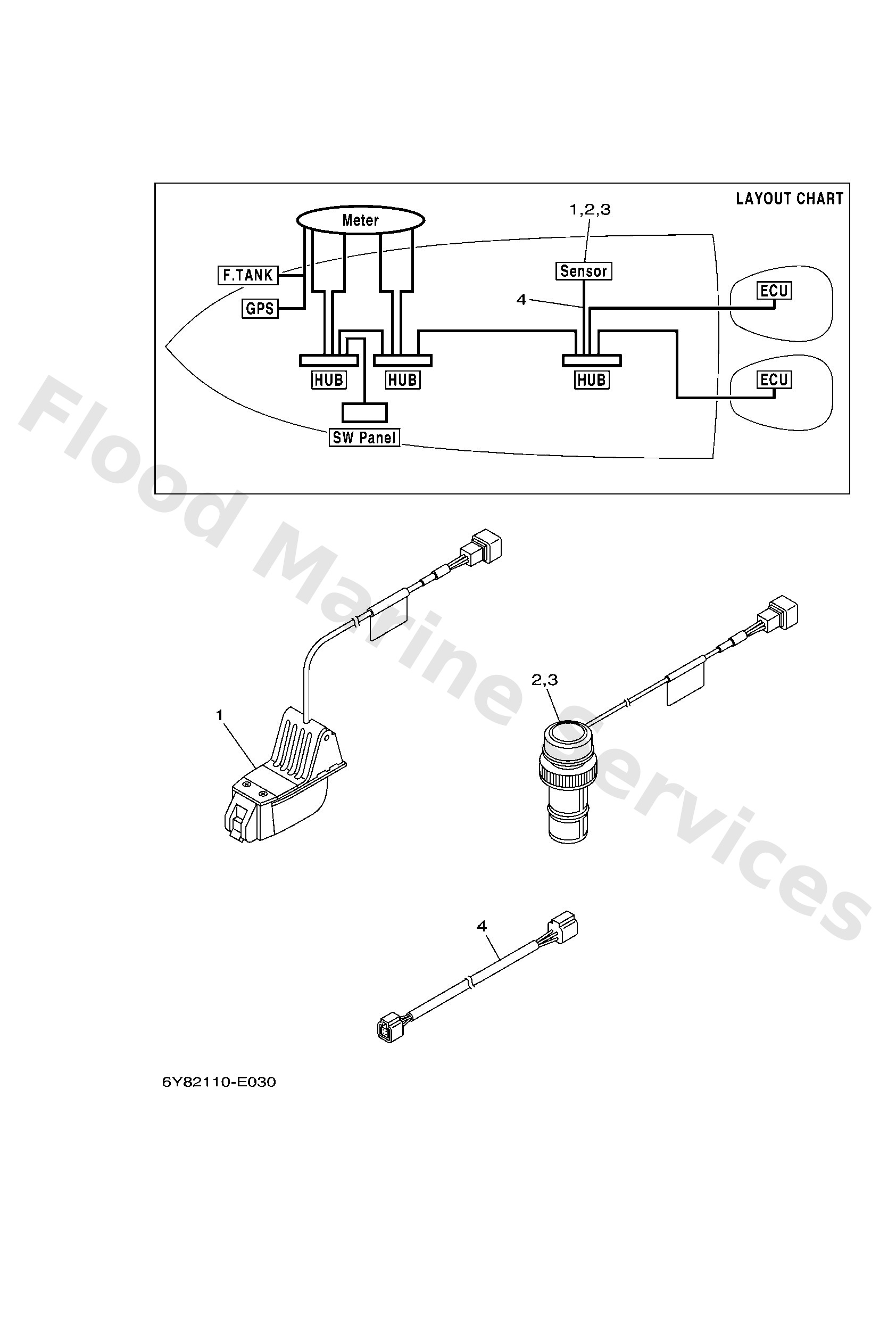

Diagram: DIGITAL NETWORK GAUGE 3
