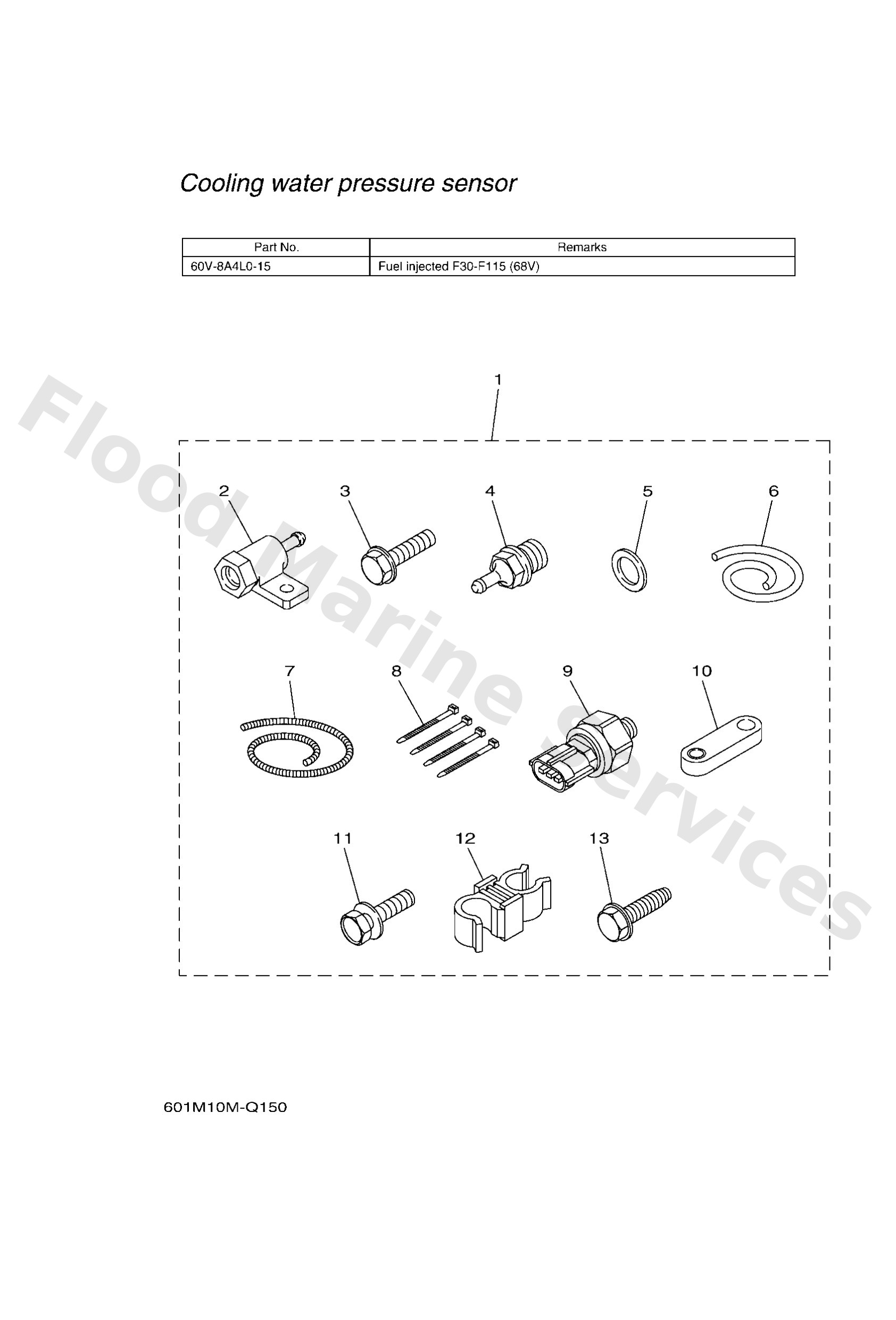

Diagram: DIGITAL NETWORK GAUGE 4
Parts List
Sensor, module
Diagram Reference: 1
Adaptor, input
Diagram Reference: 2
Bolt, flange deep recess
Diagram Reference: 3
Sender, water pressure
Diagram Reference: 4
Gasket (663)
Diagram Reference: 5
Hose (l1457)
Diagram Reference: 6
Hose, cover (l: 1300mm)
Diagram Reference: 7
Clamp
Diagram Reference: 8
Sensor, water pressure
Diagram Reference: 9
Plate, connector
Diagram Reference: 10
Bolt, with washer(6r6)
Diagram Reference: 11
Clamp
Diagram Reference: 12
Bolt
Diagram Reference: 13
