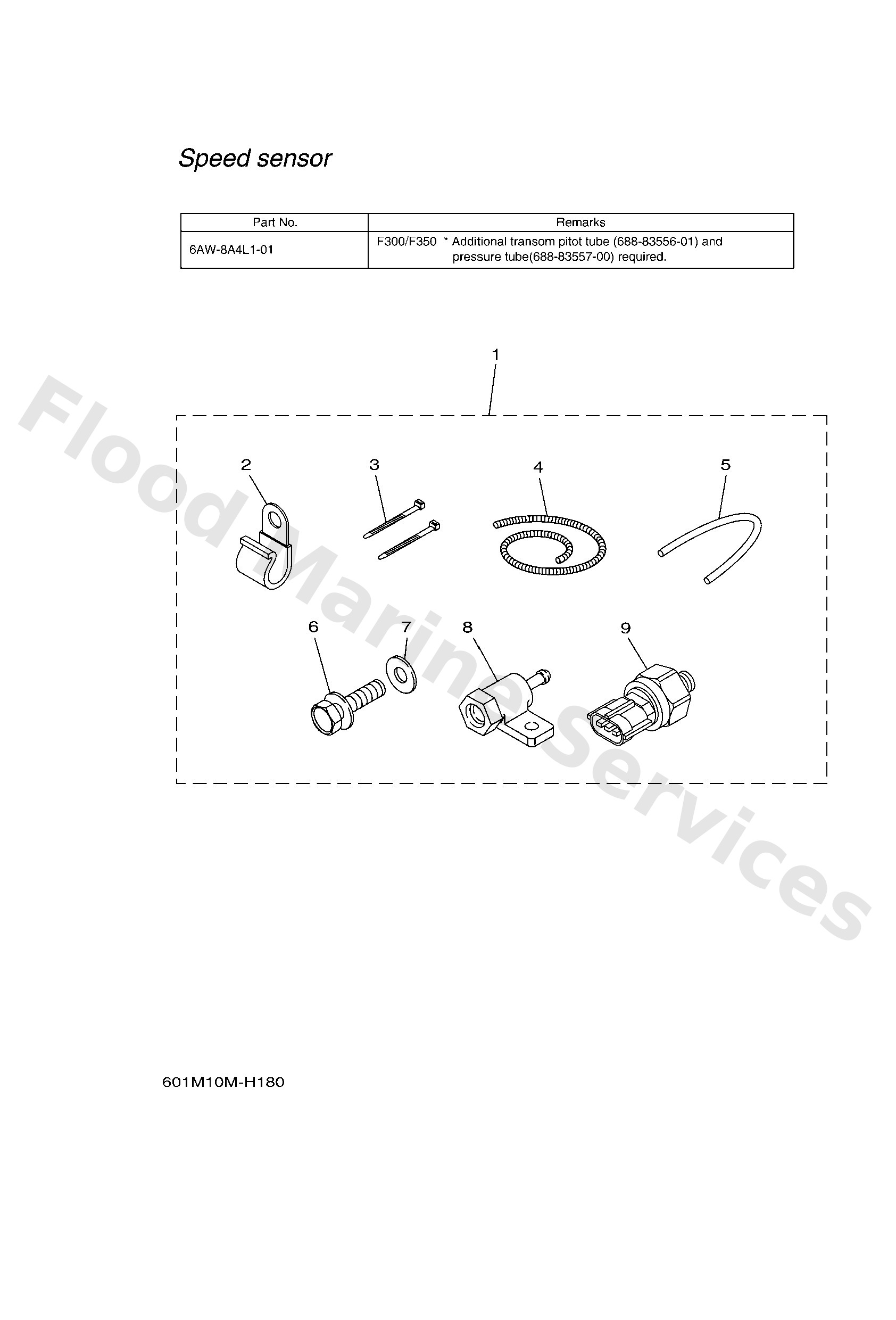

Diagram: DIGITAL NETWORK GAUGE 7

Diagram

Parts List

6AW8A4L101
Sensor, module 1
Diagram Reference: 1
Get Part
9046506M86
Clamp
Diagram Reference: 2
Get Part
9046514M66
Clamp
Diagram Reference: 3
Get Part
9044707015
Hose, cover (l: 1300mm)
Diagram Reference: 4
Get Part
9044507018
Hose (l1457)
Diagram Reference: 5
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 6
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 7
Get Part
60V8366D00
Adaptor, input
Diagram Reference: 8
Get Part
6AW8366B00
Sensor, water pressure
Diagram Reference: 9
Get Part
