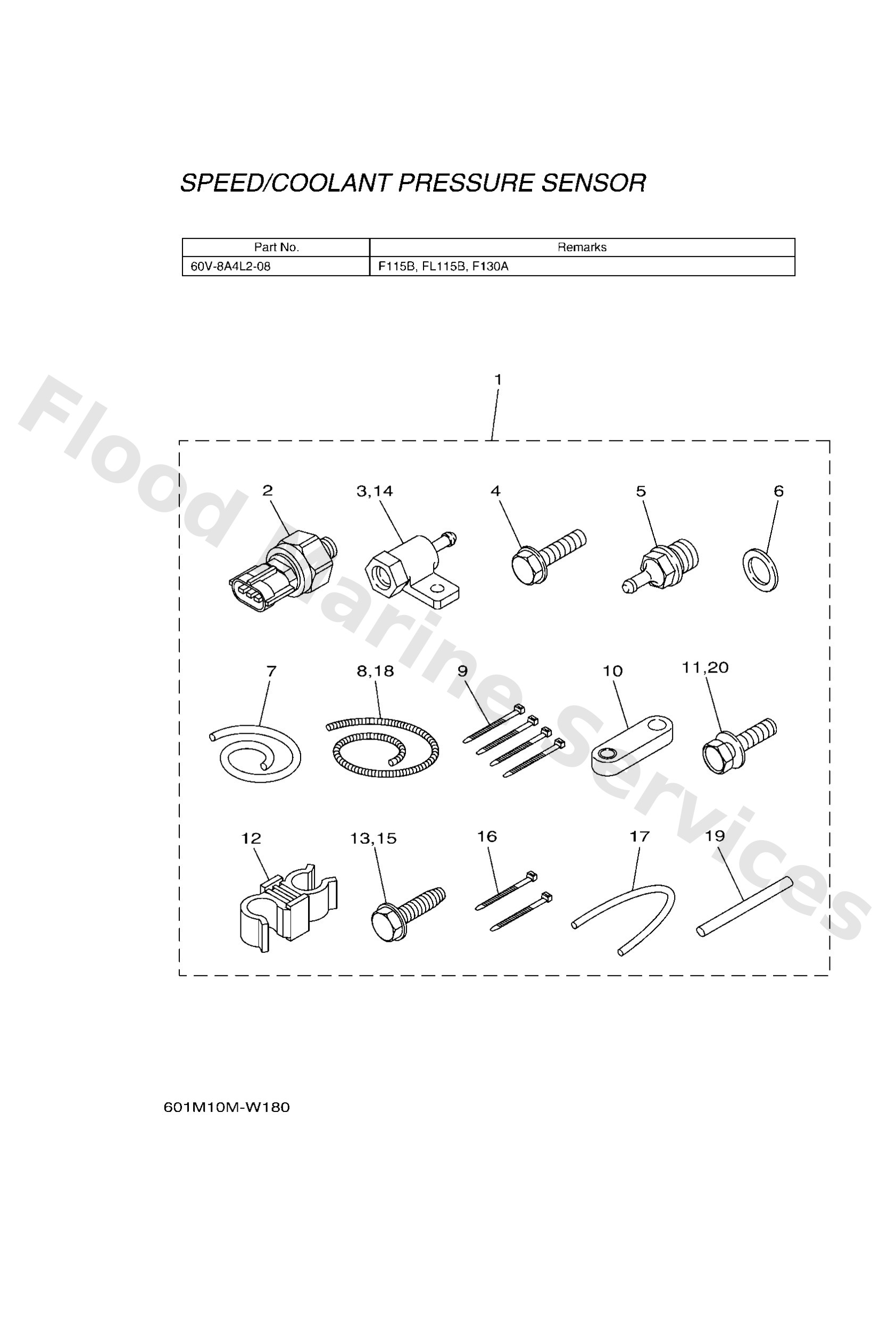

Diagram: DIGITAL NETWORK GAUGE 7

Diagram

Parts List

60V8A4L208
Sensor, Module 2
Diagram Reference: 1
Get Part
6AW8366B10
Sensor, water pressure
Diagram Reference: 2
Get Part
60V8366D00
Adaptor, input
Diagram Reference: 3
Get Part
95D9506025
Bolt, flange deep recess
Diagram Reference: 4
Get Part
60V8366700
Sender, water pressure
Diagram Reference: 5
Get Part
9043014115
Gasket (663)
Diagram Reference: 6
Get Part
9044507018
Hose (l1457)
Diagram Reference: 7
Get Part
9044707015
Hose, cover (l: 1300mm)
Diagram Reference: 8
Get Part
9046511M10
Clamp
Diagram Reference: 9
Get Part
60V8257V00
Plate, connector
Diagram Reference: 10
Get Part
97E9506516
Bolt, hexagon w/w deep recess
Diagram Reference: 11
Get Part
9046409021
Clamp
Diagram Reference: 12
Get Part
9010906M81
Bolt
Diagram Reference: 13
Get Part
9044507017
Hose (l550)
Diagram Reference: 17
Get Part
9044707013
Hose, cover (l: 700mm)
Diagram Reference: 18
Get Part
60V4262901
Seal
Diagram Reference: 19
Get Part
