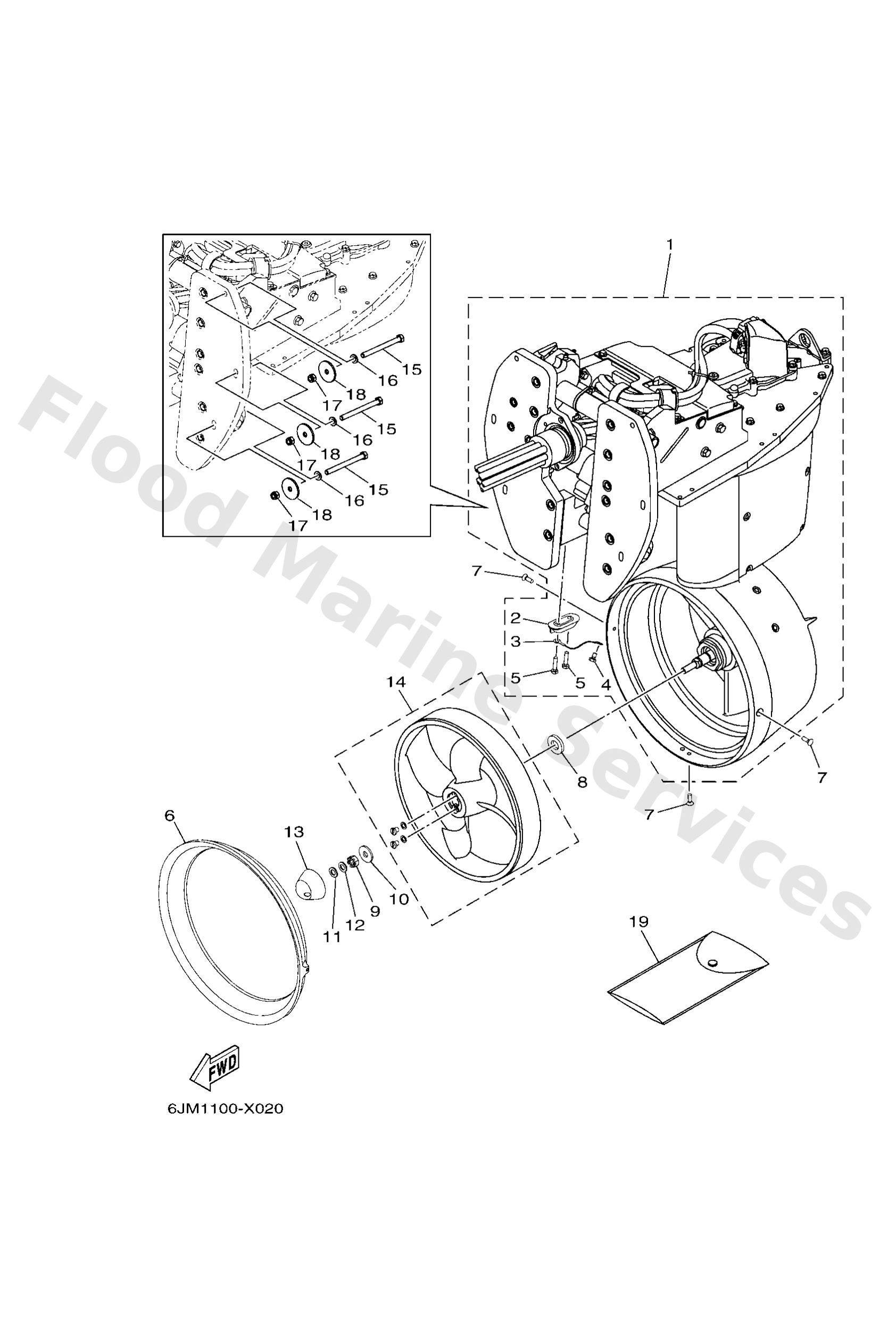

Diagram: DRIVE UNIT

Diagram

Parts List

6JMW450A00P0
Drive unit
Diagram Reference: 1
Get Part
65W4525100
Anode
Diagram Reference: 2
Get Part
6E58214800
Wire, lead 5
Diagram Reference: 3
Get Part
97E9506510
Bolt, hexagon w/w deep recess
Diagram Reference: 4
Get Part
9010106020
Bolt
Diagram Reference: 5
Get Part
6JM1269200P0
Duct, 2
Diagram Reference: 6
Get Part
9015205M02
Screw, countersunk
Diagram Reference: 7
Get Part
9020117M00
Washer, plate(6h1)
Diagram Reference: 8
Get Part
9017110M01
Nut castle (683)
Diagram Reference: 9
Get Part
9020110M01
Washer, plate(6m7)
Diagram Reference: 10
Get Part
9299510600
Washer, plate
Diagram Reference: 11
Get Part
9299010100
Ybs67-10 washer, spring
Diagram Reference: 12
Get Part
6JM4598500P0
Cap, propeller
Diagram Reference: 13
Get Part
6JMW511A00P0
Impeller 1
Diagram Reference: 14
Get Part
9010108M88
Bolt (6g8)
Diagram Reference: 15
Get Part
9299008600
Washer, plain (663)
Diagram Reference: 16
Get Part
9018508057
Nut, nylon (6j8)
Diagram Reference: 17
Get Part
9020108MA4
Washer, plate (6g8)
Diagram Reference: 18
Get Part
6JMW281000
Tool kit
Diagram Reference: 19
Get Part
