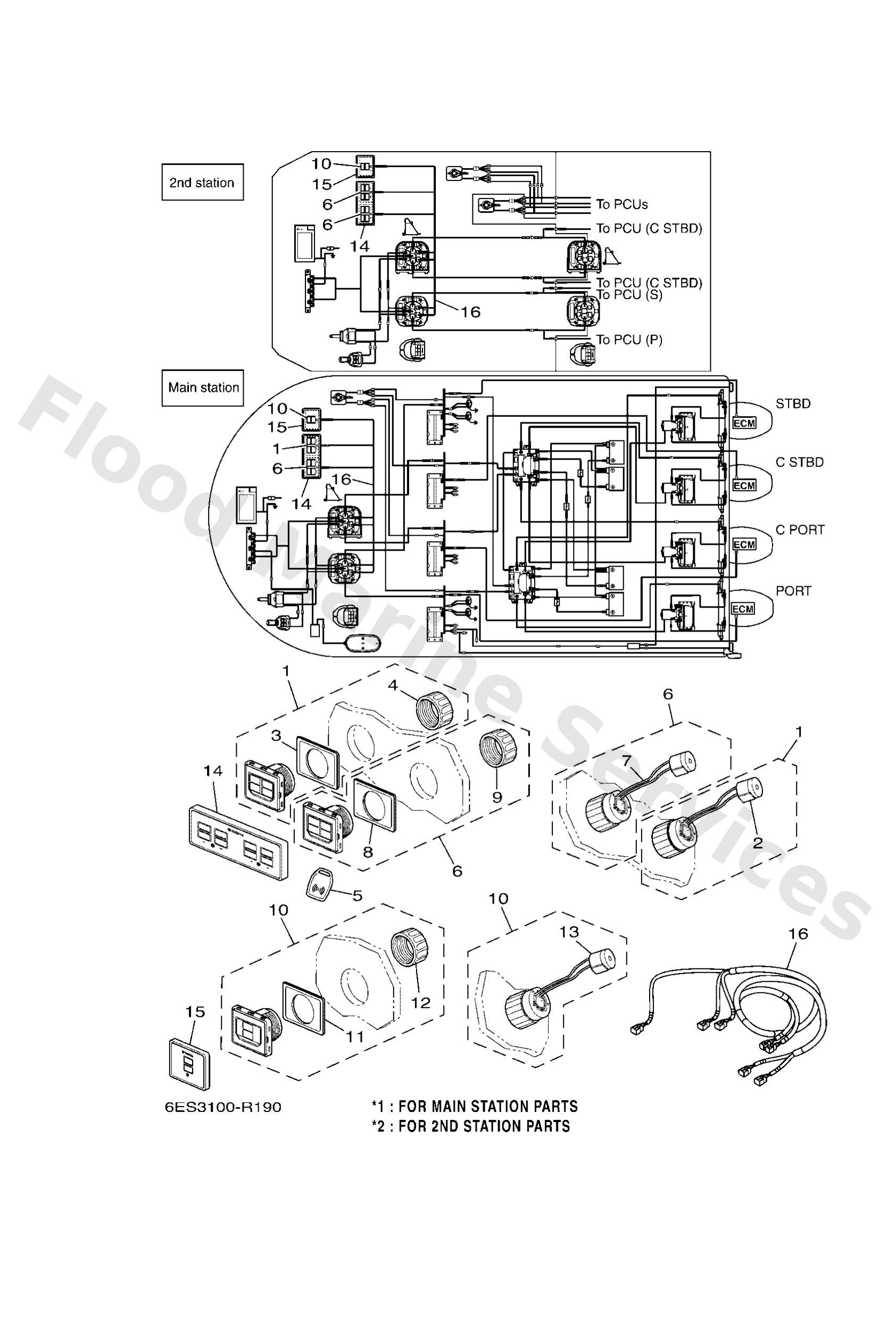

Diagram: EKS ASSY (QUAD)

Diagram

Parts List

6ES8251012 (*1 ASK TO MARINE DIV)
Eks assembly, Without Ek Fob
Diagram Reference: 1
Get Part
6ES8338300
Buzzer
Diagram Reference: 2
Get Part
6ES8254300
Gasket
Diagram Reference: 3
Get Part
6ES4815600
Nut 1
Diagram Reference: 4
Get Part
6ES8251100 (*1 ASK TO MARINE DIV)
Key, main switch
Diagram Reference: 5
Get Part
6ES8251022 (ASK TO MARINE DIV)
Main switch assembly
Diagram Reference: 10
Get Part
6ES8256820
Eks cover (quad)
Diagram Reference: 14
Get Part
6ES8256830
Eks cover (quad all)
Diagram Reference: 15
Get Part
6ES8258A60
Eks Harness (Quad)
Diagram Reference: 16
Get Part
