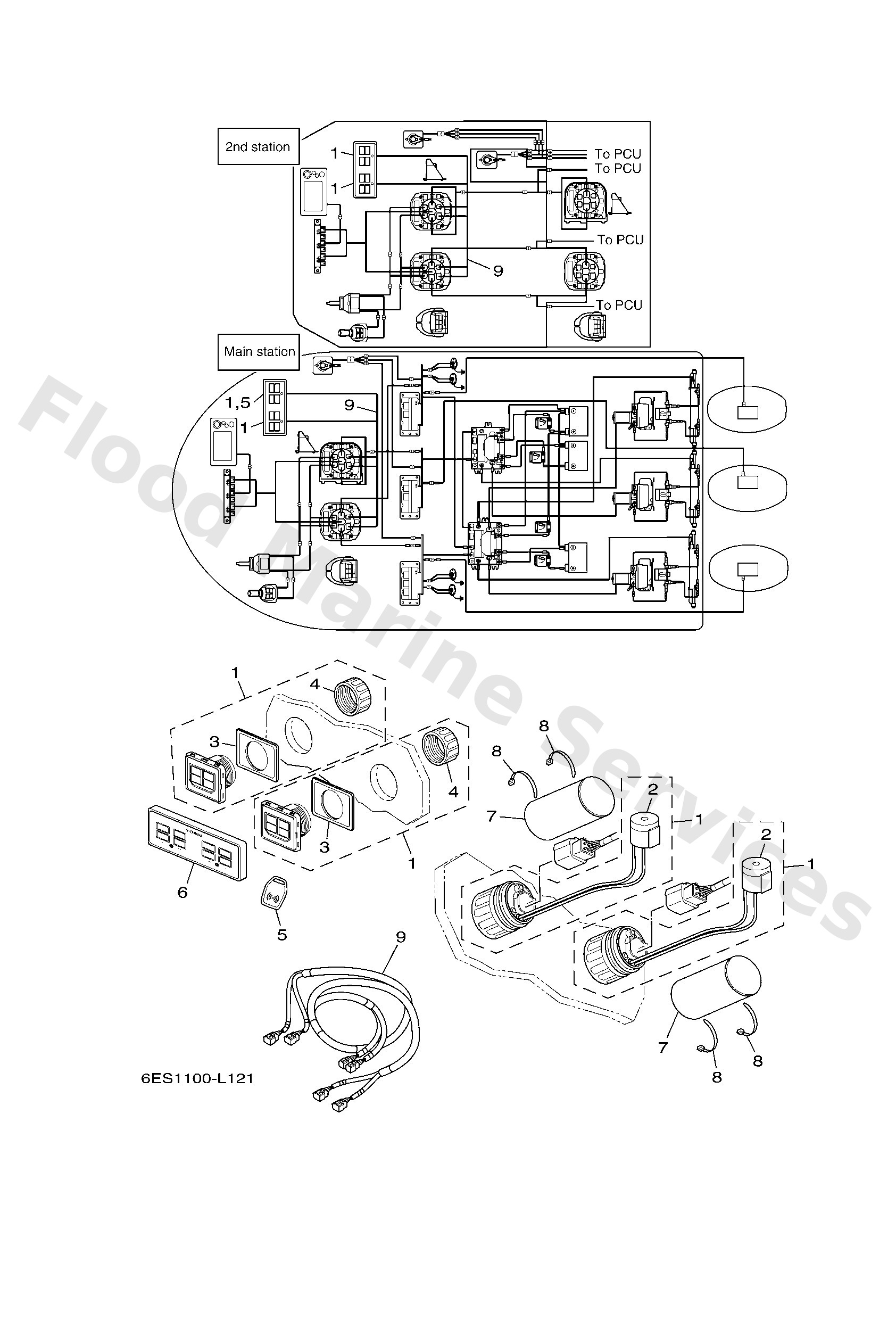

Diagram: EKS ASSY (TRIPLE)

Diagram

Parts List

6ES8251010 (ASK TO MARINE DIV)
Eks assembly, Without Ek Fob
Diagram Reference: 1
Get Part
6ES8338300
Buzzer
Diagram Reference: 2
Get Part
6ES8254300
Gasket
Diagram Reference: 3
Get Part
6ES4815600
Nut 1
Diagram Reference: 4
Get Part
6ES8251100
Key, main switch
Diagram Reference: 5
Get Part
6ES8256810
Eks Cover (Triple)
Diagram Reference: 6
Get Part
6ES8259900
Cover, connecter
Diagram Reference: 7
Get Part
9046514M66
Clamp
Diagram Reference: 8
Get Part
6ES8258A50
Eks Harness (Triple)
Diagram Reference: 9
Get Part
