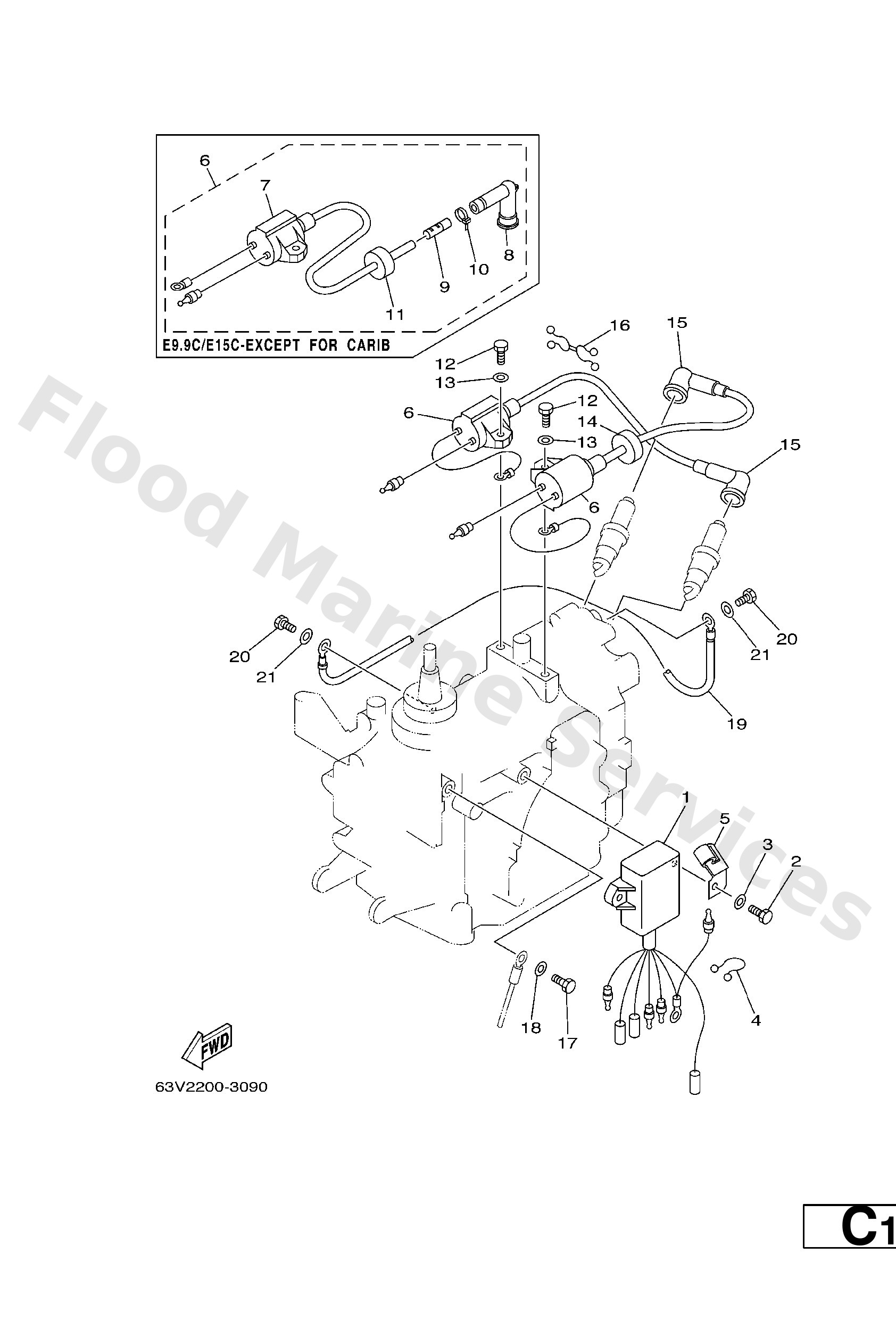

Diagram: ELECTRICAL

Diagram

Parts List

63V−85540−01

C.d.i. unit assembly

Diagram Reference: 1

97095−06020

Bolt(7u8)

Diagram Reference: 2

92995−06600

Washer, plain (646)

Diagram Reference: 3

90464−15M11

Clamp (3y2)

Diagram Reference: 4

90465−08M61

Clamp(63v)

Diagram Reference: 5

63V−85570−00 (E9.9C/E15C−CARIB)

Ignition coil assembly

Diagram Reference: 6

65E−85530−00 (EXCEPT CARIB)

Ignition Coil assembly

Diagram Reference: 6

65E−85570−00

Ignition coil assembly

Diagram Reference: 7

62E−82371−11

Cap, plug

Diagram Reference: 8

62E−8231X−00

Terminal 1

Diagram Reference: 9

90465−11M10

Clamp

Diagram Reference: 10

90480−25161 (E9.9C/E15C−CARIB)

Grommet(656)

Diagram Reference: 14

97095−06018

Bolt (fj0)

Diagram Reference: 12

663−82370−01

Plug cap assembly

Diagram Reference: 15

6E3−82370−21 (E9.9C/E15C−CARIB)

Plug cap assembly

Diagram Reference: 15

90464−08M02

Clamp

Diagram Reference: 16

97095−06012

Bolt(gh1)

Diagram Reference: 17

662−82519−00

Wire, earth lead

Diagram Reference: 19
