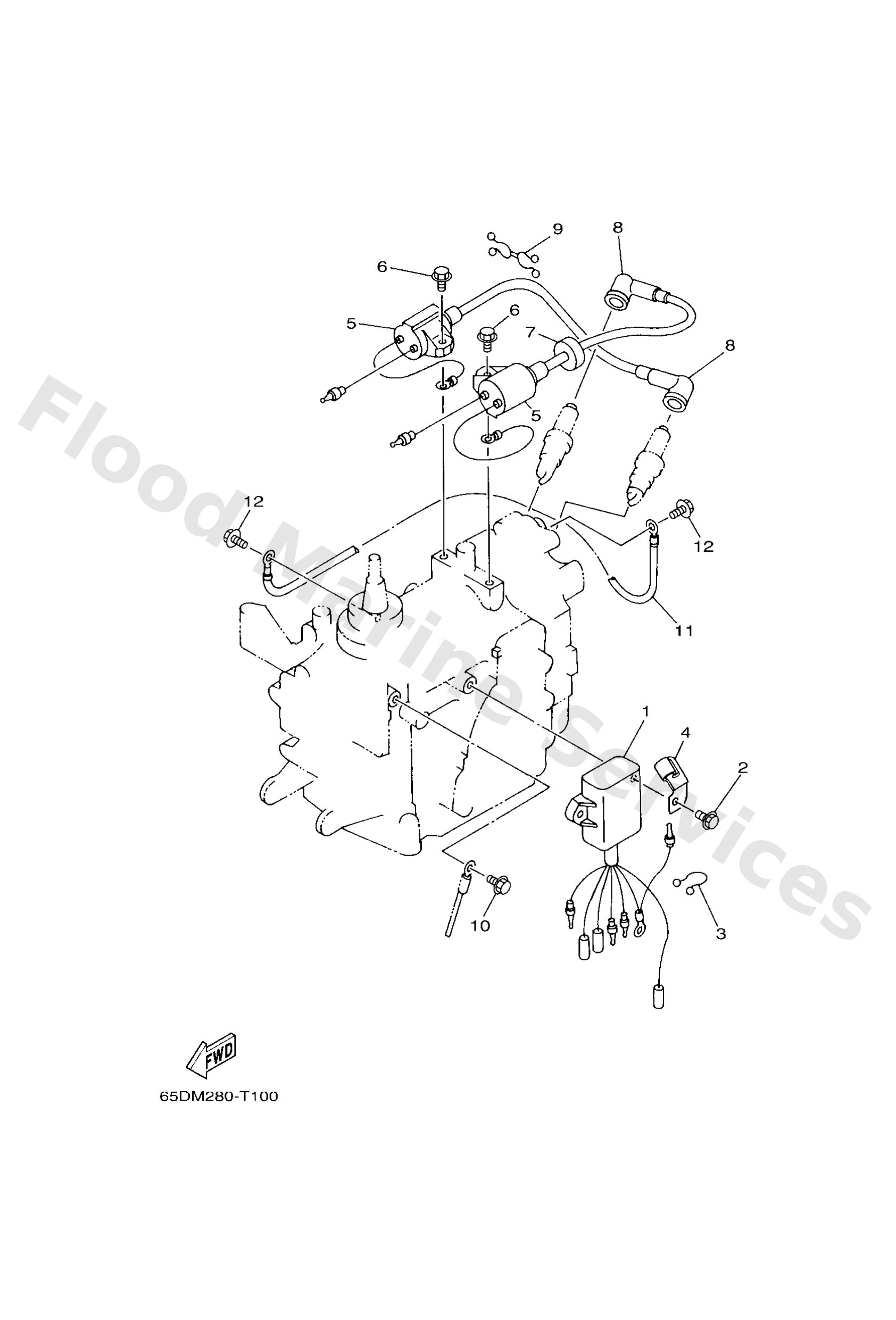

Parts List
C.d.i. unit assembly
Diagram Reference: 1
Bolt, hexagon w/w deep recess
Diagram Reference: 2
Clamp (3y2)
Diagram Reference: 3
Clamp(63v)
Diagram Reference: 4
Ignition coil assembly
Diagram Reference: 5
Bolt, hexagon w/w deep recess
Diagram Reference: 6
Grommet(656)
Diagram Reference: 7
Plug cap assembly
Diagram Reference: 8
Clamp
Diagram Reference: 9
Bolt, hexagon w/w deep recess
Diagram Reference: 10
Wire, earth lead
Diagram Reference: 11
