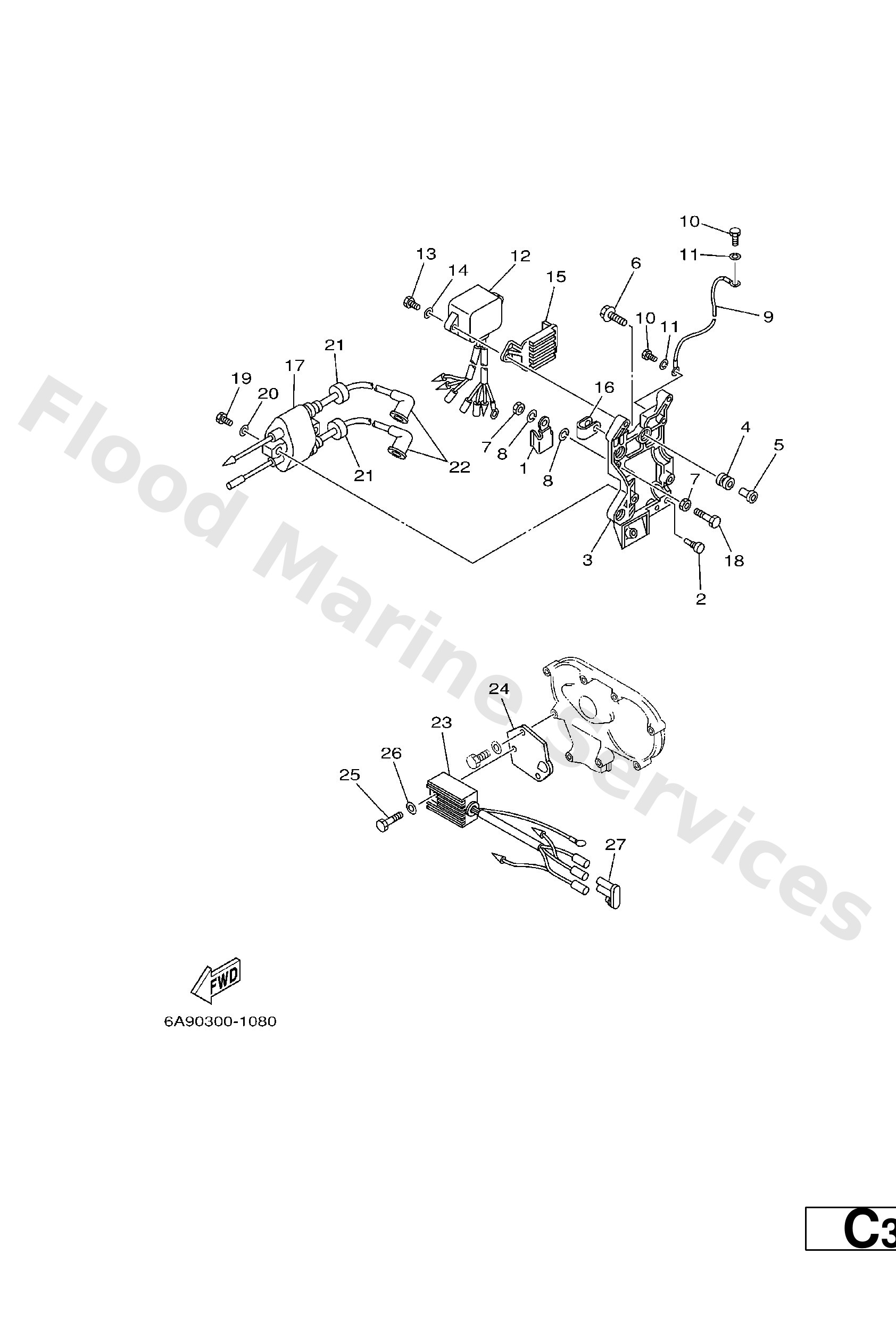

Diagram: ELECTRICAL

Diagram

Parts List

9046508M13
Clamp
Diagram Reference: 1
Get Part
689--85547--00
Damper
Diagram Reference: 2
Get Part
695855420094
Bracket
Diagram Reference: 3
Get Part
6A0--82317--00
Damper, ignition coil
Diagram Reference: 4
Get Part
624--42542--00
Collar
Diagram Reference: 5
Get Part
90119--06M88
Bolt, with washer
Diagram Reference: 6
Get Part
95380--06600
Nut(661)
Diagram Reference: 7
Get Part
92990--06100
Washer(6a1)
Diagram Reference: 8
Get Part
6898251900
8−
Diagram Reference: 9
Get Part
97090--06012
Bolt(gh1)
Diagram Reference: 10
Get Part
6958554011
C.d.i. unit assembly
Diagram Reference: 12
Get Part
97095--06025
Bolt
Diagram Reference: 13
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 14
Get Part
6898554801
Holder
Diagram Reference: 15
Get Part
90464--12M00
8−
Diagram Reference: 16
Get Part
680--85570--00
Ignition coil assembly
Diagram Reference: 17
Get Part
9709006016
8−
Diagram Reference: 18
Get Part
90480--25161
Grommet(656)
Diagram Reference: 21
Get Part
6G1--82370--21
Plug cap assembly
Diagram Reference: 22
Get Part
6J8--81960--00
Rectifier & regulator assembly
Diagram Reference: 23
Get Part
6958191500
8−
Diagram Reference: 24
Get Part
97095--06016
Bolt, hexagon deep recess
Diagram Reference: 25
Get Part
6E58258200
Cap 1
Diagram Reference: 27
Get Part
