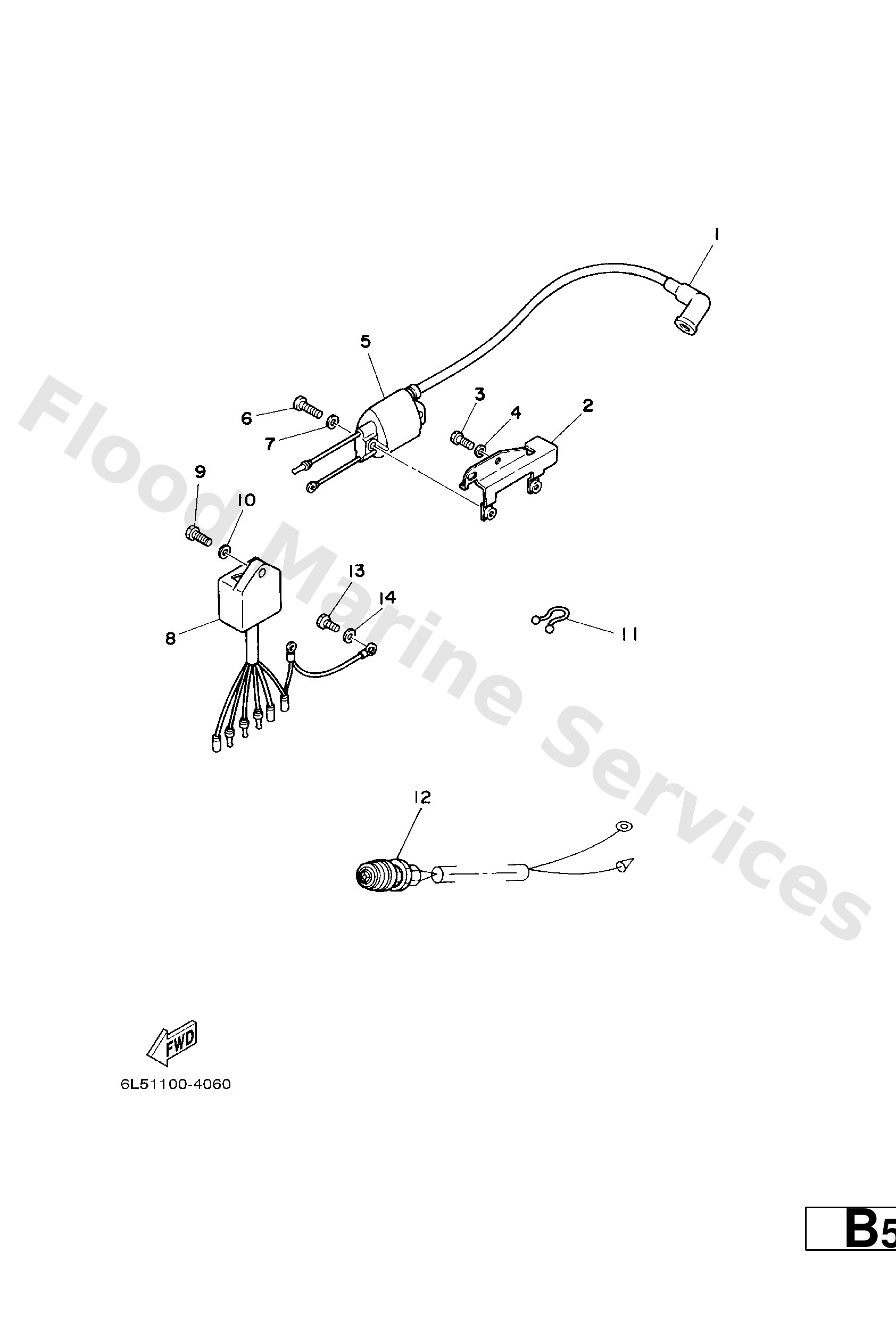

Diagram: ELECTRICAL

Diagram

Parts List

6G1−82370−21
Plug cap assembly
Diagram Reference: 1
Get Part
6L5−82316−00
Bracket, ignition coil
Diagram Reference: 2
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 3
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 4
Get Part
6L5−85570−N0
Ignition coil assembly
Diagram Reference: 5
Get Part
97880−06016
Screw pan head
Diagram Reference: 6
Get Part
92990−06600
Washer, plain (646)
Diagram Reference: 7
Get Part
6L5−85540−M0
C.d.i. unit assembly
Diagram Reference: 8
Get Part
90465−18147
Clamp
Diagram Reference: 11
Get Part
6L5−82550−00
Stop switch assembly
Diagram Reference: 12
Get Part
97090−06012
Bolt(gh1)
Diagram Reference: 13
Get Part
